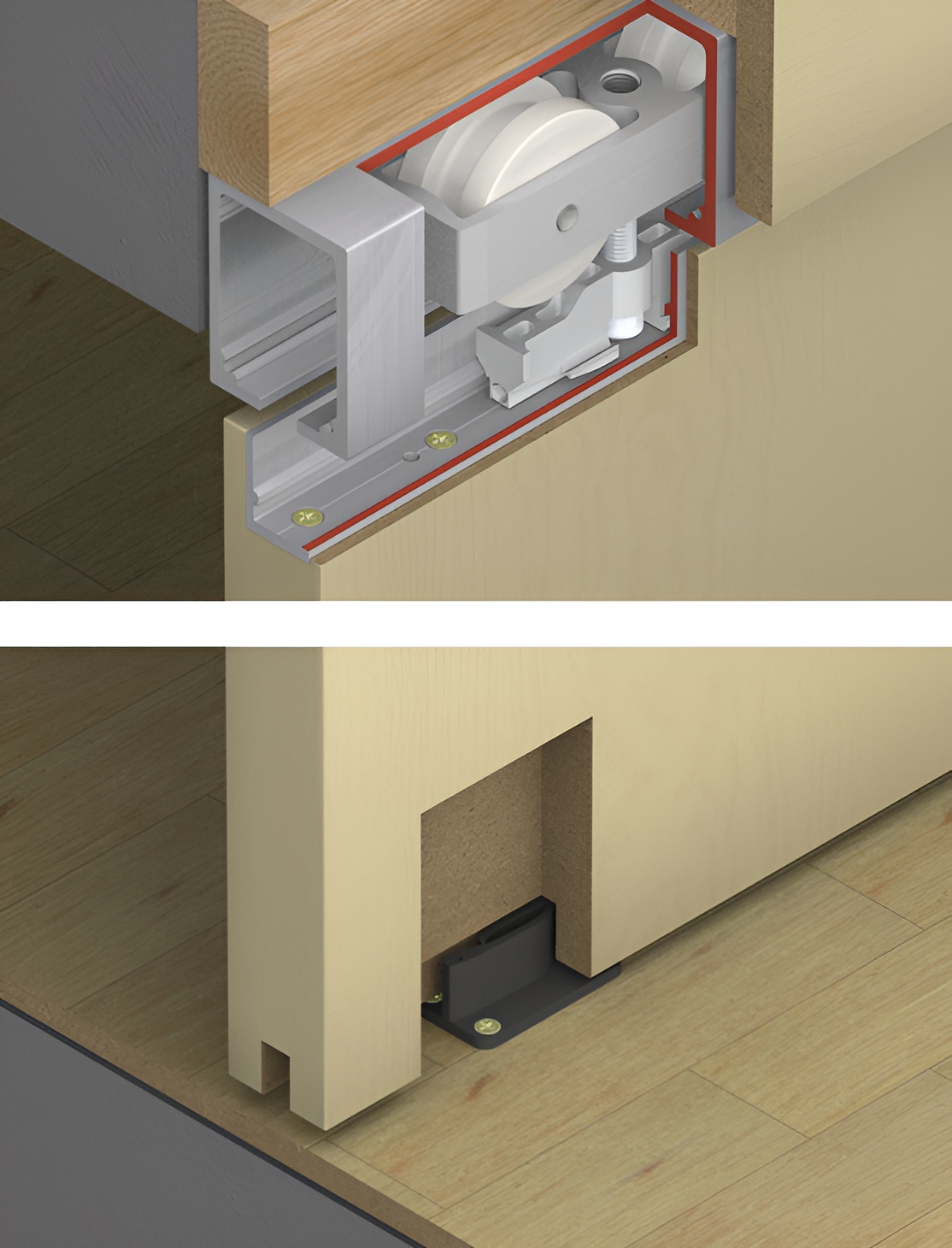

Hafele 942.56.005 HAWA Junior 250/B Sliding Door Hardware SetHafele 942.56.005 Sliding Door Hardware, HAWA Junior 250/B, set offers an innovative top-hung system designed for seamless sliding wood doors. Capable of supporting a door weight of up to 550 lbs, this robust hardware solution is ideal for both 1-leaf and 2-leaf configurations, allowing flexibility in your door design. The system features a smooth and quiet operation thanks to its rattle-free bottom guide suspension with a carrier profile. Enhancing usability, the adjustable retention spring in the track buffer ensures that doors close securely without slamming. With a maximum door height of 4,000 mm and width up to 3,000 mm, this system accommodates a variety of spaces and styles. Installation is straightforward, as the hardware can be mounted to the ceiling or wall, and the recessed support profile allows for a clean finish. Additionally, the included components-such as the running gears, support profiles with suspension carriages, and height adjustment spanner-make the setup process efficient. Certified in compliance with EN 1527:2013, the Hafele HAWA Junior 250/B is the perfect combination of durability and elegance for modern interiors, ensuring a reliable performance for years to come.
Sliding Door Hardware, HAWA Junior 250/B, set
Top Hung System, With 1 track buffer/1 wall buffer
Outstanding durability Rattle-free bottom guide Suspension with carrier profile Smooth quiet operation Door stop with adjustable retention spring
Attributes

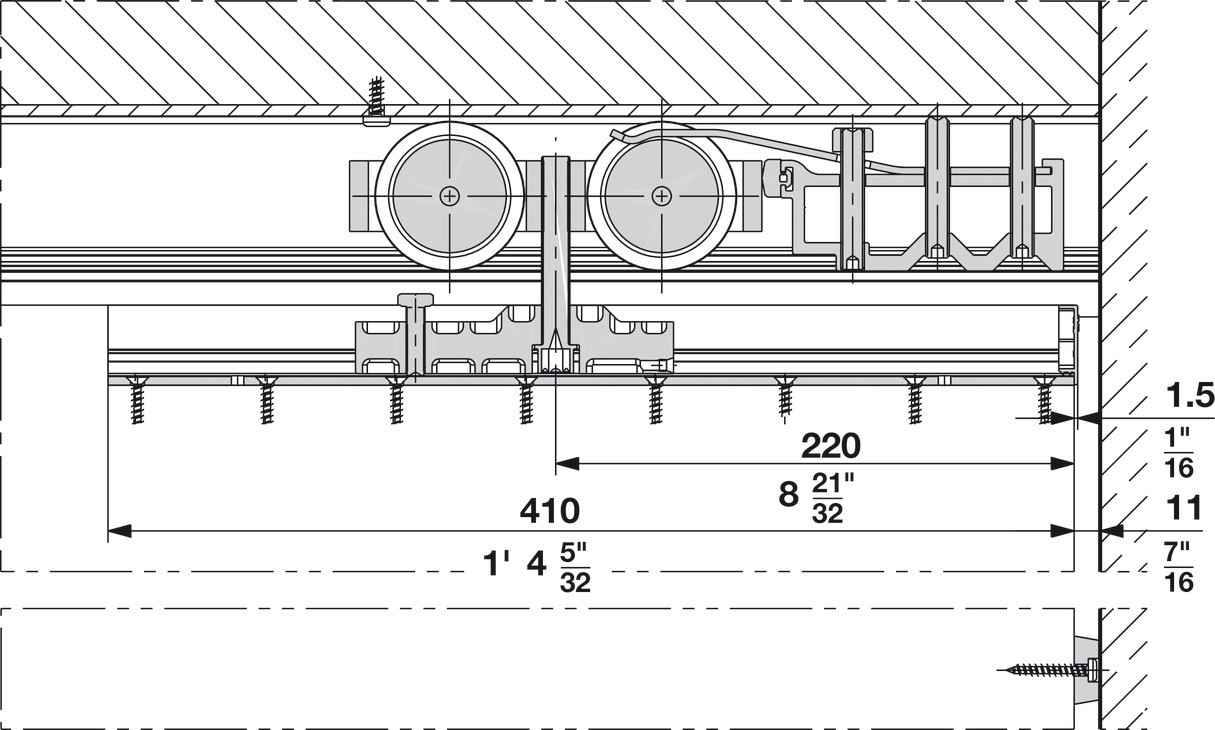

Adjustment facility: Track buffer with adjustable retaining spring
Area of application: For 1-leaf and 2-leaf sliding wood doors
Classification in compliance with EN 1527: -|6|3|-|1|0|-|1|3
Controller installation options: Ceiling installation, Wall mounting
Door processing: With recess
Door weight max.: 550 lbs
For door height: ≤4,000 mm
For door material: wood
For door thickness: 35 – 80 mm
For door thickness min.: 1 3/8"
For door weight: ≤250 kg
For door width: ≤3,000 mm
Height adjustment: ± 3/16"

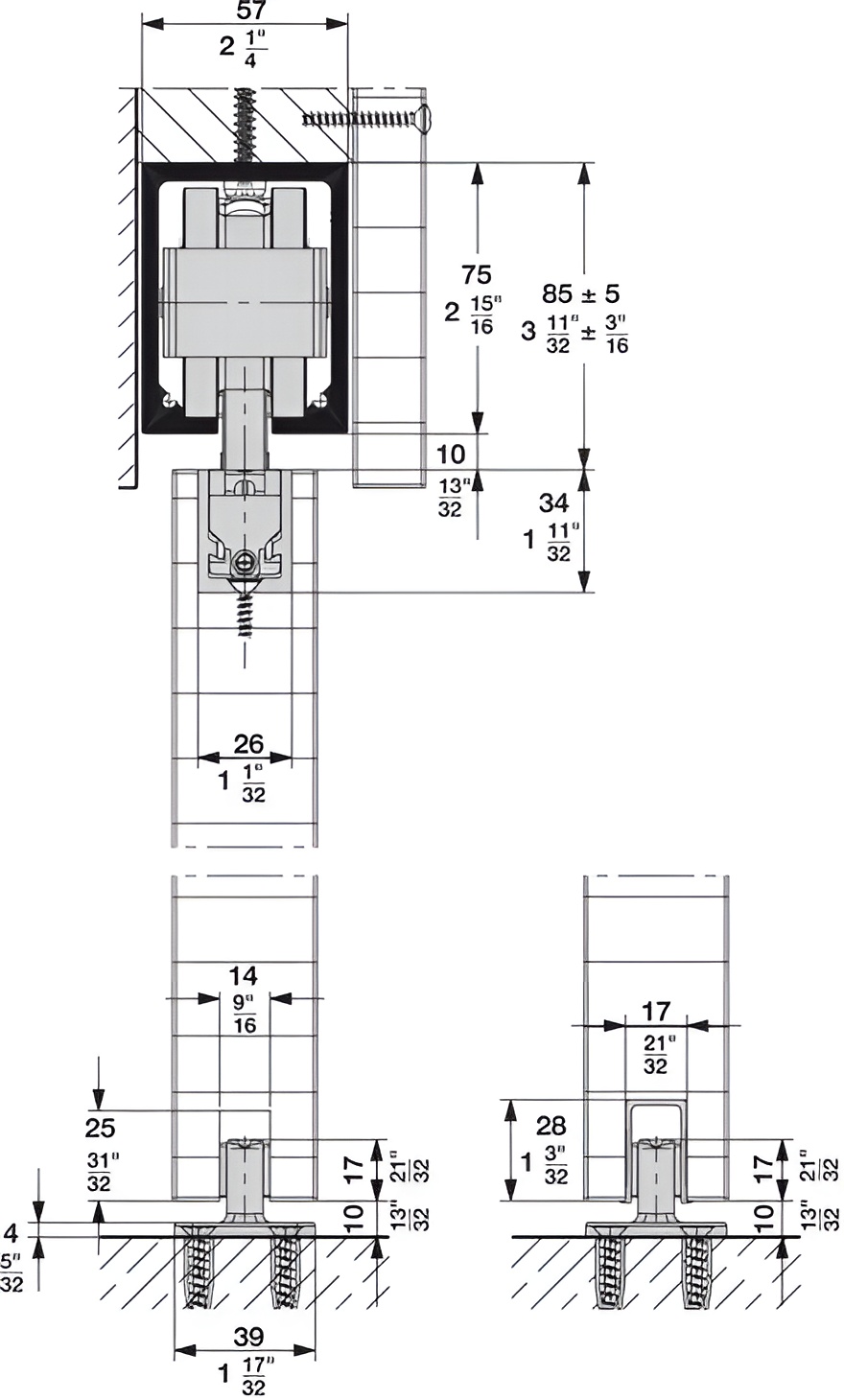

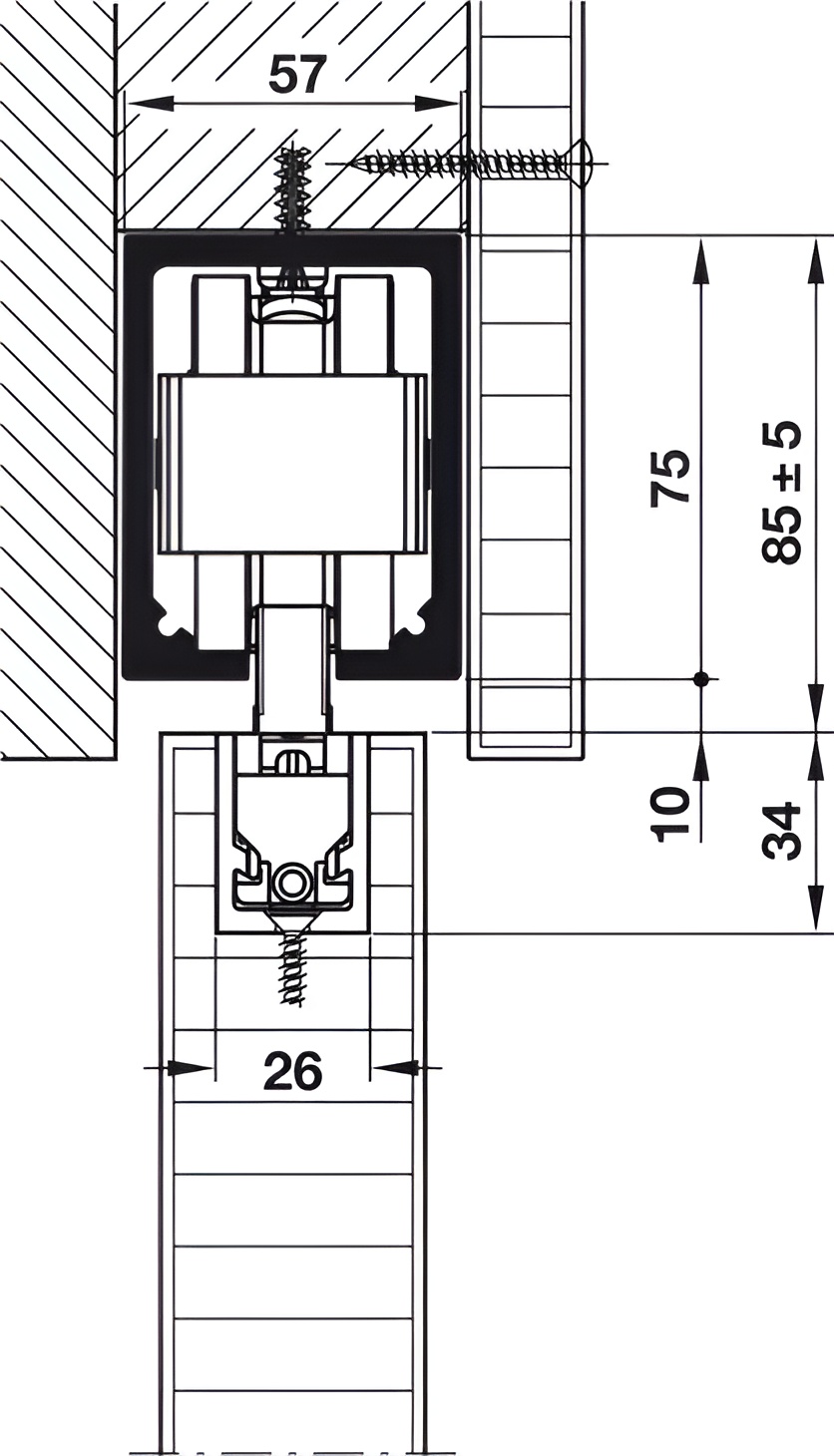

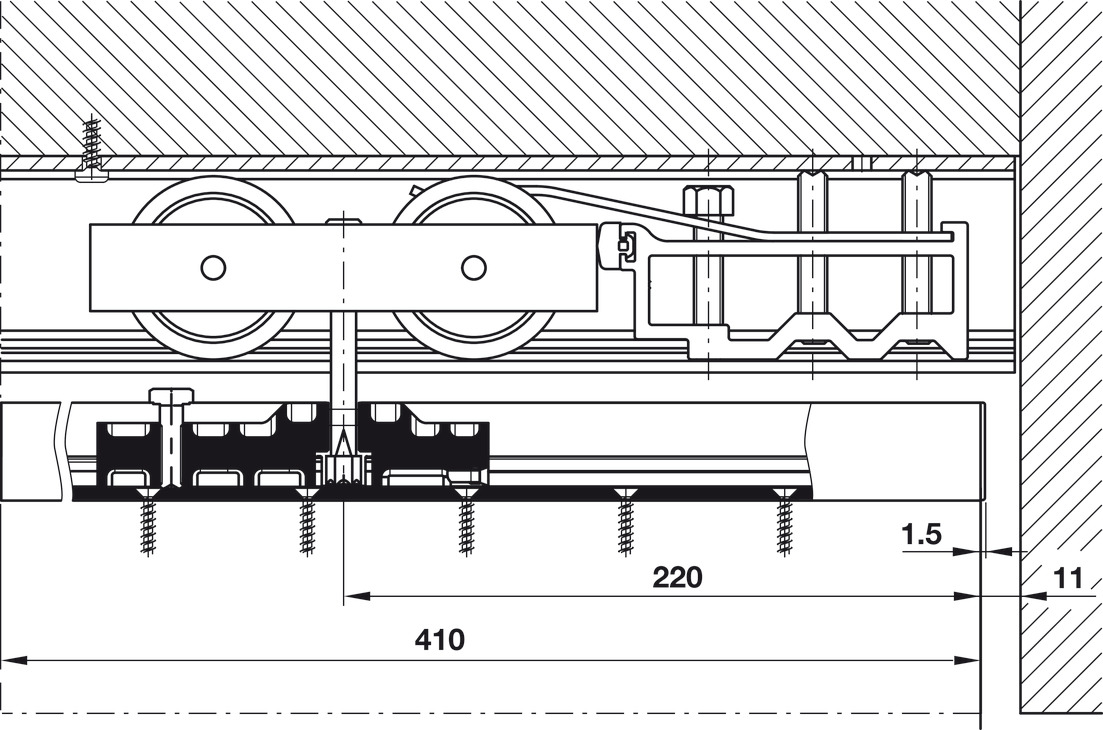

Installation: Suspension with recessed support profile
Load bearing capacity: ≤ 550 lbs.
Max. door weight: 550.00 lb
Model: 250 B
Number of doors: 1.00
Number of doors per system max.: 1 to 2
Order reference: Order 2 sets for 2-leaf sliding doors.
Running position: Top
Standard: Certified in compliance with EN 1527:2013
Suitable for: Minimum installation height

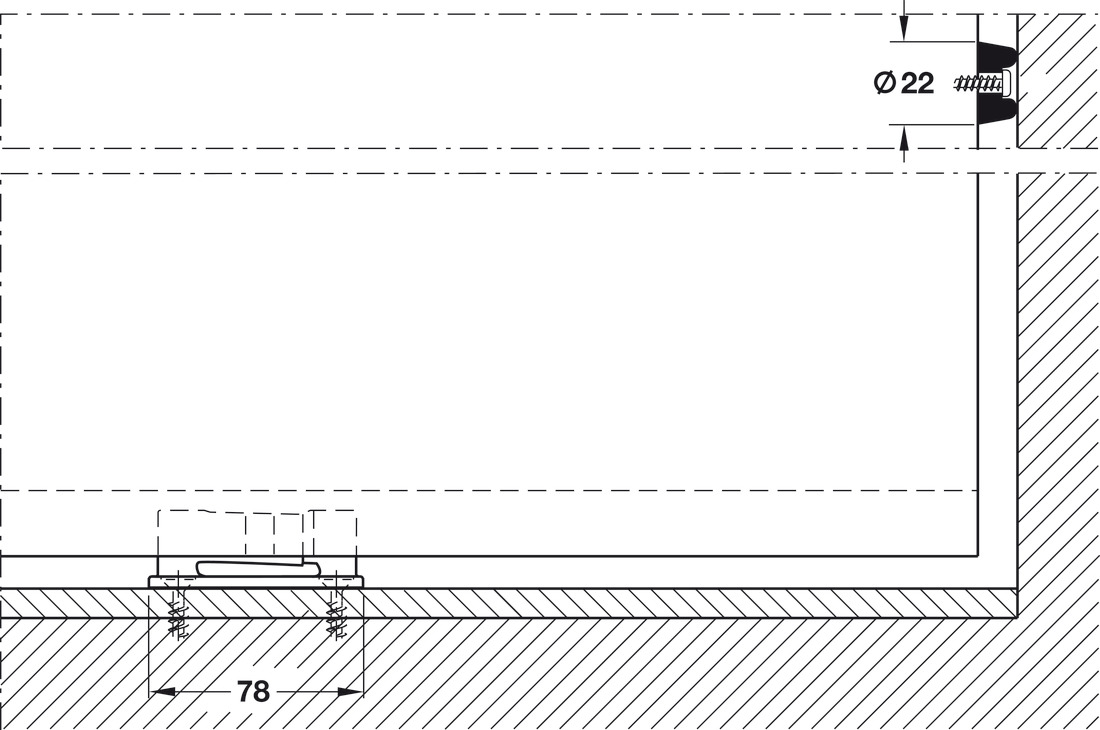

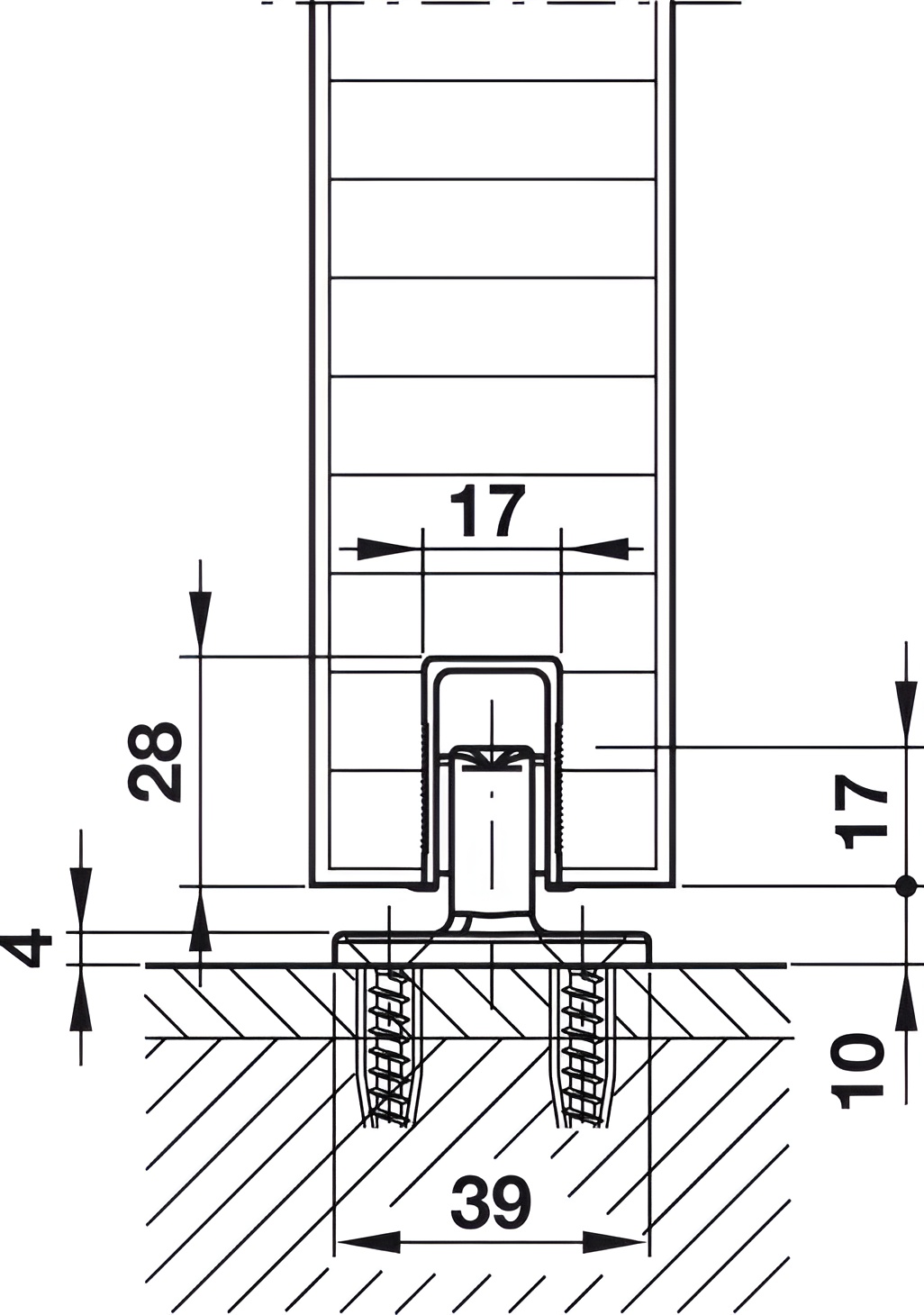

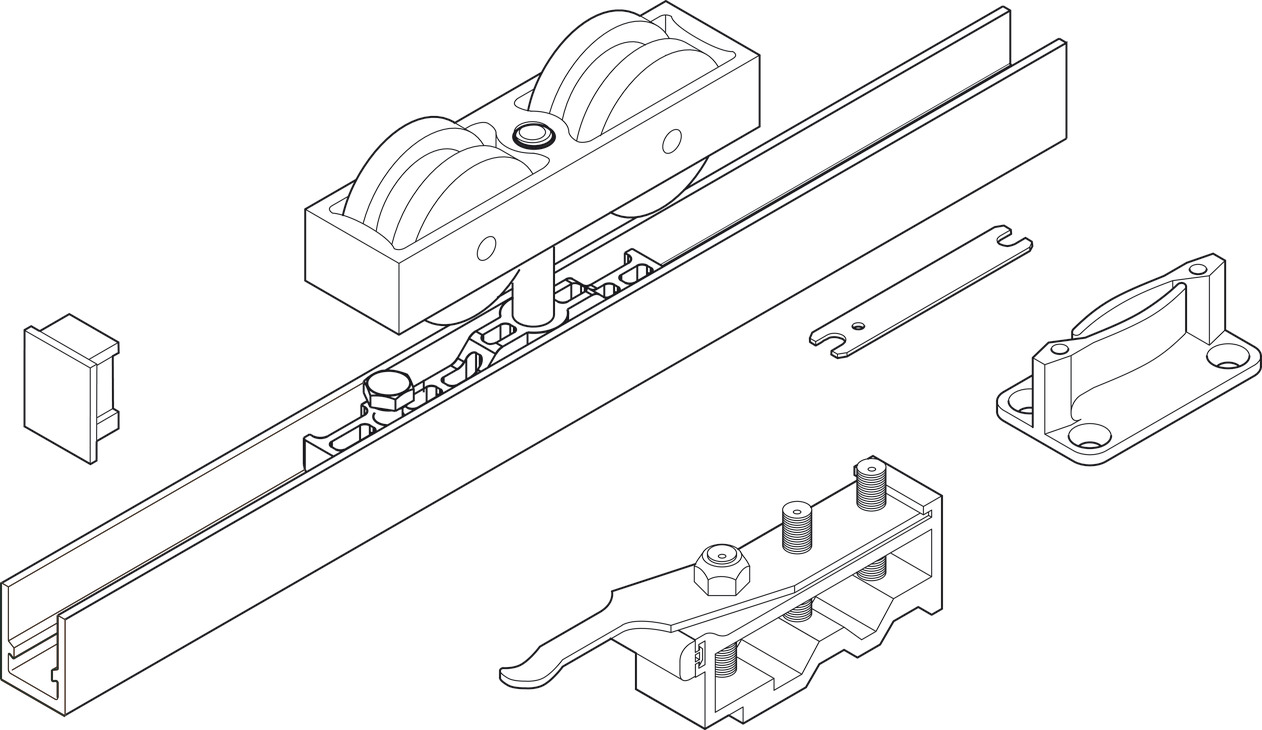

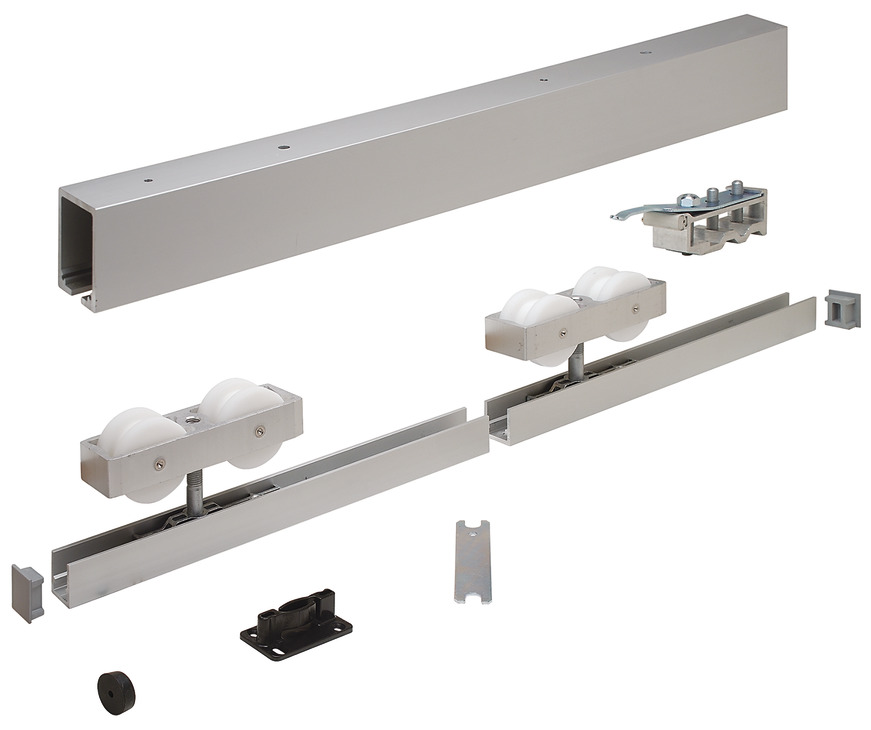

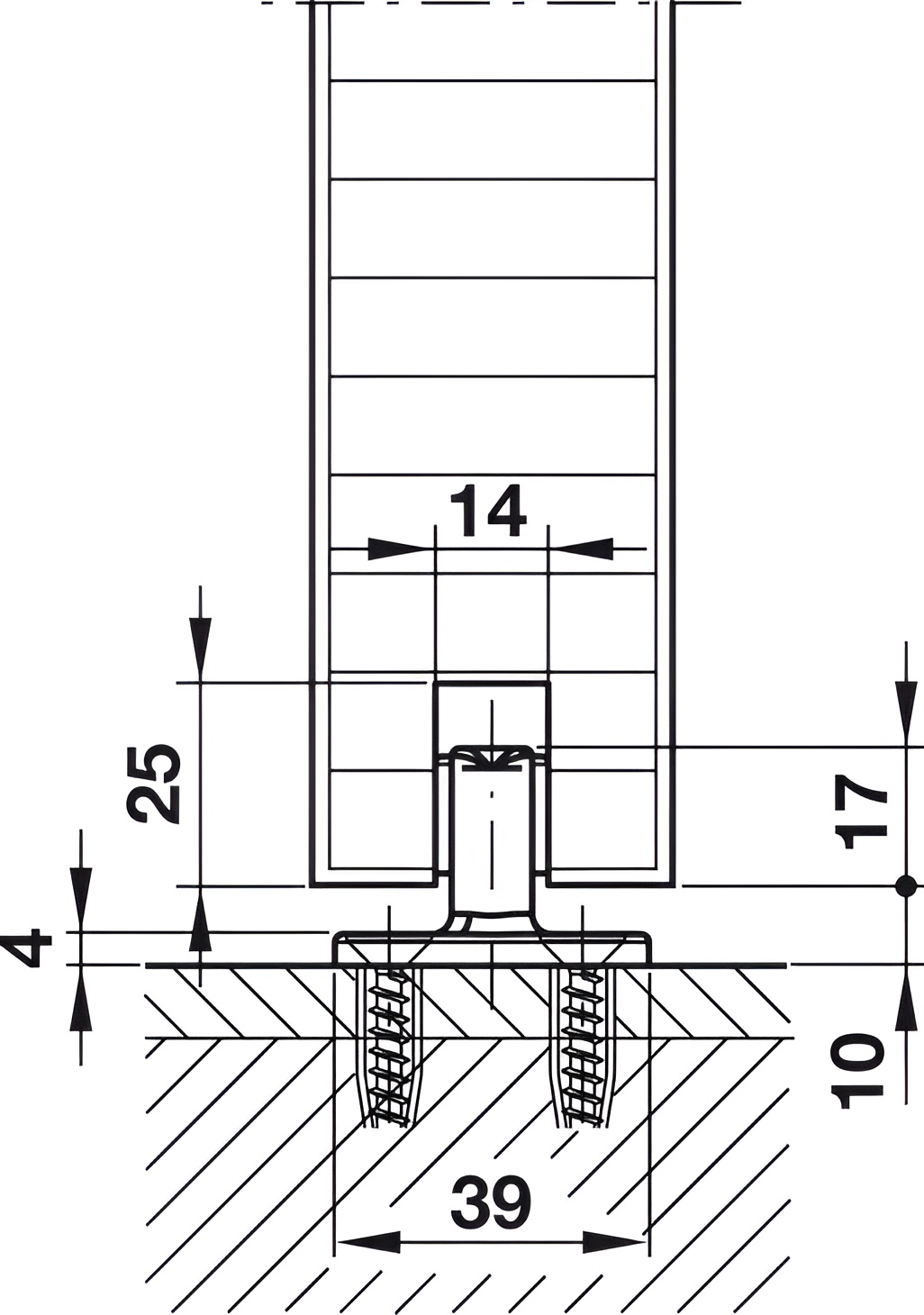

Supplied with: 2 running gears 2 support profiles with suspension carriages, M12 2 cover caps 2 track buffer with retaining spring 1 clear threshold floor guide 1 height adjustment spanner
Version: with 2 track buffers
