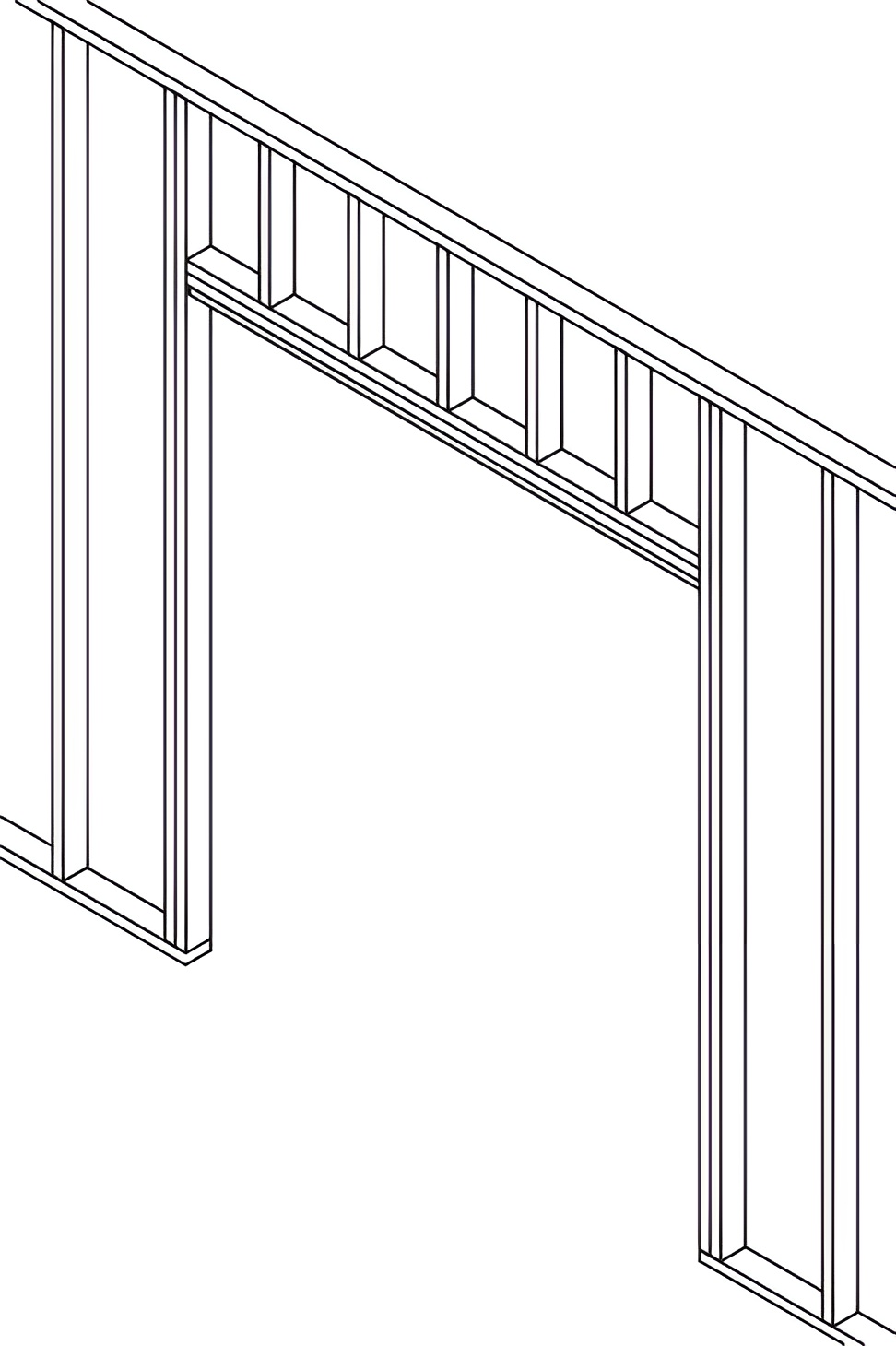

Hafele 942.72.004 Pocket Door Frame Set, Slido offers an innovative solution for maximizing space in tight rooms while eliminating clutter from wall and floor areas. Designed for 96" tall doors, this pocket door frame set features specially bent steel reinforced split studs that effectively prevent bowing of the pocket walls, ensuring structural integrity and long-lasting performance. Installation is simple and straightforward, which is ideal for building professionals seeking efficiency. Once installed, the system components remain serviceable, as the upper track can be removed without the need to open up the drywall, facilitating easy maintenance. This model accommodates door thicknesses up to 1 3/4" and widths of 40", with a robust load-bearing capacity ranging from 88 to 264 lbs., making it versatile for various applications. The package includes a comprehensive set of components: header assembly, front and back vertical studs with aspen wood strips, shoe plate, concealed end bracket, open end bracket, filler strip, upper track, and a screw pack. For bi-parting applications, simply order two sets. To complete the installation, sliding fitting sets need to be ordered separately, with options available in the Slido Classic series.
Pocket Door Frame Set, Slido
For 96" tall door
Area of application: Provides an effective way to save space in tight rooms and frees up typically unused wall and floor areas
For door thickness max.: 1 3/4"
For door width (inches): Max: 40"
Load bearing capacity: 88 - 264 lbs.
Max. door weight: 176.00 lb
Order reference: For bi-parting applications order 2 sets. The sliding fitting sets need to be ordered separately. Refer to the respective catalog pages for the Slido Classic 40-P, 60-P, 80-P, and 120-P.
Supplied with: Header assembly Front & back vertical stud with aspen wood strip Shoe plate Concealed end bracket Open end bracket Filler strip Upper track Screw pack
