Hafele 943.29.011 Hawa Variofold 80H Sliding Door FittingHafele 943.29.011 Sliding Door Fitting, Hawa Variofold 80 H, is expertly crafted for wooden folding sliding doors weighing up to 80 kg. This versatile system accommodates door widths ranging from 500 to 900 mm, making it ideal for various applications. The Basic Set includes a lower pivot without a guide channel, ensuring a streamlined installation process. Engineered for maximum efficiency, the Hawa Variofold 80 H features an anodized aluminum upper track and lower guide channel that provide durability and a sleek appearance. The dual running gear with ball bearings guarantees an exceptionally quiet and smooth operation, while minimal space is required in the stacking area. This system can support up to four doors, allowing for flexible configurations in spaces up to 12.00 m wide when installed on both sides. Height adjustment of ±3 mm ensures precise alignment, accommodating door heights of up to 3,500 mm. The system is designed for doors with a thickness of 35 to 45 mm, ensuring compatibility with various wooden materials. Supplied with essential components including a top pivot bearing and adjustable folding/access door catch, the Hafele Hawa Variofold 80 H promises both functionality and style for any modern interior.
Sliding door fitting, Hawa Variofold 80 H
for wooden folding sliding doors, for door weights up to 80 kg, for door widths 500-900 mm, with height adjustment, Basic Set with Lower Pivot without Guide Channel

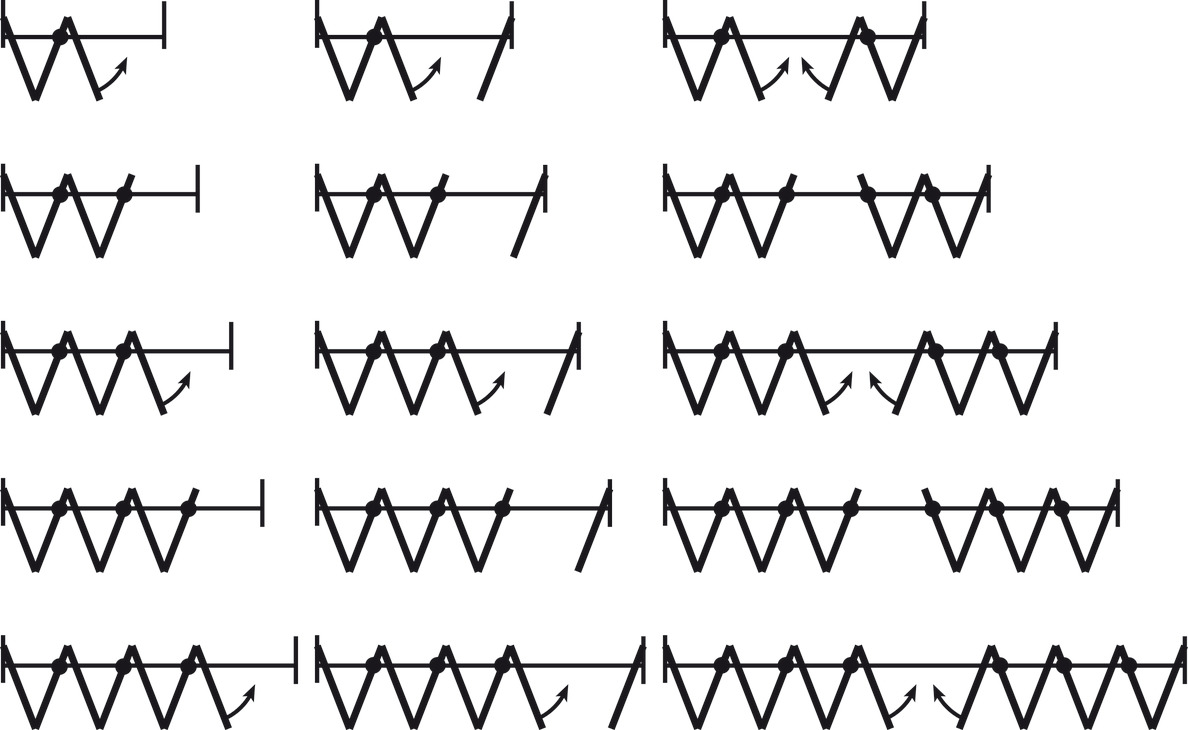

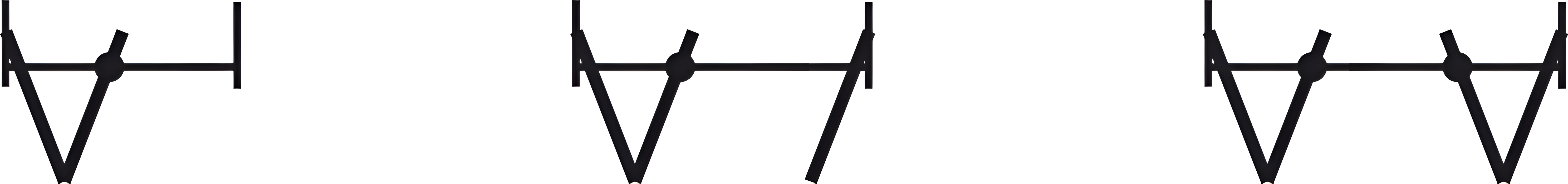

Folding/sliding hardware for wall partitions For 2 – 7 folding panels Upper track made out of anodized aluminum Lower guide channel made out of anodized aluminum Dual running gear with ball bearings Minimal space required in stacking area Extremely quiet and smooth operation
Bottom guide tracks must be used for Hawa Variofold systems. However, for systems with 2 doors on both sides and up to a system width of max. 3.6 m the bottom guide track is not required.
Attributes
Adjustment facility: Height adjustment facility: -3 – 3 mm, Height adjustable ± 3 mm (±1/8")
Area of application: Basic set
Controller installation options: Ceiling installation
Features: Without guide, With pivot bearing
For door height: ≤3,500 mm
For door material: wood
For door thickness: 35 – 45 mm
For door thickness min.: 1 3/8"
For door weight: ≤80 kg
For door width: 500 – 900 mm
For door width (inches): Min: 19 11/16 - 35 7/16"
Load bearing capacity: For Panel: 176 lbs.
Material/finish: Aluminium
Max. door weight: 176.00 lb
Number of doors per system max.: >4
Running system: Concealed in track
Set type: Basic set
Spring: Corner suspension
Supplied with: 1 top pivot bearing 1 folding/access door catch, adjustable 1 running gear with support carriage and screw M104, support profiles, pre-drilled 1 pressure bearing sleeve, with follower 4 cover caps for support profile 1 height adjustment spanner 2 spanner for suspension carriage
Support flange connection: brackets
System width 1-sided: 6.00 m
System width 2-sided: 12.00 m
Version: clear threshold guide, Hinge with heavy duty bearings
Width (inch): Panel: 19 11/16" - 35 7/16"
