Hafele 950.10.734 Retractable Door Seal, Planet SN RD offers a sophisticated solution for sliding doors that enhances both functionality and aesthetics. Measuring 1,050 mm in length, this door seal is designed specifically for left-hand mounting and accommodates a floor gap of 7–16 mm. The innovative release force mechanism requires only 1 Nm of force per running meter of seal, ensuring smooth operation without the risk of the door bouncing back. Crafted with a combination of materials, including a bright aluminum carrier, a gray silicone sealing profile, and a black plastic floor guide with an aluminum retaining plate, this door seal is both durable and visually appealing. The soundproofing level reaches an impressive 44 dB when installed with a 7 mm floor gap, making it ideal for noise-sensitive environments. Installation is straightforward, with full mortice fitting options and adjustable sealing height via a SW 3 hex key. Supplied with two mounting brackets and three floor guides to accommodate varying floor gaps, this retractable door seal is a practical choice for sliding doors without locks, ensuring a seamless and effective seal. Individual lengths up to 6,000 mm can be ordered upon request, providing versatility for various applications.
Retractable door seal, Planet SN RD
For sliding doors, length: 1,050 mm left hand
Area of application: For sliding doors without lock
Color: Carrier: Bright, Sealing profile: Gray Floor guide: Black
Color/finish: Carrier: Bright,Sealing profile: GrayFloor guide: Black
Direction: DIN left
Installation: Retractable door seal: For full mortice fitting with mounting brackets (flush or recessed), Floor gap 7–16 mm Adjustment of sealing height on release pin with SW 3 hex key Floor guide: With retaining plate for screw fixing
Length: 1,050.00 mm
Length (inch): 41 11/32"
Material: Carrier: Aluminum, sealing profile: Silicone, floor guide: Plastic with aluminum retaining plate
Model: SN RD
Model series: KG-S
Mounting: DIN left
Order reference: Individual lengths up to 6,000 mm available on request.
Product type: Retractable door seal
Sealing height max.: 16.00 mm
Soundproofing level: 44 dB with floor gap 7 mm
Supplied with: 1 sliding door seal 2 mounting brackets with screws 3 floor guides for floor gap 7–10/10–13/13–16 mm

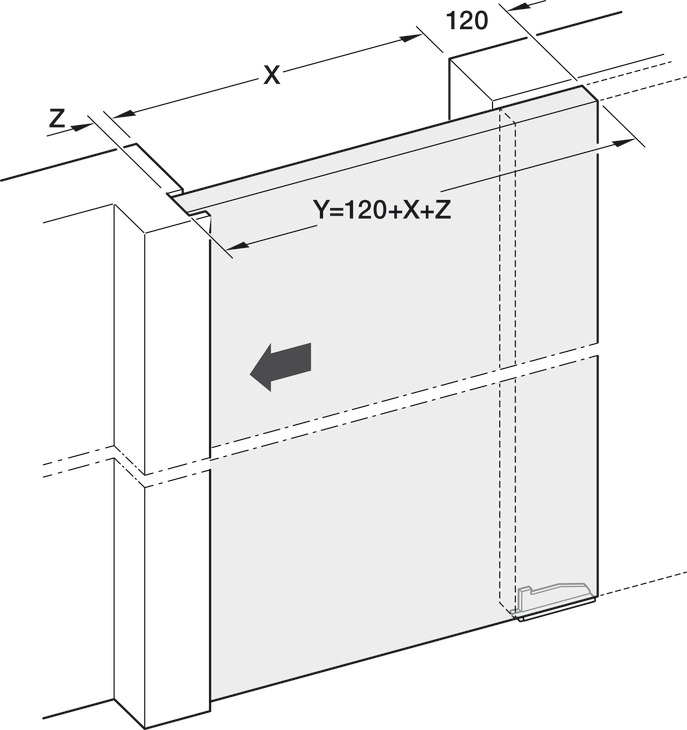

Version: Opening width x + z: 805 - 930 mm (31 11/16" - 36 5/8")
