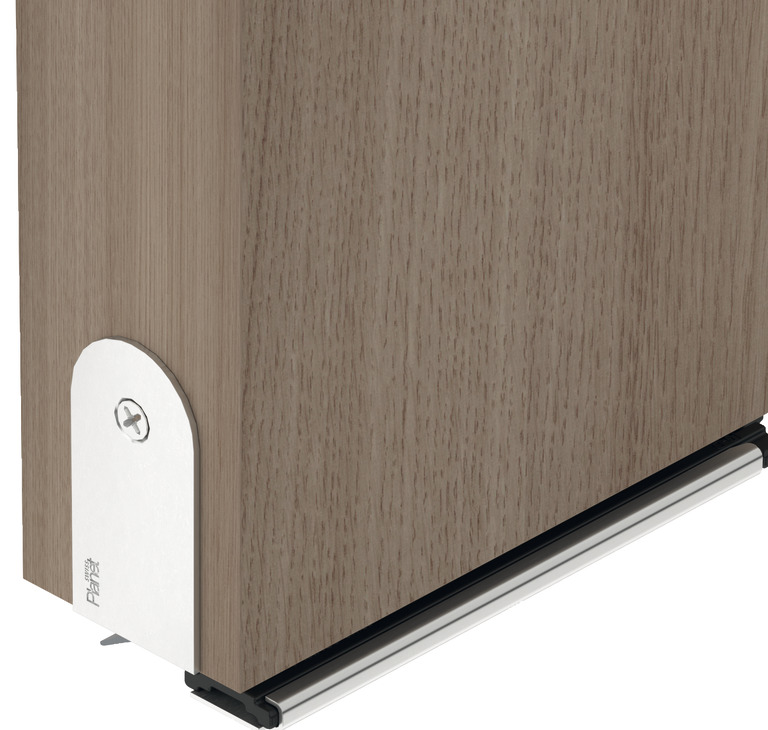

Hafele 950.10.742 Retractable door seal, Planet SN RD, is an innovative solution designed for sliding doors without locks. This 800 mm right-hand seal features a remarkably low release force of only 1 Nm per running meter, ensuring the door operates smoothly without bouncing back. Crafted from high-quality materials, including an aluminum carrier and a silicone sealing profile, this door seal not only delivers durability but also effective soundproofing, achieving a level of 44 dB with a floor gap of 7 mm. The installation is straightforward, accommodating full mortice fitting with mounting brackets for both flush and recessed applications. It is designed for floor gaps ranging from 7 to 16 mm, with the sealing height adjustable using a SW 3 hex key. The floor guide, made from plastic with an aluminum retaining plate, is included for easy screw fixing. In terms of aesthetics, the carrier is bright, the sealing profile is gray, and the floor guide is black, ensuring a pleasing look that complements modern interiors. For versatility, individual lengths up to 6,000 mm are available upon request, making this retractable door seal an ideal choice for various projects.
Retractable door seal, Planet SN RD
For sliding doors, length: 800 mm right hand
Area of application: For sliding doors without lock
Color: Carrier: Bright, Sealing profile: Gray Floor guide: Black
Color/finish: Carrier: Bright,Sealing profile: GrayFloor guide: Black
Direction: DIN right

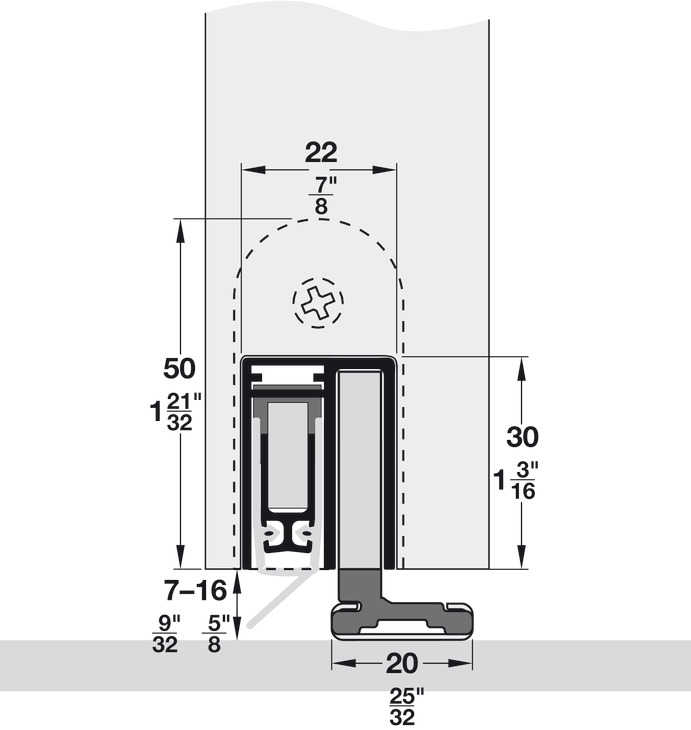

Installation: Retractable door seal: For full mortice fitting with mounting brackets (flush or recessed), Floor gap 7–16 mm Adjustment of sealing height on release pin with SW 3 hex key Floor guide: With retaining plate for screw fixing
Length: 800.00 mm
Length (inch): 31 1/2"

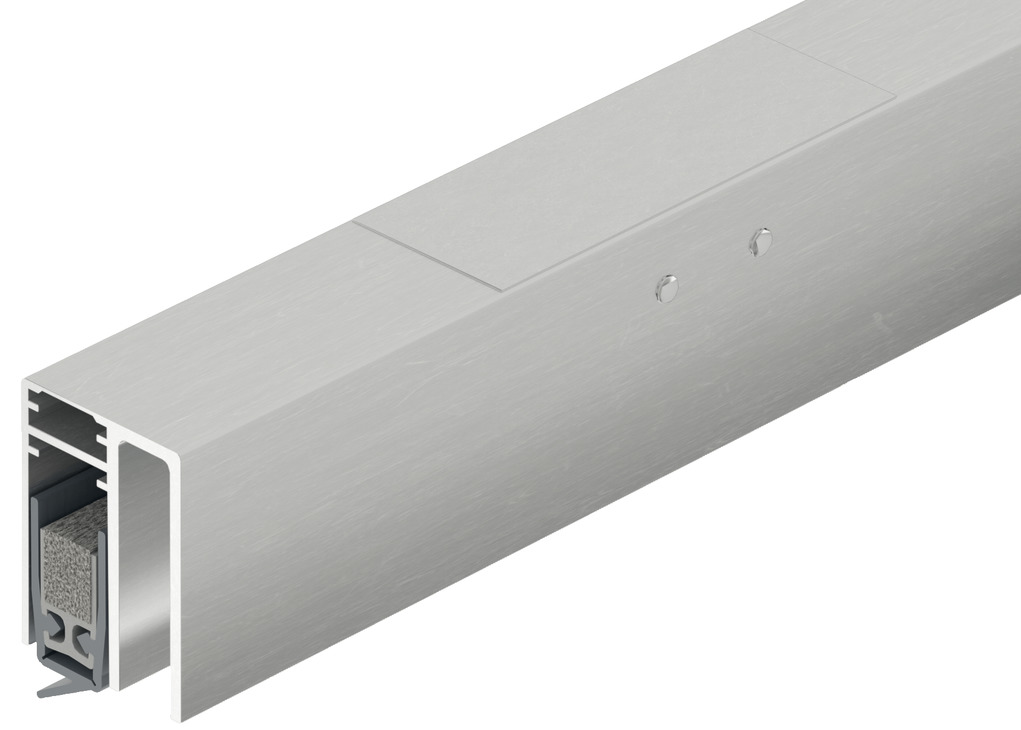

Material: Carrier: Aluminum, sealing profile: Silicone, floor guide: Plastic with aluminum retaining plate
Model: SN RD
Model series: KG-S
Mounting: DIN right
Order reference: Individual lengths up to 6,000 mm available on request.
Product type: Retractable door seal
Sealing height max.: 16.00 mm
Soundproofing level: 44 dB with floor gap 7 mm

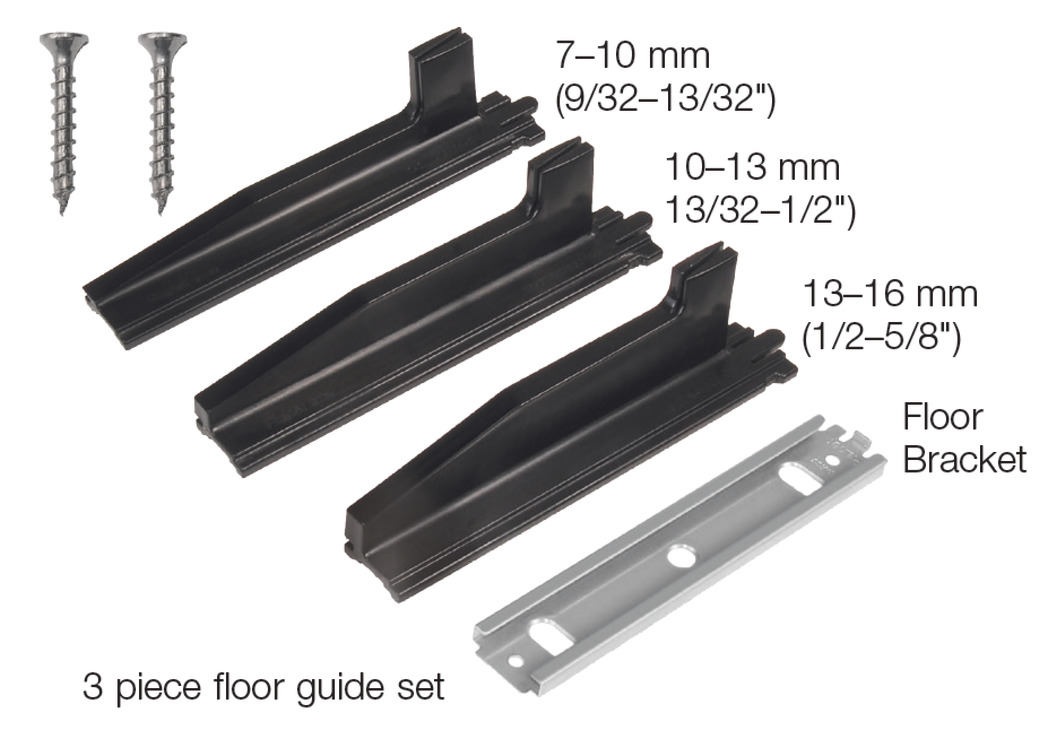

Supplied with: 1 sliding door seal 2 mounting brackets with screws 3 floor guides for floor gap 7–10/10–13/13–16 mm

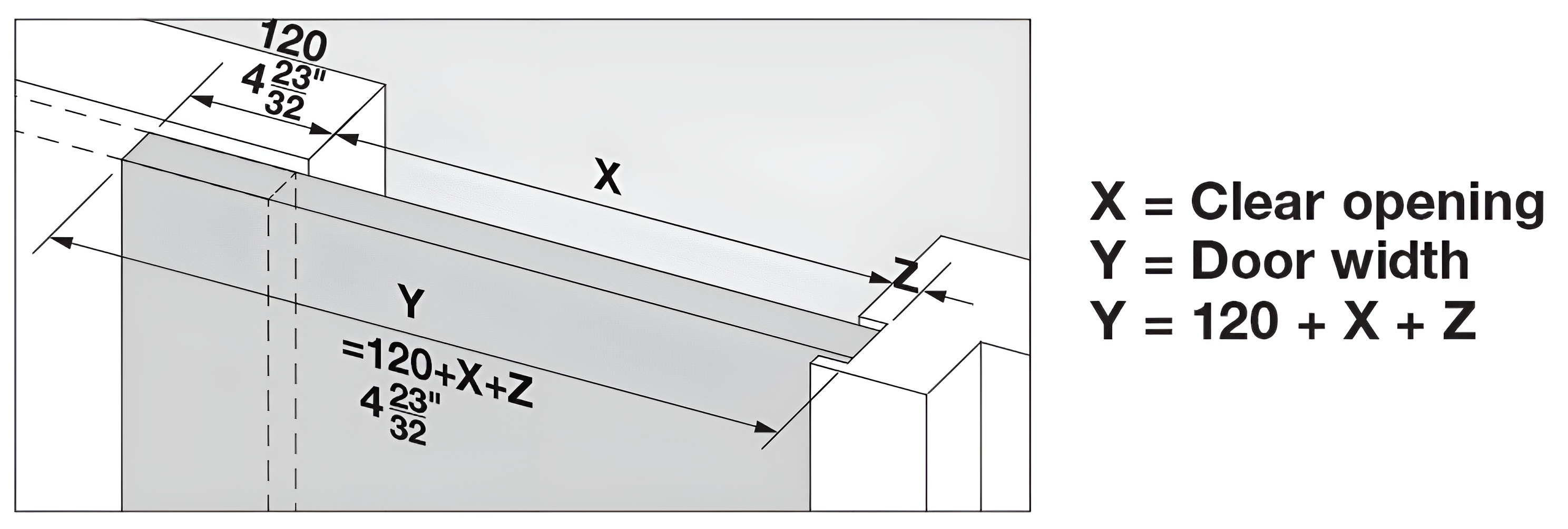

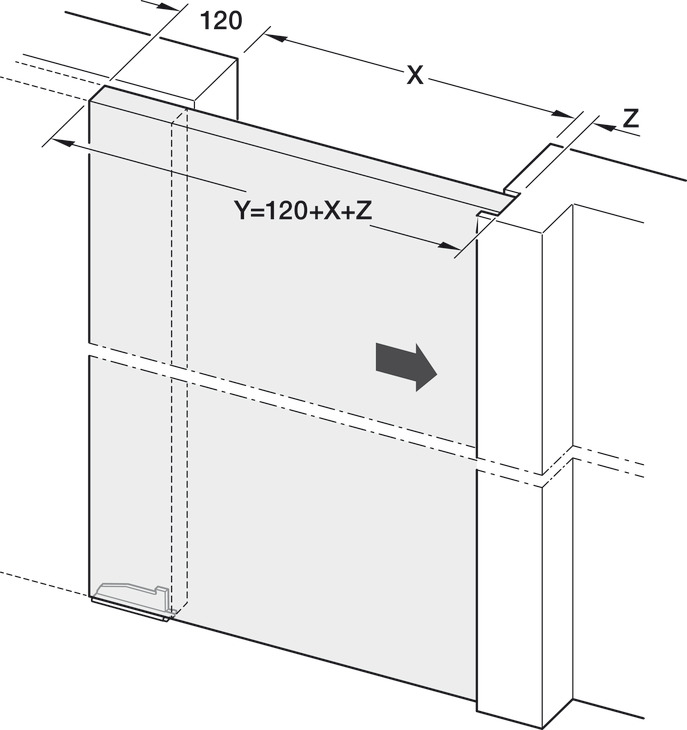

Version: Opening width x + z: 555 - 680 mm (21 7/8" - 26 3/4")
