Hager 1252 4X4 US26 Standard Weight Spring Hinge

Hager 1252 4X4 US26 SPRING HINGE, STD WEIGHT offers a reliable solution for automatic door closing in various environments, including hotels, motels, institutions, and commercial buildings. This full mortise spring hinge is constructed from durable steel with a polished silver finish that meets stringent ANSI and BHMA standards. Measuring 4 inches by 4 inches, it features 5/8-inch round corners and is designed for both single acting reverse action and half surface applications. Engineered for versatility, the Hager 1252 can be combined with ball bearing hinges to accommodate different usage frequencies and door/frame types. Its standard weight allows for smooth operation, making it suitable for high-traffic areas. This hinge also boasts a fire rating of 3 hours, ensuring safety compliance in critical applications. Additionally, Hager provides an option for antimicrobial protection in its stainless steel variants, preventing the growth of bacteria and fungi. With three knuckles for increased stability, this hinge is ideal for commercial installations. Hager backs this product with a one-year limited warranty, underscoring its commitment to quality and performance. Enhance your door hardware with the Hager 1252 spring hinge for dependable function and aesthetic appeal.

SPRINGE HINGE, STD WEIGHT

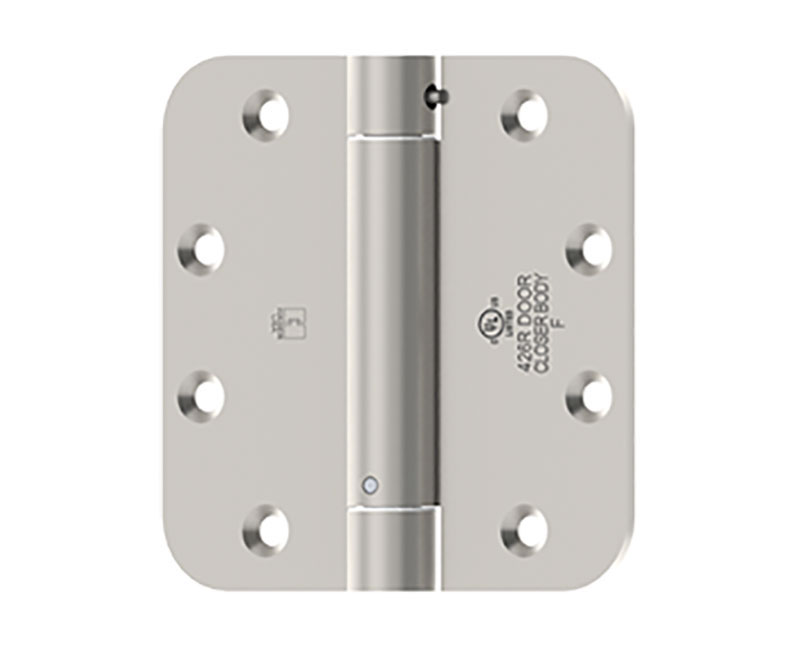

Full Mortise Spring Hinge, Standard Weight, 4" by 4", Steel, 5/8" Round Corners, Bright Chromium Plated Finish

Spring hinges are used for automatic closing of a door. They meet codes for hotels, motels, institutions and commercial buildings. For maximum versatility use all spring hinge with combination with ball bearing hinges.

Single acting reverse action and single acting half surface spring hinges are available in steel.

For automatic opening or closing of doors, single acting full mortise spring hinges are available in steel or in stainless steel with stainless steel components.

• OPERATION Hager hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge application.
• Antimicrobial Protection Hager offers an option of antimicrobial protection for the full line of stainless steel architectural grade butt hinges to prevent growth of bacteria and fungi.
• Finishes: Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.

Resources

• 1303 DBL ACT Spring Hinge Instruction Sheet
• Reverse Acting Spring Hinges 1257, 1258, 1259 Instruction Sheet
• Spring Hinge Series: 1150, 1250, 1750 Instruction Sheet
• Spring Hinge Series: EC1105 Instruction Sheet
