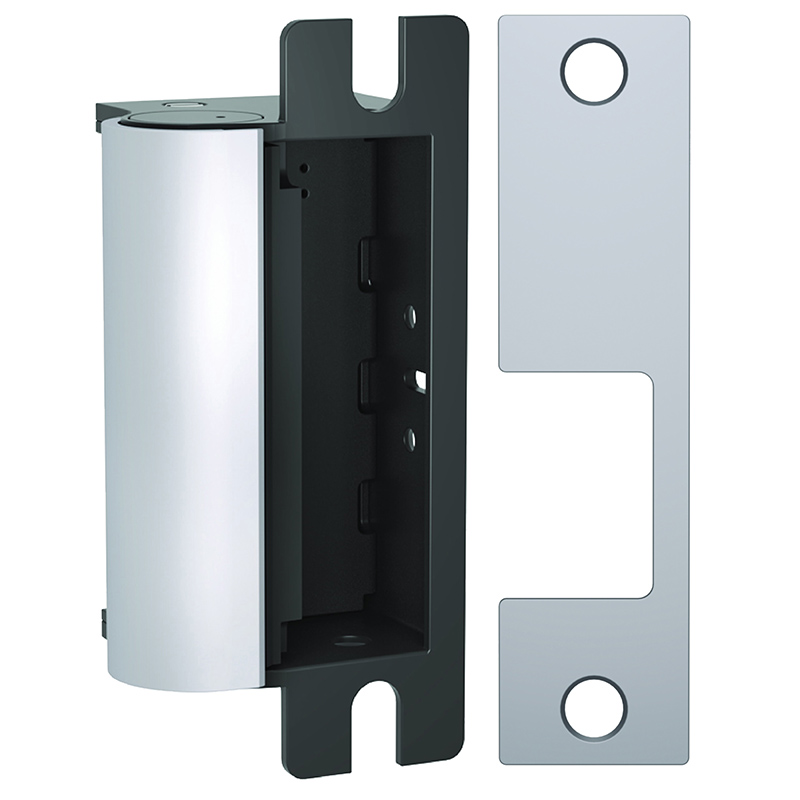

HES 1006-KM-630 Fail Secure Electric Strike

HES 1006-KM-630 Electric Strike Fail Secure offers unparalleled strength and versatility for your security needs. Designed with a dual interlocking plunger mechanism, this electric strike is constructed from heavy-duty satin stainless steel, ensuring it meets the highest standards for durability. It boasts an impressive static strength of 2,500 lbs. and dynamic strength of 350 ft-lbs., making it a reliable choice for any commercial application. Field-selectable between 12 or 24VDC, the 1006 series provides seamless integration into a variety of locking systems that fit within ANSI 4-7/8" strike plates. With a remarkable endurance rating of over 1,000,000 cycles, this fail secure strike is built to last, providing peace of mind for users. It accommodates up to a 1" deadbolt and features a tamper-resistant design, enhancing security. Installation is straightforward, thanks to its non-handed configuration, plug-in connector, and included full keeper shims for horizontal adjustment. Optional features, including fail safe and various monitoring options, add flexibility to your security setup. Available in multiple finishes, including the popular satin stainless steel, the HES 1006-KM-630 Electric Strike is a top-tier solution for both metal and wood frame applications.

Electric Strike Fail Secure

ELECSTK KIT 12/24DC NFS 630 ELECTRIC STRIKE WITH KM OPT 12 OR 24VDC FIELD SELECTABLE FAIL SECURE SATIN STAINLESS STEEL

With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate.

The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

Frame application

• Metal
• Wood

Electrical

• .45 Amps at 12VDC* continuous duty
• .25 Amps at 24VDC* continuous duty
• *Note: DC must be well filtered with ripple less than 1 volt RMS.

Standard Features

• Stainless steel construction
• Tamper resistant
• Static strength 2,500 lbs. (fail secure)
• Dynamic strength 350 ft-lbs. (fail secure)
• Endurance 1,000,000 cycles
• Fail secure (standard)
• Dual voltage 12 or 24VDC continuous duty
• Non-handed
• Internally mounted solenoid
• Accommodates up to 1" deadbolt
• Plug-in connector
• Full keeper shims for horizontal adjustment
• Trim enhancer
• Five year limited warranty

Optional Features

• Fail Safe
• LBM - Latchbolt monitor
• LBSM - Latchbolt strike monitor
• 27 interchangeable faceplate options (monitor switches may not work with all faceplate options)

Finishes

• 630 - Satin stainless steel
• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 613 - Bronze toned
• 629 - Bright stainless steel
• BLK - Black
• *Complete Pacs are only available in the 630 finish
