HES 1006CAS-F-630 Electric Strike Kit Fail Safe offers unparalleled security and versatility for your access control needs. Designed as a Grade 1 electric strike specifically for deadbolt locks, this fail-safe unit includes both ND and NM faceplates and is finished in a sleek satin stainless steel. With its robust dual interlocking plunger design and heavy-duty stainless steel construction, the 1006 series stands out as the strongest electric strike on the market. Engineered to exceed industry standards, the 1006 features an impressive static strength of 3,000 lbs. and dynamic strength of 350 ft-lbs., ensuring reliable performance under pressure. Tested for over 1,000,000 cycles, this strike is built to last. It is compatible with both metal and wood frames and accommodates up to a 1" deadbolt, ensuring a perfect fit for various installations. The electric strike operates at dual voltage-12 or 24VDC-drawing .45 Amps and .25 Amps, respectively, allowing for flexible electrical configurations. Additional features include tamper resistance, a plug-in connector, and full keeper shims for horizontal adjustment. With a five-year limited warranty, the HES 1006CAS-F-630 is a secure and dependable choice for commercial applications.
Electric Strike Kit Fail Safe

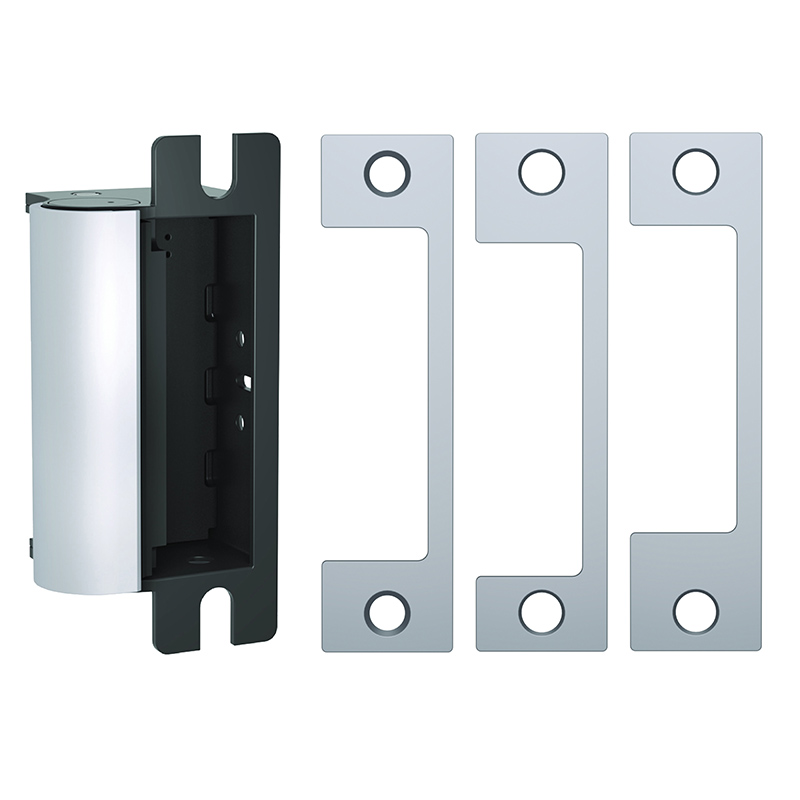

Grade 1 Electric Strike for Deadbolt Locks, Fail Safe, Includes ND and NM Face Plates, Satin Stainless Steel Finish
With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate.
The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.
Frame application
Electrical
Standard Features
Optional Features
Finishes
Amp Draw: .45 @ 12V .25 @ 24V
Base Material: Stainless Steel
Burglar Rated: Yes
Commercial Residential: Commercial
Configuration: Universal
Country of origin: USA
Finish: 630/US32D
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Cylindrical Locks, Mortise Exit and Latch Locks
Frame Application: Metal or Wood
Function: Fail Safe
Grade: Grade 1
Holding Force: 3000 lbs.
Installation: Commercial
Keeper Size: 1"
Limited Warranty: 5 Years
Operating Voltage: 12/24 VDC
Origin: USA
Pack Height: 2.25"
Pack Length: 10.5"
Pack Qty: 1
Pack Volume: 79.73 in³
Pack Width: 3.38"
Series: 1006 Series Electric Strikes
Ship Weight: 1.7 lbs.
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
