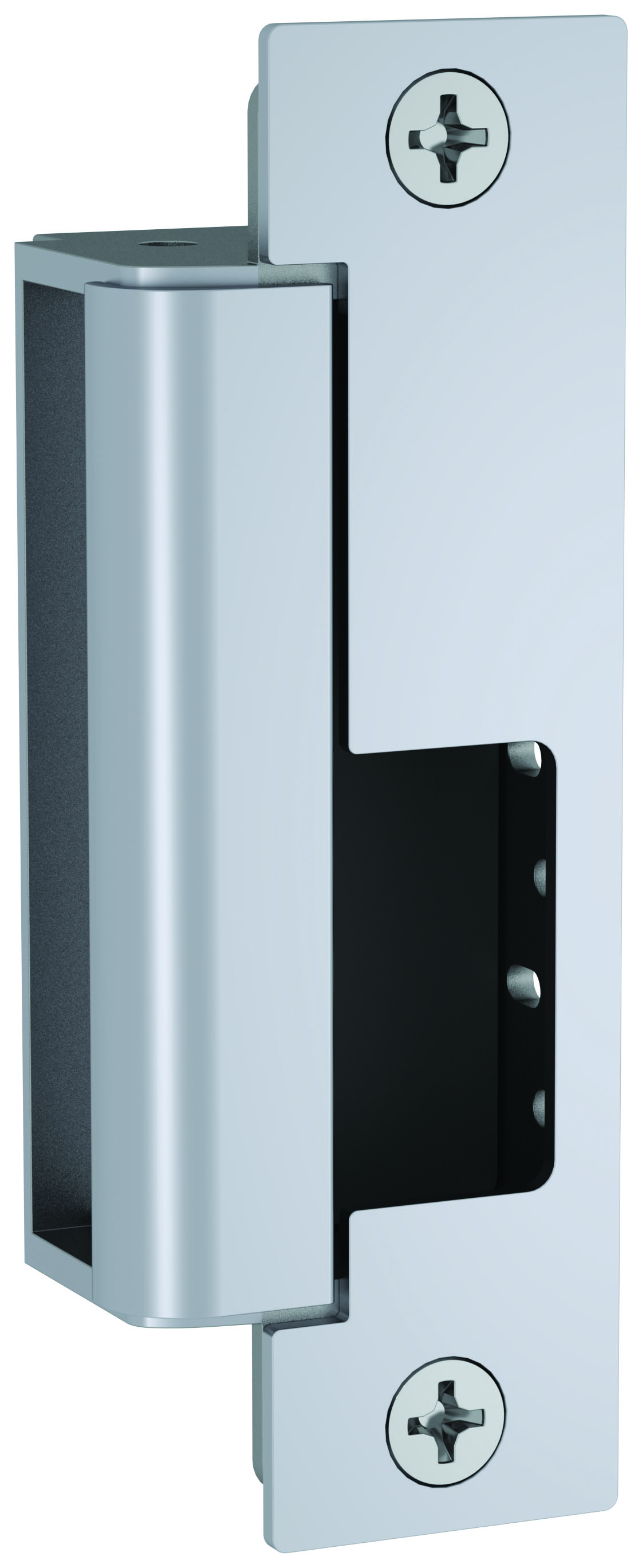

Assa Abloy Electronic Security Hardware - Hes 1500629 12 / 24 Volt DC Electric Strike Body Bright Stainless Steel Finish
Attributes
Adjustability: Horizontal
Amp Draw: .24 Amps at 12VDC, .12 Amps at 24VDC
Base Material: Stainless Steel
Burglar Rated: Yes
CAL FIRE, 3776-1654: 0500
Commercial Residential: Commercial
Complete Pack Options: Strike Body Only
Dynamic Strength (ft-lbs): 70
Endurance (cycles): 1,000,000
Face Shape: Flat Face, Square Corners
Faceplate Shape: Flat Face, Square Corners
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 629 Bright stainless steel
Finish Description: Bright Stainless Steel
Finish Family: Polished Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Cylindrical and Mortise Latchbolts
Frame Application: Metal or Wood
Frame Depth: 1-3/8 In.
Frame Material: Metal|Wood
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latchbolt Accommodation: Up to 3/4"
Limited Warranty: 1 Year
Lock Type: Cylindrical Lock|Mortise Lock
Monitoring Installation: Factory Configured|Field Installable
Monitoring Options: Dual Lock Monitors|Lock Monitor
Operating Voltage: 12VDC/24VDC
Pack Qty: 1
Series: 1500 Series
Shim Type: Field Adjustable
Static Strength (lbs): 1500
Subtype: Electric Strikes
Surface Mounting: Cutting required
Switch Type: None
Tamper Resistant: Yes
Type: Electronics
Unit of Measure: Each
Use With: Cylindrical and Mortise Latchbolts
Voltage: 12/24
