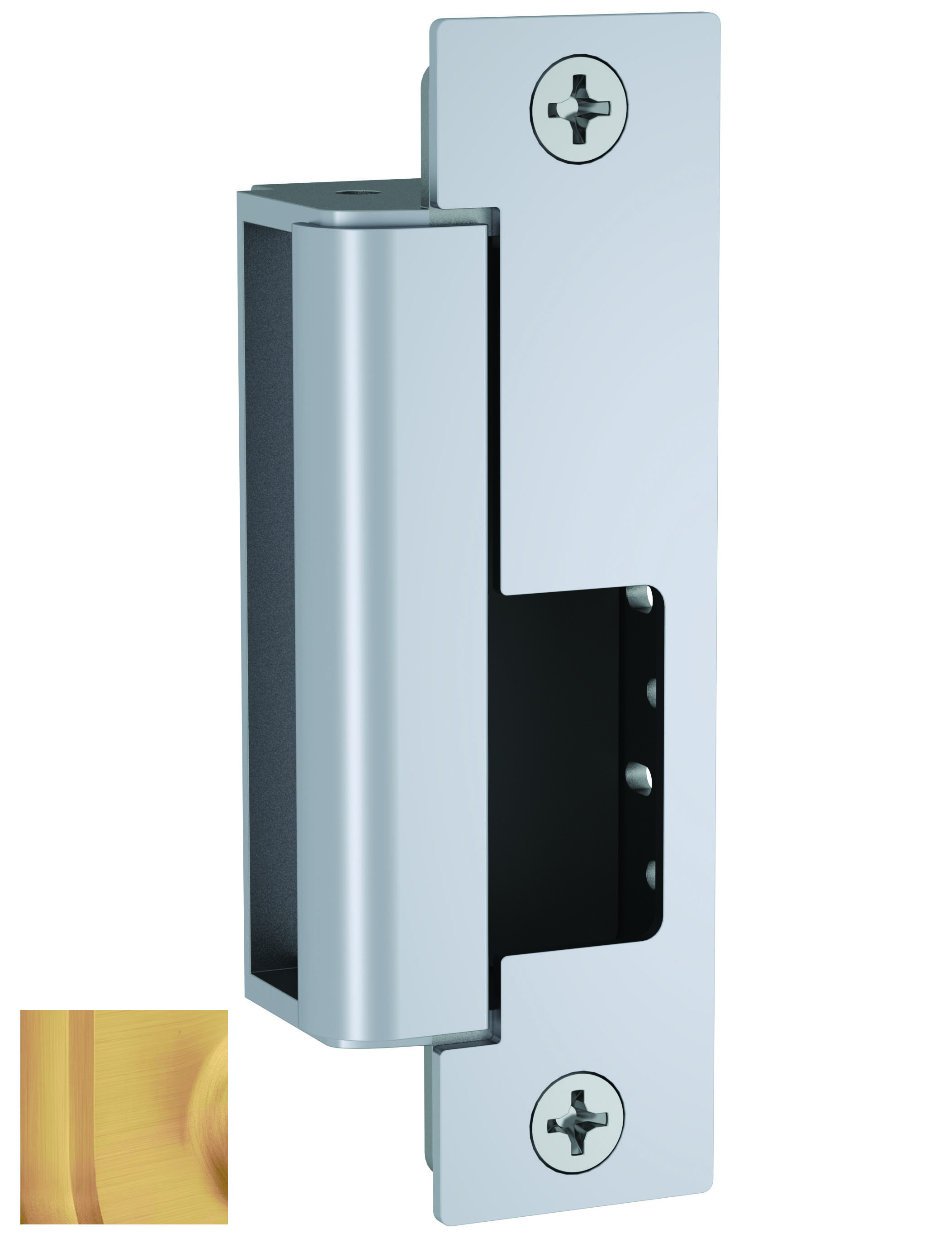

Assa Abloy Electronic Security Hardware - Hes 1500C612 12 / 24 Volt DC Electric Strike Complete Pac Satin Bronze Finish
Attributes
Access Type: Electric Strike
Adjustability: Horizontal
Alternate Codes: 1500C-612, 1500C612
Amp Draw: .24 Amps at 12VDC, .12 Amps at 24VDC
Base Material: Bronze
Burglar Rated: Yes
CAL FIRE, 3776-1654: 0500
Category: Access Control, Electric Strikes
Commercial Residential: Commercial

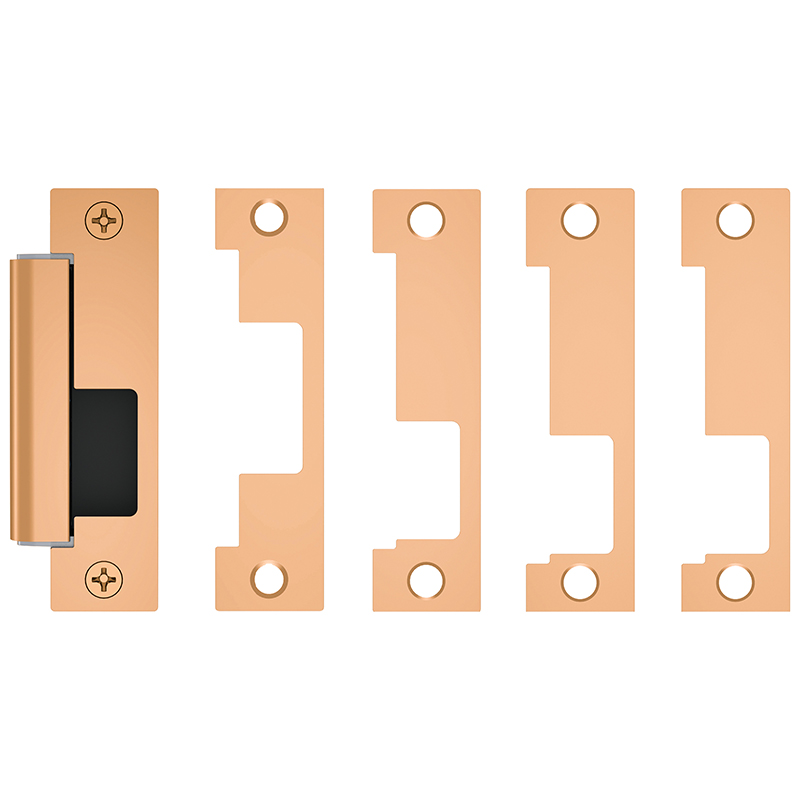

Complete Pack Options: C- includes 1LB faceplate kit for Latchbolts
Door Application: Electric Strikes
Dynamic Strength (ft-lbs): 70
Electric Strike Compatibility: Cylindrical Deadlatch, Mortise Deadlatch, Rim Exit (Pullman Latch)
Electric Strike Faceplate Size: 1-1/4" x 4-7/8"
Electric Strike Faceplate Type: 1K, 1KD, 1KM, ANSI, Complete Latchbolt Faceplates Pac Includes 1J
Electric Strike Features: Body Depth 1-3/8", Outdoor Use, Tamper Resistant, UL Fire Rated
Electric Strike Series: 1500
Endurance (cycles): 1,000,000
Face Shape: Flat Face, Square Corners
Faceplate Shape: Flat Face, Square Corners
Faceplate Size: 4-7/8 In. X 1-1/4 In.
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 612 Satin bronze, clear coated
Finish Code: US10
Finish Color: Satin Bronze, Satin/LT Bronze
Finish Description: Satin Bronze Clear Coated
Finish Family: Matte Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Cylindrical and Mortise Latchbolts
Frame Application: Metal or Wood
Frame Depth: 1-3/8 In.
Frame Material: Metal|Wood
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latchbolt Accommodation: Up to 3/4"
Limited Warranty: 1 Year
Lock Type: Cylindrical Lock|Mortise Lock
Manufacturer: Hanchett Entry Systems HES
Monitoring Installation: Factory Configured|Field Installable
Monitoring Options: Dual Lock Monitors|Lock Monitor
Operating Voltage: 12VDC/24VDC
Pack Qty: 1
Series: 1500 Series
Shim Type: Field Adjustable
Static Strength (lbs): 1500
Subtype: Electric Strikes
Surface Mounting: Cutting required
Switch Type: None
Tamper Resistant: Yes
Type: Electronics
Unit of Measure: Each
Use With: Cylindrical and Mortise Latchbolts
Voltage: 12/24
Voltage Type: Field Selectable, VAC - Alternating, VDC - Direct
