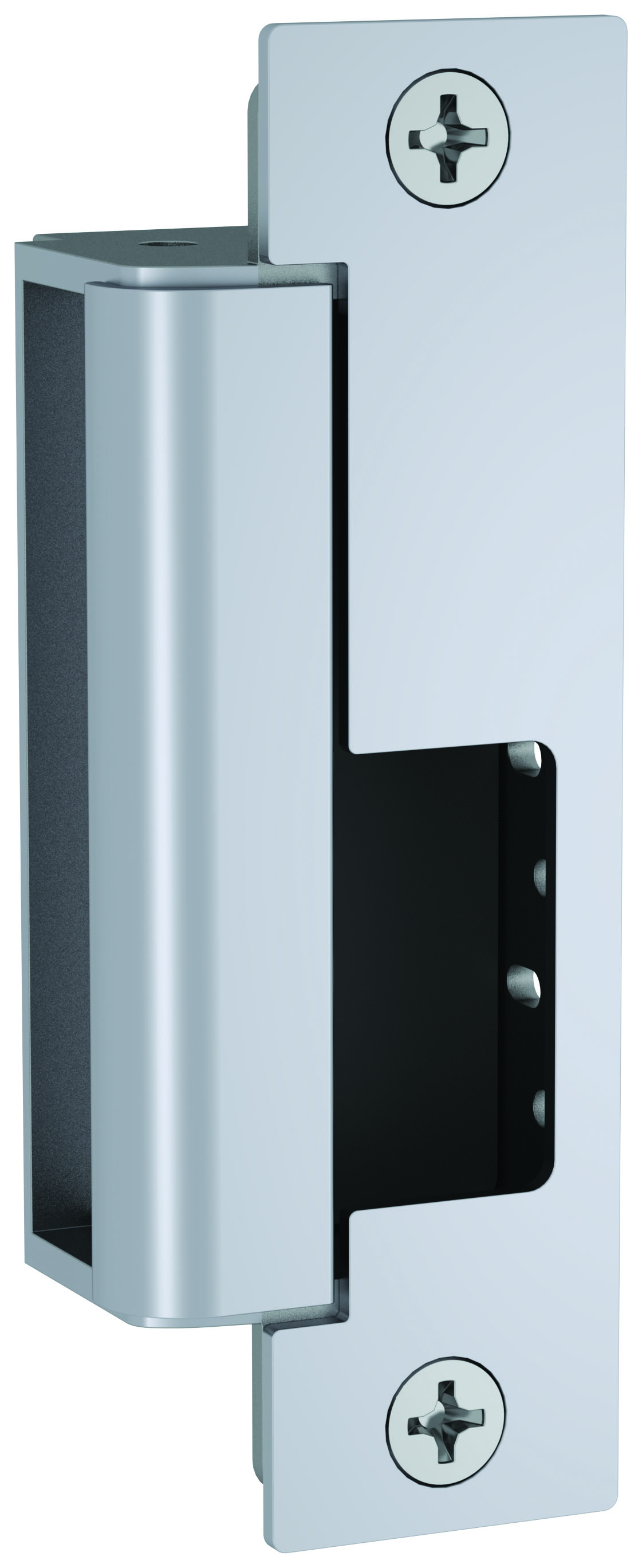

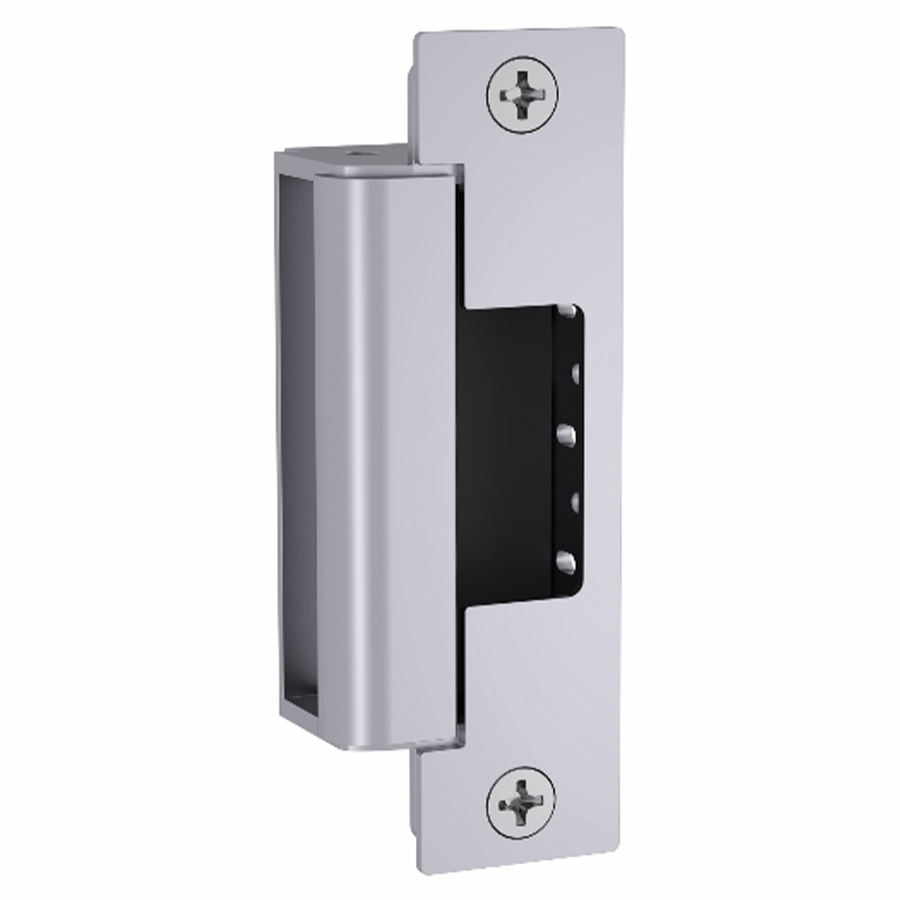

HES 1500C630LM is a reliable electric strike designed to enhance security and accessibility for commercial environments. This complete package operates on dual voltage, accommodating both 12 and 24 VDC, making it versatile for various locking systems. Crafted from stainless steel with a satin finish, it not only provides durability but also blends seamlessly into any architectural aesthetic. Measuring 4-7/8" x 2-1/16" x 1-1/8", the HES 1500C630LM is engineered for compatibility with cylindrical and mortise locksets, ensuring easy integration into your existing hardware. With its UL listings (UL 1034, UL 294, UL 10C), this electric strike meets rigorous safety standards while offering fire-rated protection, making it a sound choice for high-traffic commercial spaces. The unit features a single lock monitor that provides real-time feedback on the status of the lock, enhancing security management. Additionally, it is backed by a 1-year hassle-free guarantee and a 5-year limited mechanical warranty, ensuring peace of mind with your investment. No hazardous materials are used in its construction, affirming its suitability for any environment. The HES 1500C630LM delivers a seamless blend of functionality and reliability, making it an essential component for modern door security solutions.
Attributes
Manufacturer surcharge: $ 0.0
Access Type: Electric Strike
Adjustability: Horizontal
Alternate Codes: 1500C-630-LM, 1500C630LM, HES1500CLM-630
Amp Draw: .24 Amps at 12VDC, .12 Amps at 24VDC
Base Material: Stainless Steel
Burglar Rated: Yes
CAL FIRE, 3776-1654: 0500
Category: Commercial Electronic Devices
Commercial Residential: Commercial

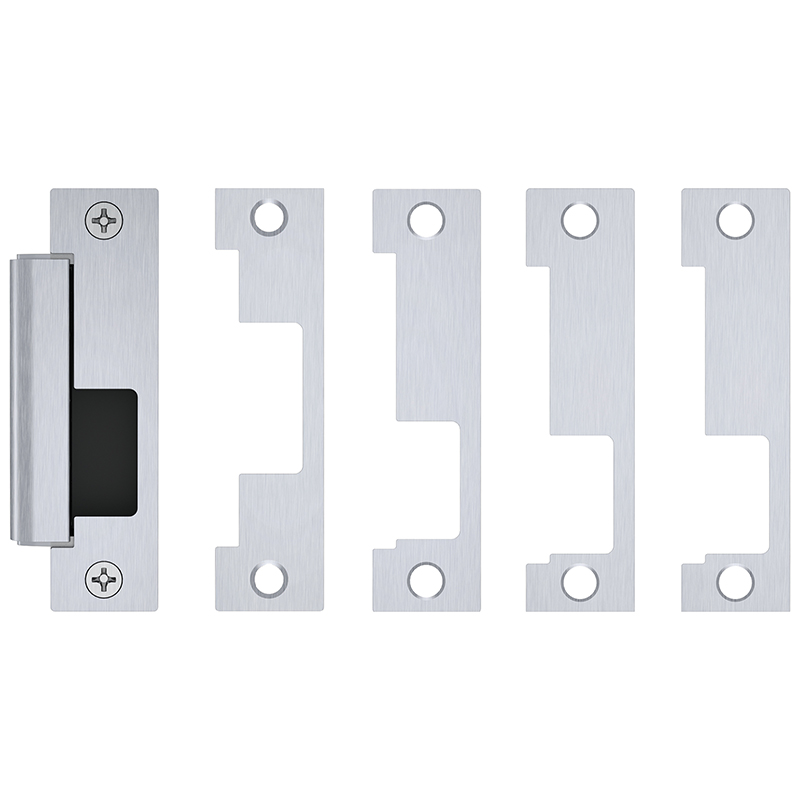

Complete Pack Options: C- includes 1LB faceplate kit for Latchbolts
Dimension: 4-7/8" x 2-1/16" x 1-1/8"
Door And Lock Sensor: Lock Monitor
Door Application: Electric Strikes
Dynamic Strength (ft-lbs): 70
Electric Strike Compatibility: Cylindrical Deadlatch, Mortise Deadlatch, Rim Exit (Pullman Latch)
Electric Strike Faceplate Size: 1-1/4" x 4-7/8"
Electric Strike Faceplate Type: 1K, 1KD, 1KM, ANSI, Complete Latchbolt Faceplates Pac Includes 1J
Electric Strike Features: Body Depth 1-3/8", Outdoor Use, Tamper Resistant, UL Fire Rated
Electric Strike Series: 1500
Endurance (cycles): 1,000,000
Faceplate Shape: Flat Face, Square Corners
Faceplate Size: 4-7/8" x 1-1/4"
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 630 Satin stainless steel
Finish Code: 630
Finish Color: Satin, Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Cylindrical and Mortise Latchbolts
Frame Application: Metal or Wood
Frame Depth: 1-3/8"
Frame Material: Metal|Wood
Function: Fail Safe/Fail Secure
Grade: Grade 1
Handing: Non-handed
Hazardous Material: NO
Installation: Commercial
Latchbolt Accommodation: Up to 3/4"
Limited Warranty: 1 Year
Lock Type: Cylindrical Lock|Mortise Lock
Manufacturer: Hanchett Entry Systems HES
Manufacturer Warranty: 1 Year Hassle Free Guarantee, 5 Year Limited Mechanical Warranty, and 1 Year Limited Electrical Warranty
Material: Stainless Steel
Monitoring Installation: Factory Configured|Field Installable
Monitoring Options: Dual Lock Monitors|Lock Monitor
No Of Inners: 1
Operating Voltage: Dual Voltage 12/24 VDC
Order_ Qty: 1
PO date: 2024-11-14
Pack Qty: 1
Power Supply: Wired
Product Type Used With: Cylindrical and Mortise Locksets
Series: 1500 Series
Shim Type: Field Adjustable
Static Strength (lbs): 1500
Strike: Electric Strike
Subcategory: Electric Strikes
Subtype: Electric Strikes
Surface Mounting: Cutting required
Switch Type: Lock Monitor
Tamper Resistant: Yes
Type: Electronics
Ul Listing Type: UL 1034, UL294, UL10C
Unit of Measure: Each
Voltage: 12/24
Voltage Type: Field Selectable, VAC - Alternating, VDC - Direct
