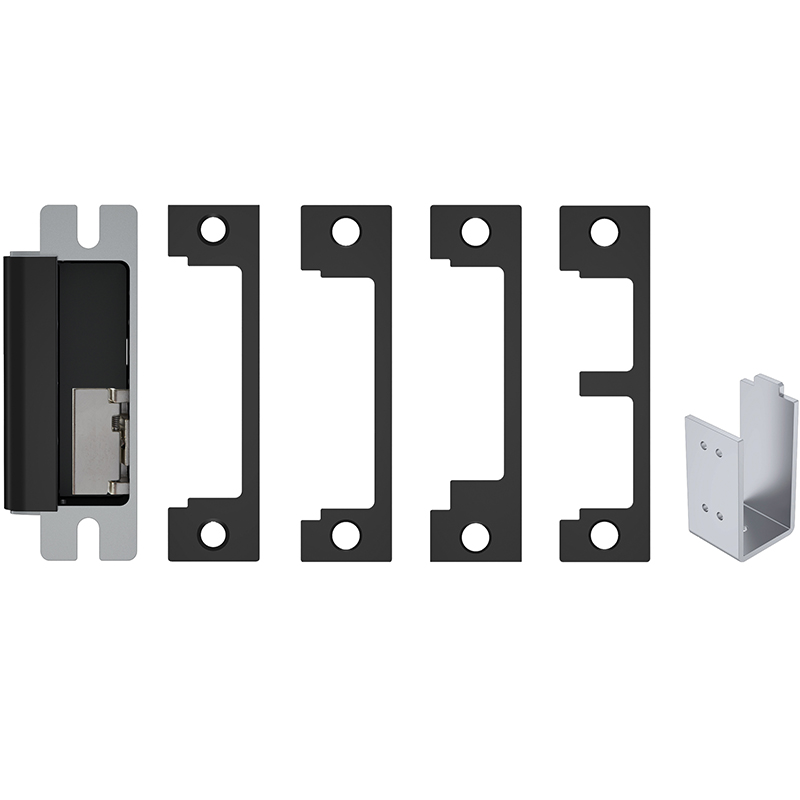

The HES 1500 and 1600 Series Electric Strikes set a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics of an electric strike are complimentary to other surrounding door hardware and blend in with the opening due to the fully finished design available in eight finishes.
Attributes
Adjustability: Horizontal
Alternate Codes: 1600CDB-BSP-LM, 1600CDBBSPLM
Amp Draw: .24 Amps at 12VDC, .12 Amps at 24VDC
Base Material: Brass or Bronze
Burglar Rated: Yes
Category: Access Control, Electric Strikes
Commercial Residential: Commercial
Complete Pack Options: CDB- inlcudes 1DB faceplate kit for Deadbolts
Dynamic Strength (ft-lbs): 70
Endurance (cycles): 1,000,000
Faceplate Shape: Flat Face, Square Corners
Faceplate Size: 4-7/8" x 1-1/4"
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: BSP Black suede powder coat
Finish Family: Black
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Cylindrical and Mortise Latchbolts and Deadbolts
Frame Application: Metal or Wood
Frame Depth: 1-5/8"
Frame Material: Metal|Wood
Function: Fail Safe/Fail Secure
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latchbolt Accommodation: 3/4" - 1"
Limited Warranty: 1 Year
Lock Type: Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt
Monitoring Installation: Factory Configured|Field Installable
Monitoring Options: Dual Lock Monitors|Lock Monitor
Operating Voltage: 12/24 VDC
Pack Qty: 1
Series: 1600 Series Electric Strikes
Shim Type: Field Adjustable
Static Strength (lbs): 1500
Subtype: Electric Strikes
Surface Mounting: Cutting required
Switch Type: Lock Monitor
Tamper Resistant: Yes
Type: Electric Strikes
Unit of Measure: Each
Voltage: 12/24
