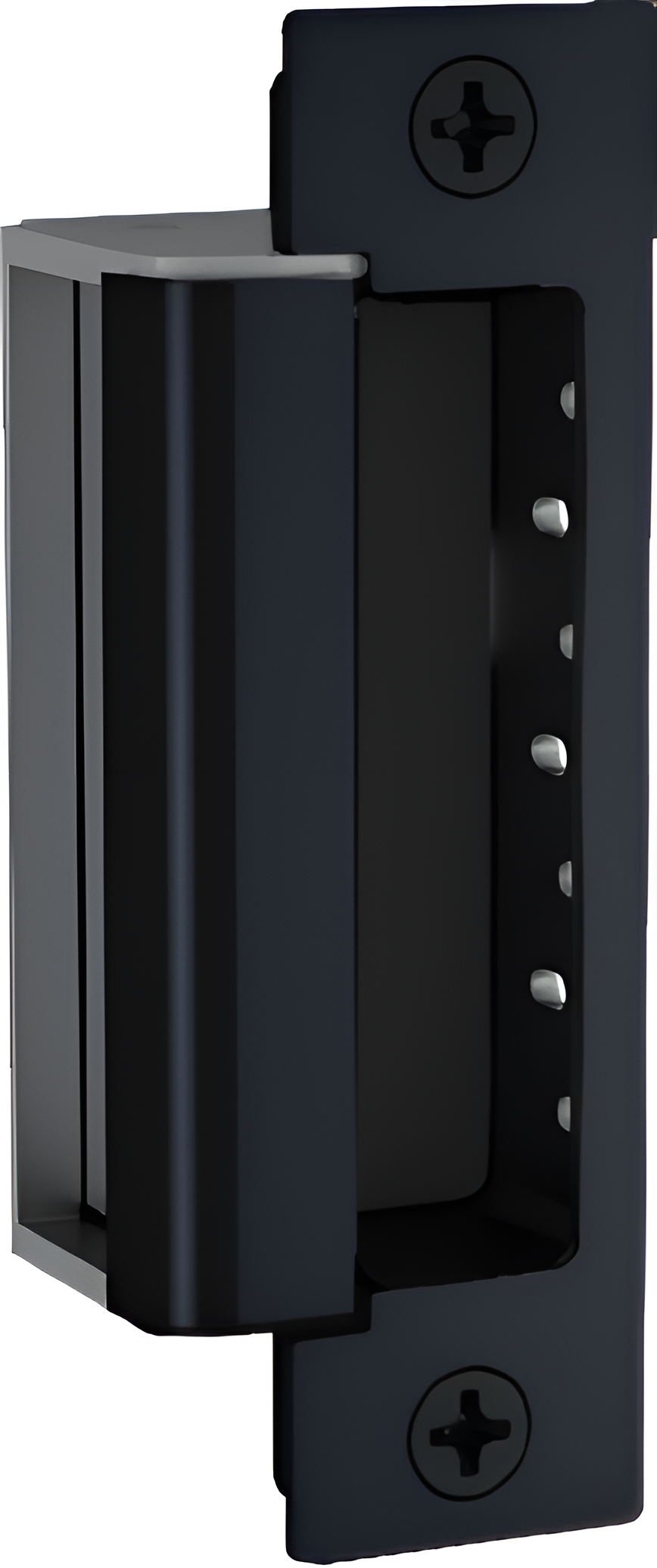

The HES 1600 Series heavy duty electric strike is the most advanced electric strike available on the market for cylindrical latchbolt and deadbolt locks. It accommodates up to a 1" deadbolt with enhanced vertical cavity spacing and will accommodate every brand of cylindrical or mortise lock designed to work with a 4-7/8" strike plate.
Attributes
Access Type: Electric Strike
Adjustability: Horizontal
Alternate Codes: 1600CLB-BLK, 1600CLBBLK, 1600CLB-BSP, 1600CLBBSP, HES1600CLB-BLK
Amp Draw: .24 Amps at 12VDC, .12 Amps at 24VDC
Base Material: Brass or Bronze
Burglar Rated: Yes
Category: Access Control, Electric Strikes
Commercial Residential: Commercial

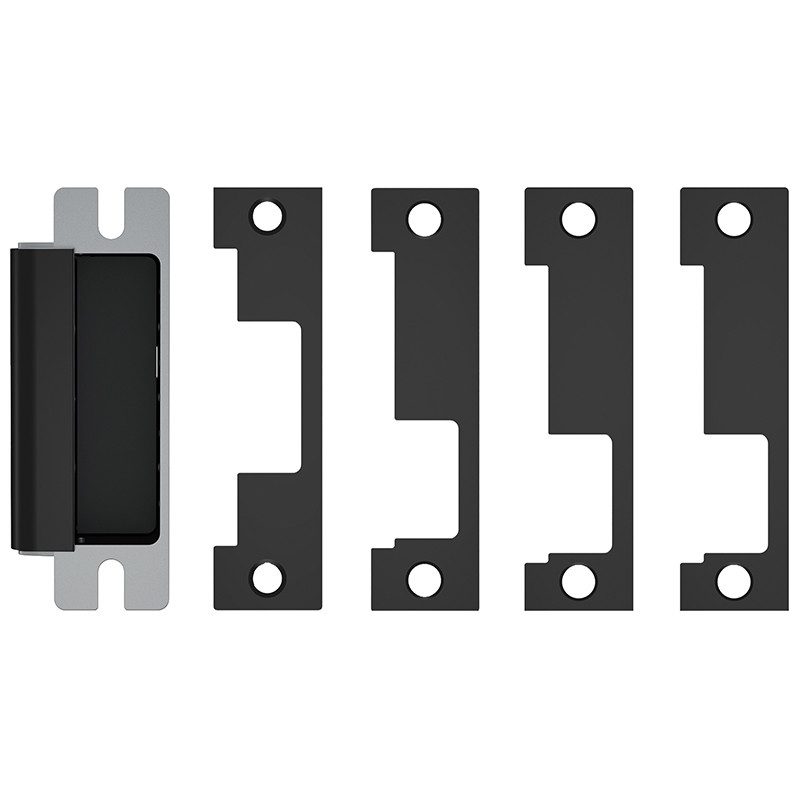

Complete Pack Options: CLB- includes 1LB faceplate kit for Latchbolts
Door Application: Electric Strikes
Dynamic Strength (ft-lbs): 70
Electric Strike Compatibility: Cylindrical Deadlatch, Metal Frames, Mortise Deadbolt, Mortise Deadlatch, Wood Frame
Electric Strike Faceplate Size: 1-1/4" x 4-7/8"
Electric Strike Faceplate Type: 1K, 1KD, 1KM, Complete Latchbolt Faceplates Pac Includes 1J, Cylindrical Locks, Mortise Locks With Deadlatch Only
Electric Strike Features: Body Depth 1-5/8", Outdoor Use, Tamper Resistant, UL Fire Rated
Electric Strike Series: 1600
Endurance (cycles): 1,000,000
Face Shape: Flat Face, Square Corners
Faceplate Shape: Flat Face, Square Corners
Faceplate Size: 4-7/8 In. X 1-1/4 In.
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: BSP Black suede powder coat
Finish Code: US19
Finish Color: Black, Black Powder Coat, Flat Black, Matte Black
Finish Description: Flat Black Coated
Finish Family: Black
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Cylindrical and Mortise Latchbolts and Deadbolts
Frame Application: Metal or Wood
Frame Depth: 1-5/8 In.
Frame Material: Metal|Wood
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latchbolt Accommodation: 3/4" - 1"
Limited Warranty: 1 Year
Lock Type: Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt
Manufacturer: Hanchett Entry Systems HES
Monitoring Installation: Factory Configured|Field Installable
Monitoring Options: Dual Lock Monitors|Lock Monitor
Operating Voltage: 12VDC/24VDC
Pack Qty: 1
Series: 1600 Series Electric Strikes
Shim Type: Field Adjustable
Static Strength (lbs): 1500
Subtype: Electric Strike
Surface Mounting: Cutting required
Switch Type: None
Tamper Resistant: Yes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Use With: Cylindrical and Mortise Latchbolts and Deadbolts
Voltage: 12/24
Voltage Type: Field Selectable, VAC - Alternating, VDC - Direct
