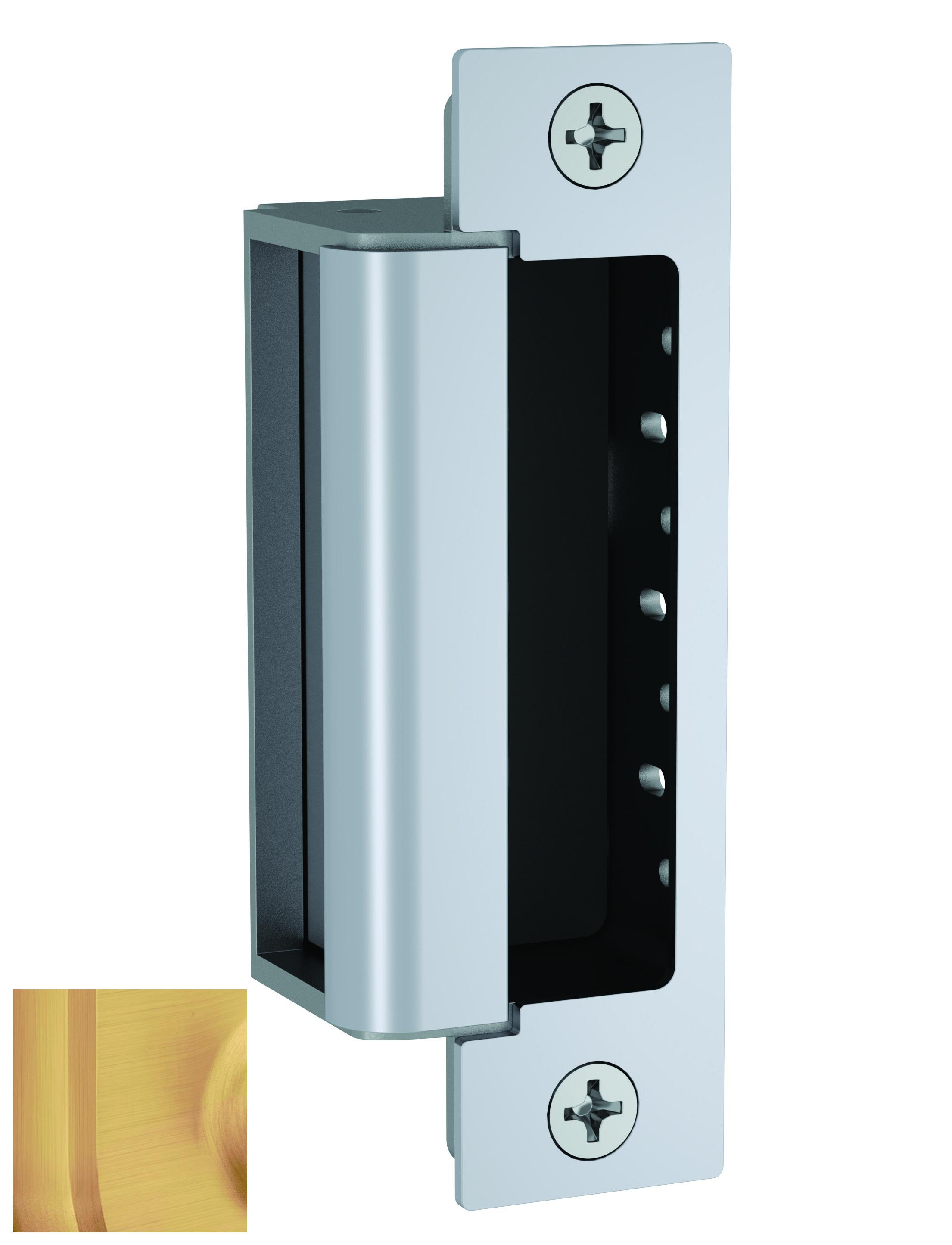

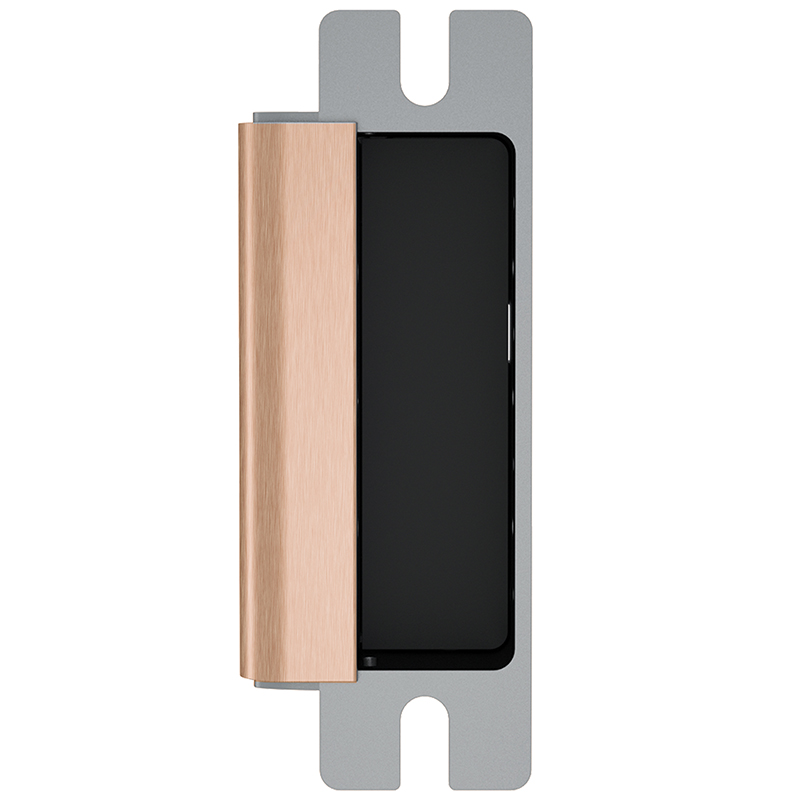

Assa Abloy Electronic Security Hardware - Hes 1600612-12/24 Volt DC Heavy Duty Electric Strike Body Satin Bronze Finish
Attributes
Ship via: Can Ship UPS
Adjustability: Horizontal
Amp Draw: .24 Amps at 12VDC, .12 Amps at 24VDC
Complete Pack Options: Strike Body Only
Dynamic Strength (ft-lbs): 70
Endurance (cycles): 1,000,000
Face Shape: Flat Face, Square Corners
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 612 Satin bronze, clear coated
Finish Description: Satin Bronze Clear Coated
Fire Rated: Yes
Frame Application: Metal or Wood
Frame Material: Metal|Wood
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Handing: Non-handed
Latchbolt Accommodation: 3/4" - 1"
Limited Warranty: 1 Year
Lock Type: Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt
Monitoring Installation: Factory Configured|Field Installable
Monitoring Options: Dual Lock Monitors|Lock Monitor
Operating Voltage: 12VDC/24VDC
Series: 1600 Series
Shim Type: Field Adjustable
Static Strength (lbs): 1500
Subtype: Electric Strikes
Surface Mounting: Cutting required
Switch Type: None
Tamper Resistant: Yes
Type: Electronics
Use With: Cylindrical and Mortise Latchbolts and Deadbolts
Voltage: 1-2/24
