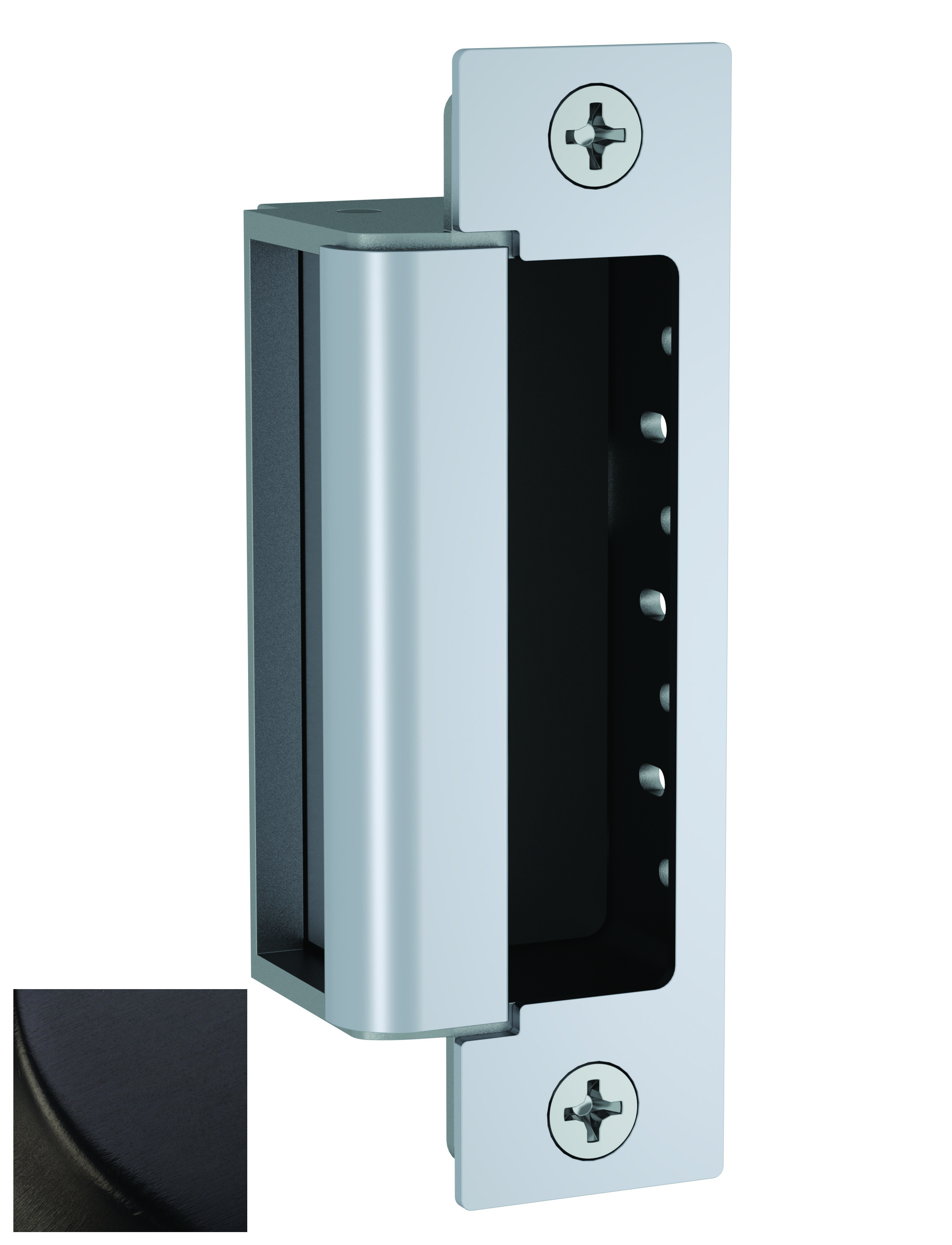

Assa Abloy Electronic Security Hardware - Hes 1600CS613E 12 / 24 Volt DC Electric Strike Complete Pac Oil Rubbed Bronze Finish
Attributes
Manufacturer surcharge: $ 0.0
Adjustability: Horizontal
Amp Draw: .24 Amps at 12VDC, .12 Amps at 24VDC
Base Material: Bronze
Burglar Rated: Yes
Commercial Residential: Commercial

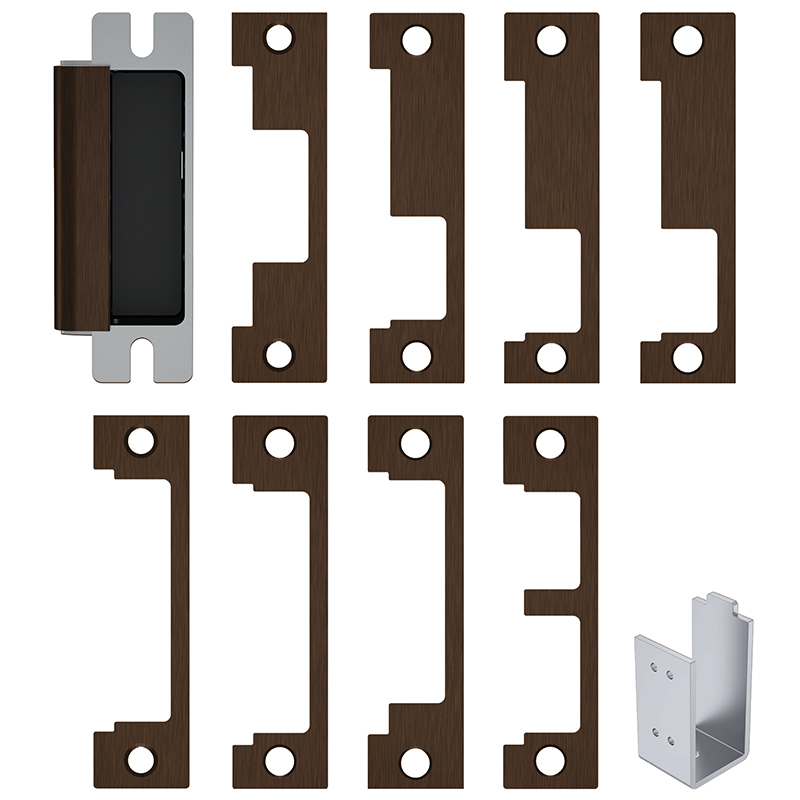

Complete Pack Options: CS- includes 1LB faceplate kit for Latchbolts and 1DB faceplate kit for Deadbolts
Dynamic Strength (ft-lbs): 70
Endurance (cycles): 1,000,000
Faceplate Shape: Flat Face, Square Corners
Faceplate Size: 4-7/8" x 1-1/4"
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 613E Dark oxidized satin bronze-equivalent
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Cylindrical and Mortise Latchbolts and Deadbolts
Frame Application: Metal or Wood
Frame Depth: 1-5/8"
Frame Material: Metal|Wood
Function: Fail Safe/Fail Secure
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latchbolt Accommodation: 3/4" - 1"
Limited Warranty: 1 Year
Lock Type: Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt
Monitoring Installation: Factory Configured|Field Installable
Monitoring Options: Dual Lock Monitors|Lock Monitor
Operating Voltage: 12/24 VDC
Pack Qty: 1
Series: 1600 Series
Shim Type: Field Adjustable
Static Strength (lbs): 1500
Subtype: Electric Strikes
Surface Mounting: Cutting required
Tamper Resistant: Yes
Type: Electronics
Unit of Measure: Each
Voltage: 12/24
