Attributes

Ship via: Can Ship UPS

Adjustability: Horizontal

Alternate Codes: 1600CS-630-DLMS, 1600CS630DLMS

Amp Draw: .24 Amps at 12VDC, .12 Amps at 24VDC

Base Material: Stainless Steel

Burglar Rated: Yes

Category: Access Control, Electric Strikes

Commercial Residential: Commercial

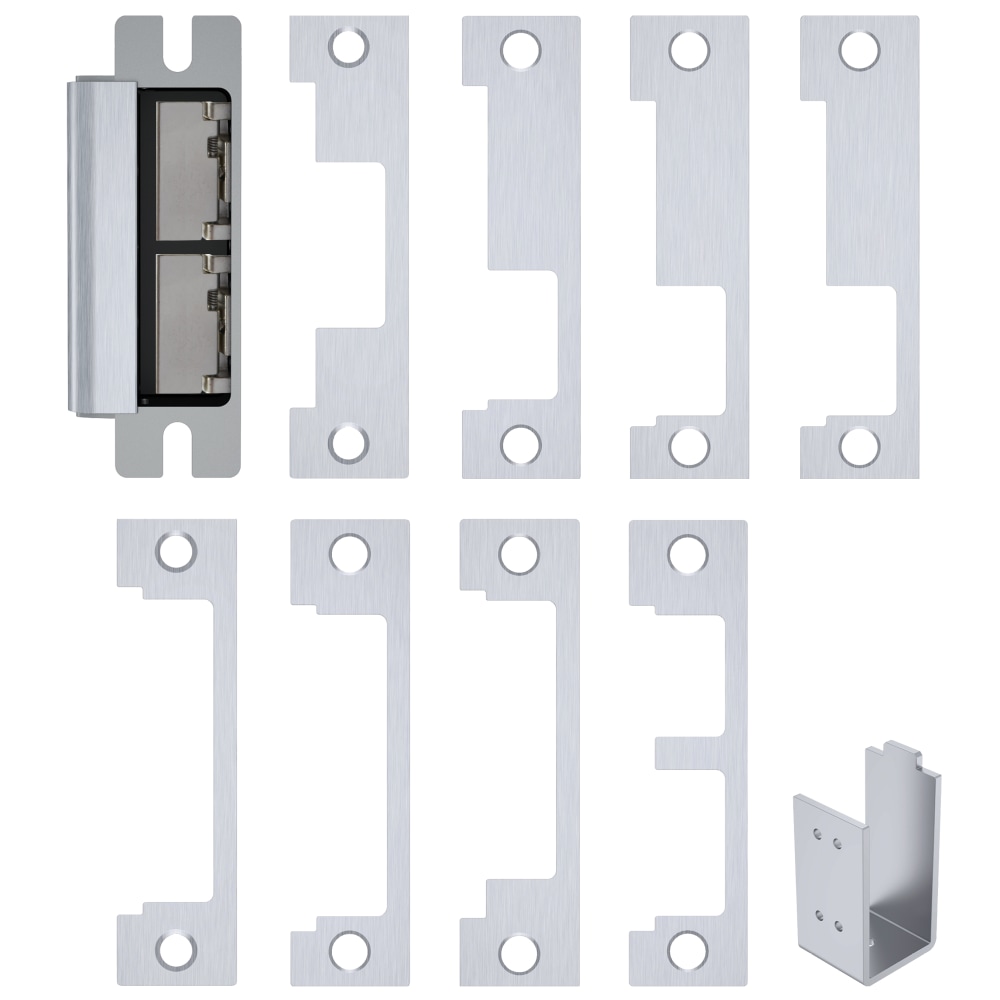

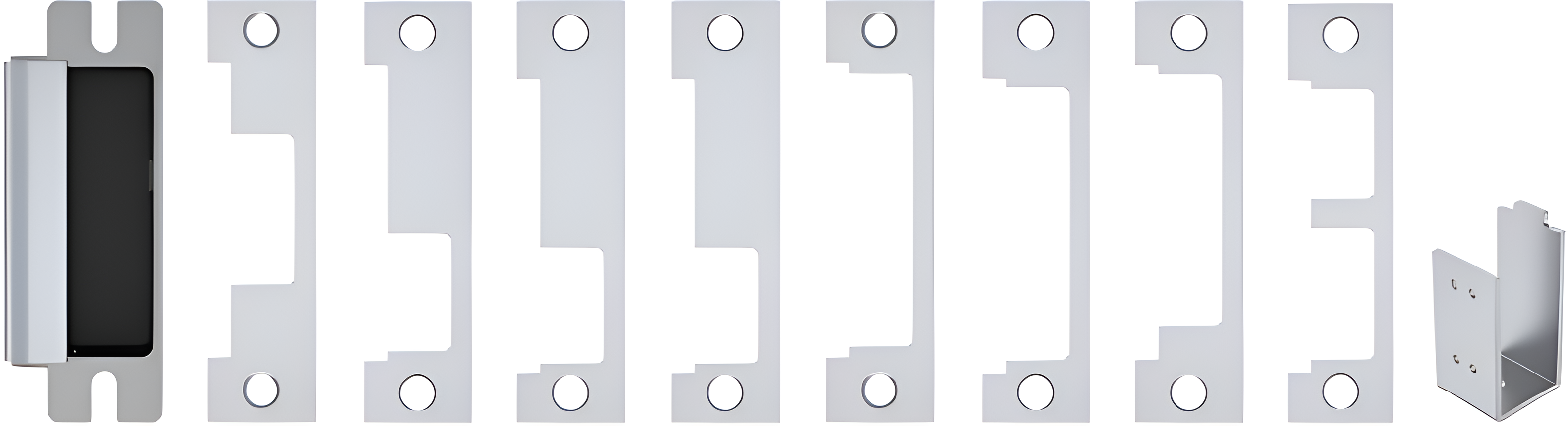

Complete Pack Options: CS- includes 1LB faceplate kit for Latchbolts and 1DB faceplate kit for Deadbolts

Dynamic Strength (ft-lbs): 70

Endurance (cycles): 1,000,000

Faceplate Shape: Flat Face, Square Corners

Faceplate Size: 4-7/8" x 1-1/4"

Fail Safe | Fail Secure: Field selectable fail safe/fail secure

Finish: 630 Satin stainless steel

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 3 Hours {A}

For Use With: Cylindrical and Mortise Latchbolts and Deadbolts

Frame Application: Metal or Wood

Frame Depth: 1-5/8"

Frame Material: Metal|Wood

Function: Fail Safe/Fail Secure

Grade: Grade 1

Handing: Non-handed

Installation: Commercial

Latchbolt Accommodation: 3/4" - 1"

Limited Warranty: 1 Year

Lock Type: Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt

Monitoring Installation: Factory Configured|Field Installable

Monitoring Options: Dual Lock Monitors|Lock Monitor

Operating Voltage: 12/24 VDC

Pack Qty: 1

Series: 1600 Series

Shim Type: Field Adjustable

Static Strength (lbs): 1500

Subtype: Electric Strikes

Surface Mounting: Cutting required

Switch Type: Dual Lock Monitor, Strike Monitor

Tamper Resistant: Yes

Type: Electronics

Unit of Measure: Each

Voltage: 12/24
