HES 1600CSBSP is a high-performance electric strike designed for commercial applications, providing reliable access control with a sleek black suede powder coat finish. This dual voltage unit operates efficiently at both 12 and 24 VDC, making it versatile for various locking systems. The HES 1600CSBSP is UL 10C fire-rated for a three-hour single door, ensuring safety and compliance in critical environments. Built to last, this strike boasts an impressive endurance rating of 1,000,000 cycles, demonstrating its durability in high-traffic areas. The non-handed design allows for easy installation with cylindrical and mortise locksets, accommodating multiple door configurations. Featuring an internally mounted solenoid, it provides a clean and streamlined appearance while maintaining robust functionality. With an ANSI/BHMA A156.31, Grade 1 rating, the HES 1600CSBSP guarantees top-tier performance. Its dimensions of 4-7/8" x 1-3/4" x 1-3/8" ensure compatibility with a wide range of door frames. Additionally, it comes with a one-year hassle-free guarantee and limited warranties covering both mechanical and electrical components, underscoring HES's commitment to quality and customer satisfaction. Whether for new installations or upgrades, the HES 1600CSBSP is an exceptional choice for secure access control solutions.
HES is the leading manufacturer of electro-mechanical locking solutions for the access control industry. HES develops products that solve customers’ needs. First to market with cutting edge solutions like the versatile 1006 series and the completely windstorm rated, surface-mounted 9600 electric strike, HES has built a global reputation for innovation, strength, and service.
Attributes
Adjustability: Horizontal
Amp Draw: .24 Amps at 12VDC, .12 Amps at 24VDC
Base Material: Brass or Bronze
Burglar Rated: Yes
Category: Commercial Electronic Devices
Commercial Residential: Commercial

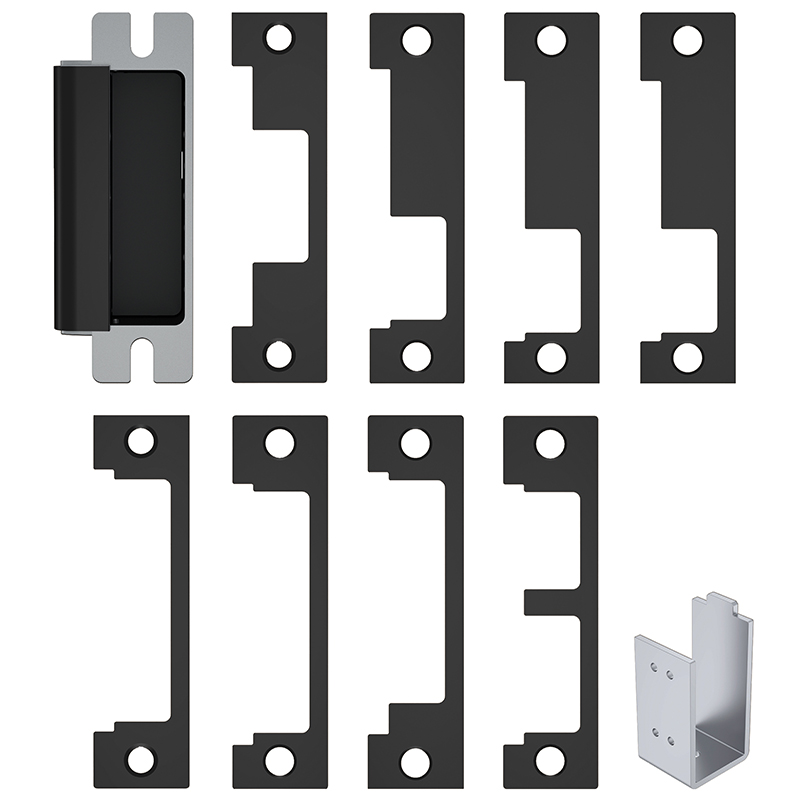

Complete Pack Options: CS- includes 1LB faceplate kit for Latchbolts and 1DB faceplate kit for Deadbolts
Dimension: 4-7/8" x 1-3/4" x 1-3/8"
Dynamic Strength (ft-lbs): 70
Endurance (cycles): 1,000,000
Face Shape: Flat Face, Square Corners
Faceplate Shape: Flat Face, Square Corners
Faceplate Size: 4-7/8 In. X 1-1/4 In.
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: BSP Black suede powder coat
Finish Code: BSP
Finish Description: Flat Black Coated
Finish Family: Black
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Cylindrical and Mortise Latchbolts and Deadbolts
Frame Application: Metal or Wood
Frame Depth: 1-5/8 In.
Frame Material: Metal|Wood
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Handing: Non-handed
Hazardous Material: NO
Installation: Commercial
Latchbolt Accommodation: 3/4" - 1"
Limited Warranty: 1 Year
Lock Type: Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt
Manufacturer Warranty: 1 Year Hassle Free Guarantee, 5 Year Limited Mechanical Warranty, and 1 Year Limited Electrical Warranty
Material: Stainless Steel
Monitoring Installation: Factory Configured|Field Installable
Monitoring Options: Dual Lock Monitors|Lock Monitor
No Of Inners: 1
Operating Voltage: 12VDC/24VDC
Order_ Qty: 1
Pack Qty: 1
Power Supply: Wired
Product Type Used With: Cylindrical and Mortise Locksets
Series: 1600 Series
Shim Type: Field Adjustable
Static Strength (lbs): 1500
Strike: Electric Strike
Strike Dimension: 4-7/8"
Subcategory: Electric Strikes
Subtype: Electric Strike
Surface Mounting: Cutting required
Switch Type: None
Tamper Resistant: Yes
Type: Electric Strikes, Bolts, Magnets
Ul Listing Type: UL 1034, UL294, UL10C
Unit of Measure: Each
Use With: Cylindrical and Mortise Latchbolts and Deadbolts
Voltage: 12/24
