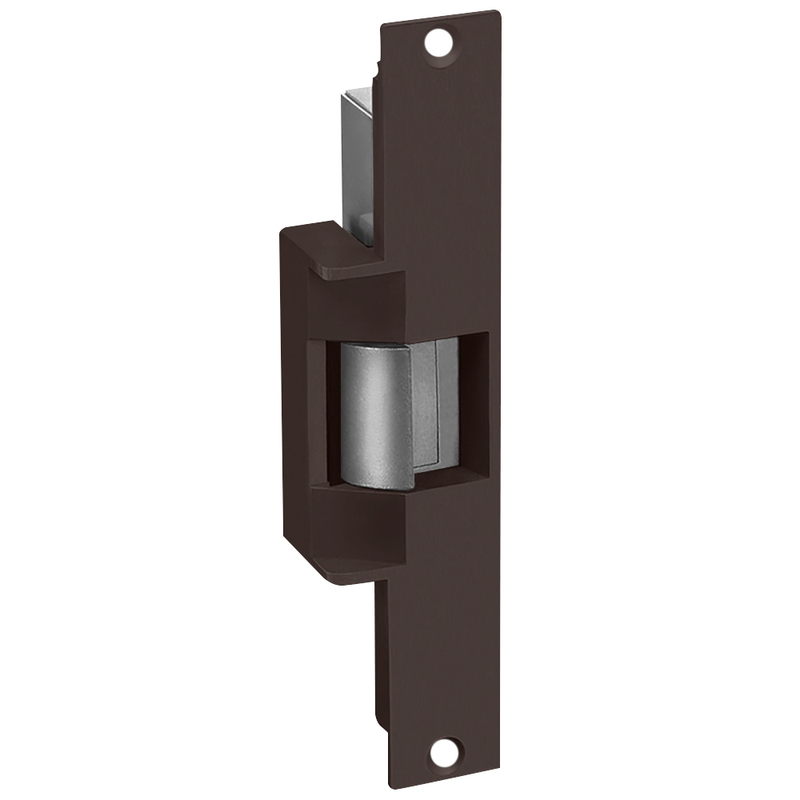

HES 310-2 24D 613E 300 Series Electric StrikeHES 310-2 24D 613E 300 Series Electric Strike is engineered for demanding environments that require robust security solutions. This Grade 1 electric strike features a fail secure design and operates on 24 VDC, making it a reliable choice for both commercial and industrial applications. With a 1/2" keeper depth, it accommodates cylindrical locks, mortise exit, and latch locks, ensuring versatile functionality. Constructed entirely from stainless steel, the HES 310-2 is built to withstand heavy abuse, making it ideal for high-traffic areas. It boasts a static strength of 1,500 lbs. and a dynamic strength of 70 ft-lbs., alongside an impressive endurance rating of 500,000 cycles. Additionally, this device is UL 10C fire-rated for up to 3 hours for both single and double doors, meeting stringent safety standards. The HES 310-2 also features a horizontally adjustable keeper that allows for alignment adjustments with door and frame misalignment, ensuring optimal performance. With its tamper-resistant design and five-year limited warranty, this electric strike offers peace of mind and long-lasting durability. It's New York City accepted and complies with various fire door standards, making it a top choice for any security-conscious installation.
300 Series Electric Strike
Grade 1 Electric Strike, Fail Secure, 24 VDC, 1/2" Keeper, Dark Oxidized Bronze Finish
The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.
The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications.
The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.
- UL 10C fire-rated, 3 hour single door (fail secure only)
- UL 10C fire-rated, 3 hour double door (fail secure only)
- CAN4-S104 (ULC-S104) fire door conformant
- UL1034, burglary-resistant listed
- UL 294 (6th Edition) listed
- ANSI/BHMA A156.31, Grade 1
- New York City accepted
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- RoHS compliant
- .51 Amps @ 12VDC continuous duty
- .25 Amps @ 24VDC continuous duty
- Tamper resistant, heavy-duty construction
- Constructed entirely of stainless steel for strength and corrosion resistance
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance rating 500,000 cycles
- Horizontally adjustable keeper to allow for door and frame misalignment
- 1/2" keeper depth (310-2)
- Non-handed
- Fail Secure (standard)
- Plug-in connector
- Five year limited warranty
- Fail Safe
- LCBMA - Latchbolt & Locking Cam Monitor with Auxiliary Switch (all except 310-2 3/4OB)
Attributes
Amp Draw: .51 @ 12V .25 @ 24V
Application: 1/2" or 5/8" Latchbolt
Baa Qualified: Yes
Base Material: Bronze
Commercial Residential: Commercial
Configuration: Centered
Country of origin: USA
Faceplate Size: 9" x 1-3/8"
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Cylindrical Locks, Mortise Exit and Latch Locks
Frame Application: Metal or Wood
Function: Fail Secure
Grade: Grade 1
Holding Force: 1500 lbs.
Installation: Commercial
Keeper Size: 1/2"
Limited Warranty: 5 Years
Operating Voltage: 24 VDC
Origin: USA
Pack Height: 2.5"
Pack Length: 12.25"
Pack Qty: 1
Pack Volume: 183.75 in³
Pack Width: 6"
Series: 310 Series Electric Strikes
Ship Weight: 3.2 lbs.
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
