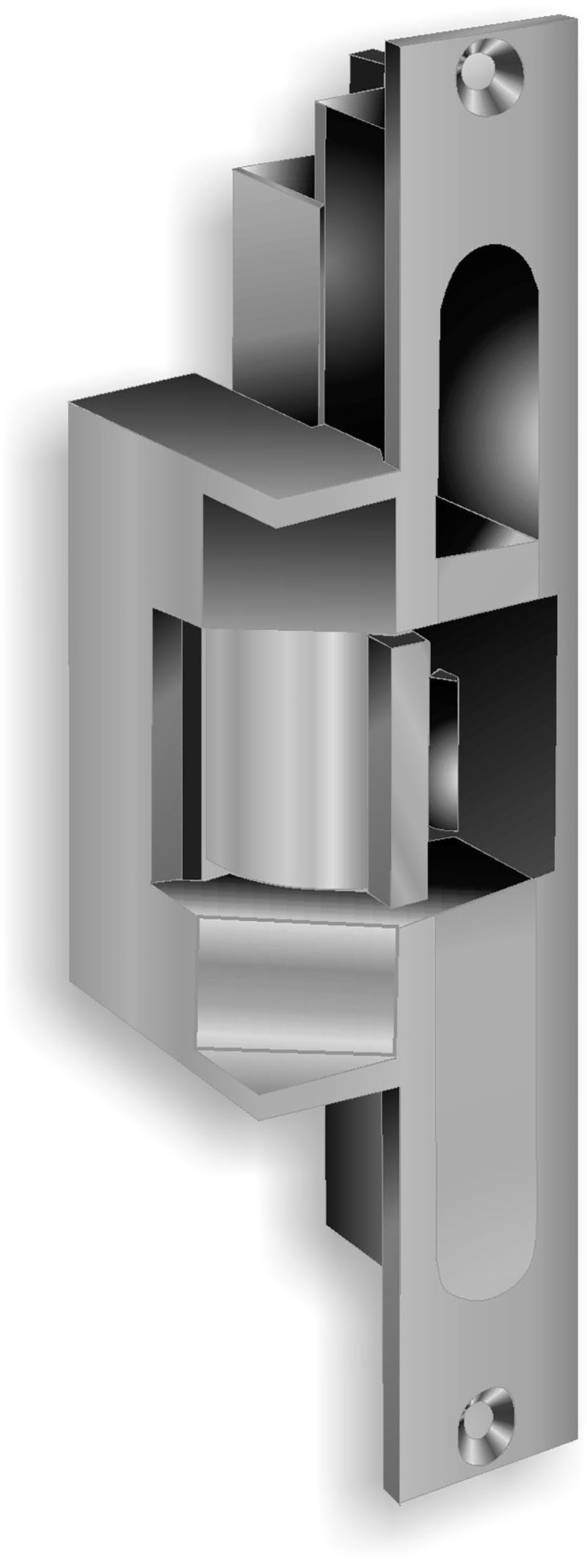

HES 310-3-1 12D 613E 300 Series Electric StrikeHES 310-3-1 12D 613E 300 Series Electric Strike is a robust Grade 1 electric strike specifically engineered for heavy-duty applications, ensuring reliability in high-traffic environments. This fail secure device operates at 12 VDC and features a 1" keeper, making it compatible with various mortise locks, including those by Arrow and Corbin Russwin. Constructed entirely from stainless steel, the 310 Series is built to withstand extreme conditions, boasting a static strength of 1,500 lbs. and a dynamic strength of 70 ft-lbs. Its impressive endurance rating of 500,000 cycles means it can handle the demands of commercial settings with ease. Rated for 3 hours of fire resistance, this electric strike complies with UL 10C standards, making it suitable for both single and double doors. Additional benefits include a tamper-resistant design, a horizontally adjustable keeper for door and frame misalignment, and a plug-in connector for easy installation. With a five-year limited warranty, the HES 310-3-1 electric strike combines durability, security, and high performance, making it an essential component for modern access control systems.
300 Series Electric Strike
Grade 1 Electric Strike, Fail Secure, 12 VDC, 1" Keeper, Dark Oxidized Bronze Finish
The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.
The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications.
The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.
- UL 10C fire-rated, 3 hour single door (fail secure only)
- UL 10C fire-rated, 3 hour double door (fail secure only)
- CAN4-S104 (ULC-S104) fire door conformant
- UL1034, burglary-resistant listed
- UL 294 (6th Edition) listed
- ANSI/BHMA A156.31, Grade 1
- New York City accepted
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- RoHS compliant
- .51 Amps @ 12VDC continuous duty
- .25 Amps @ 24VDC continuous duty
- Tamper resistant, heavy-duty construction
- Constructed entirely of stainless steel for strength and corrosion resistance
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance rating 500,000 cycles
- Horizontally adjustable keeper to allow for door and frame misalignment
- 1/2" keeper depth (310-2)
- Non-handed
- Fail Secure (standard)
- Plug-in connector
- Five year limited warranty
- Fail Safe
- LCBMA - Latchbolt & Locking Cam Monitor with Auxiliary Switch (all except 310-2 3/4OB)
Attributes
Amp Draw: .51 @ 12V .25 @ 24V
Application: 3/4" Latchbolt and 1" Deadbolt
Baa Qualified: Yes
Base Material: Bronze
Commercial Residential: Commercial
Configuration: Centered
Country of origin: USA
Faceplate Size: 9" x 1-3/8"
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Mortise Locks by Arrow, Corbin Russwin
Frame Application: Metal or Wood
Function: Fail Secure
Grade: Grade 1
Holding Force: 1500 lbs.
Installation: Commercial
Keeper Size: 1"
Limited Warranty: 5 Years
Operating Voltage: 12 VDC
Origin: USA
Pack Height: 2.5"
Pack Length: 17.25"
Pack Qty: 1
Pack Volume: 258.75 in³
Pack Width: 6"
Series: 310 Series Electric Strikes
Ship Weight: 5.2 lbs.
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
