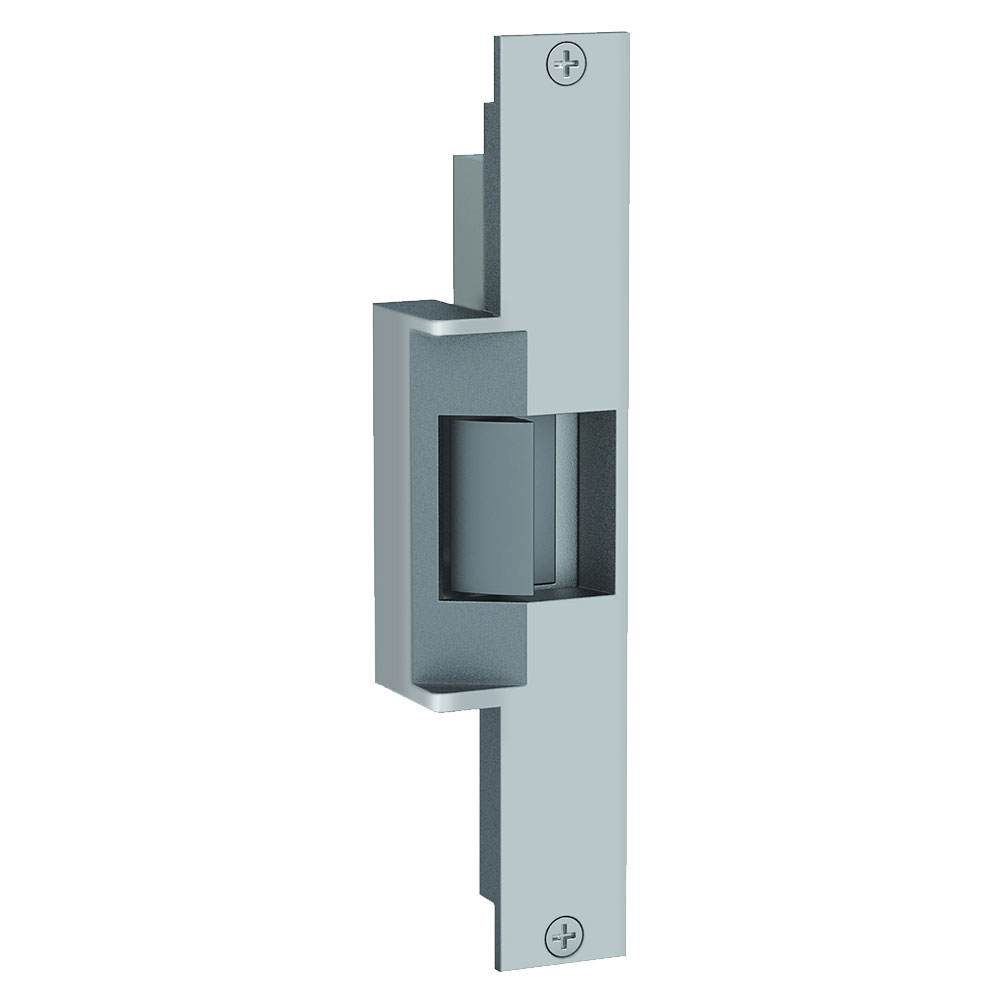

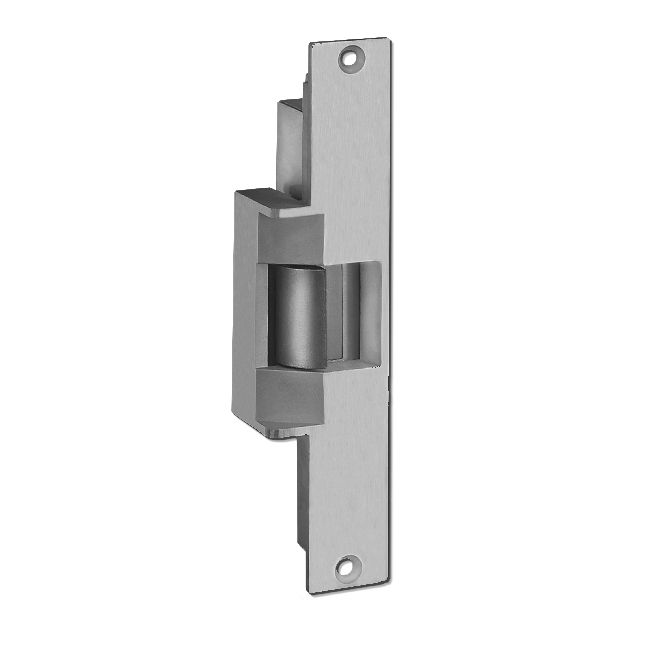

HES 3102F24D630 310-2 24D Fail Safe Electric Strike Satin Stainless Steel Finish

Attributes

Manufacturer surcharge: $ 0.0

Adjustability: Horizontal

Amp Draw: .51 @ 12V .25 @ 24V

Application: 1/2" or 5/8" Latchbolt

Baa Qualified: Yes

Base Material: Stainless Steel

Commercial Residential: Commercial

Complete Pack Options: Complete Pack for a 1/2" or 5/8" throw latchbolt without deadbolt

Configuration: Centered

Country of origin: USA

Dynamic Strength (ft-lbs): 70

Endurance (cycles): 1,000,000

Faceplate Size: 9" x 1-3/8"

Fail Safe or Fail Secure: Fail Secure|Fail Safe

Fail Safe | Fail Secure: Fail Safe

Finish: 630 Satin stainless steel

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: No

For Use With: Cylindrical Locks, Mortise Exit and Latch Locks

Frame Application: Metal or Wood

Frame Material: Metal|Wood

Function: Fail Safe

Grade: Grade 1

Holding Force: 1500 lbs.

Installation: Commercial

Keeper Size: 1/2"

Latchbolt Accommodation: 1/2" - 1"

Limited Warranty: 5 Years

Lock Type: Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt

Monitoring Installation: Factory Configured

Monitoring Options: Latchbolt and locking cam monitor with auxiliary switch

Operating Voltage: 24 VDC

Origin: USA

Pack Height: 2.5"

Pack Length: 12.25"

Pack Qty: 1

Pack Volume: 183.75 in³

Pack Width: 6"

Series: 310 Series

Shim Type: NA

Ship Weight: 3.2 lbs.

Strike: 310-2 24D Fail Safe Electric Strike

Strike Body Depth (in): NA

Strike Body Height (in): NA

Subtype: Electric Strikes

Surface Mounting: Cutting required

Tamper Resistant: Yes

Type: Electronics

Unit of Measure: Each

Upc: 740090045382

Voltage: 12|24

Warranty: SecuriCare five-year, no fault, no questions asked warranty
