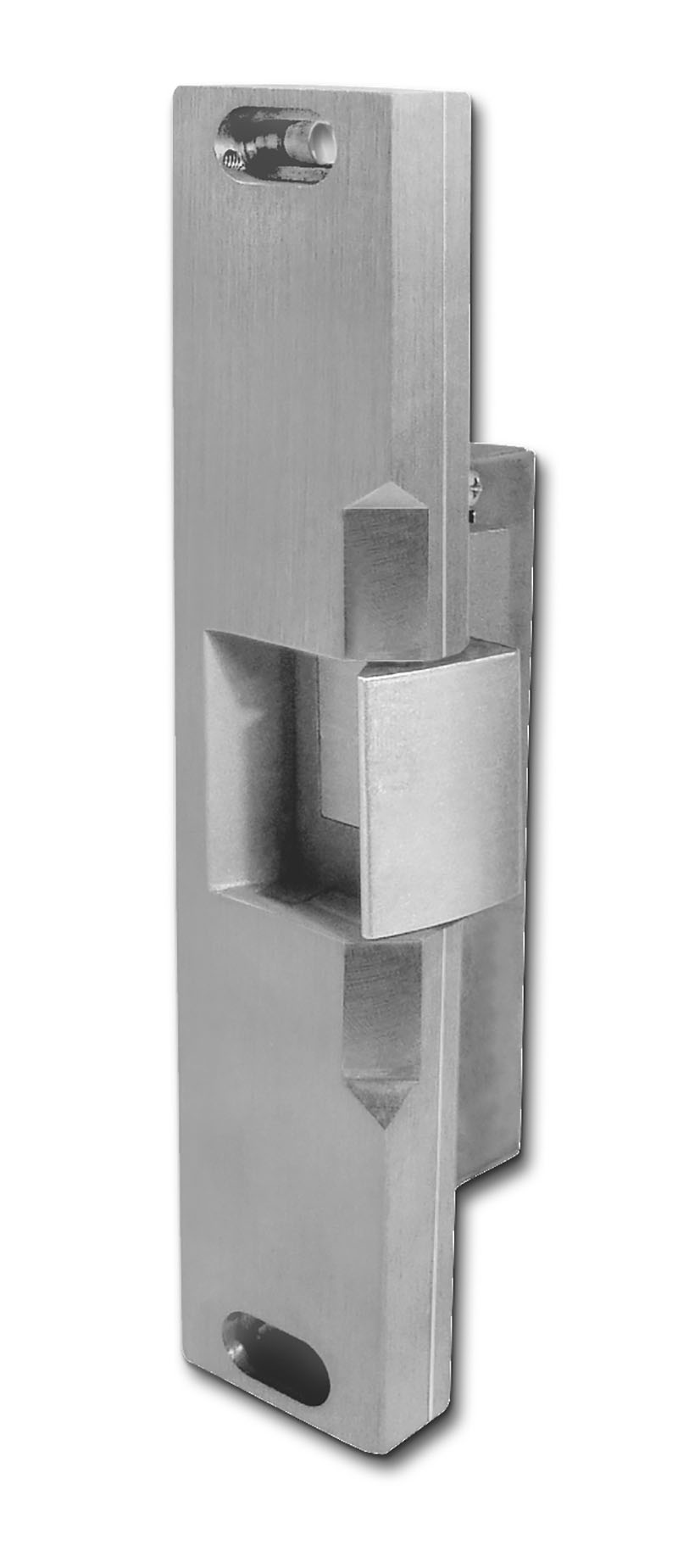

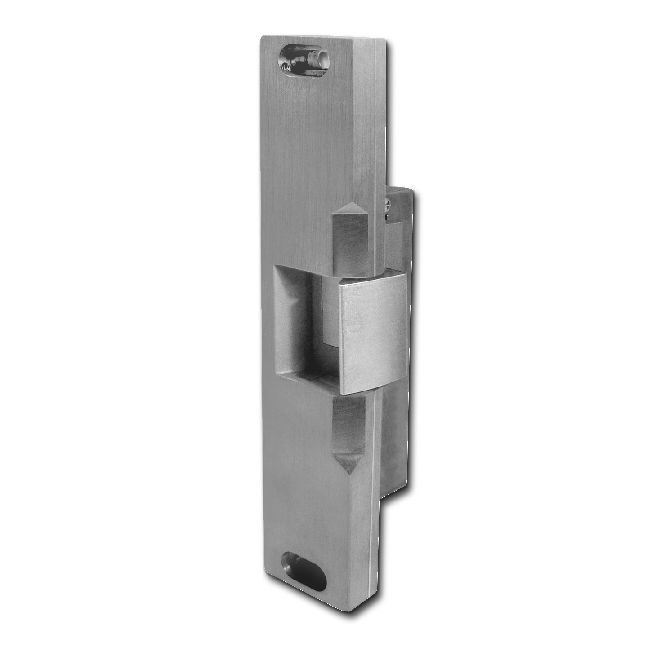

HES 3104F24D630LCBMA 310-4 24D Fail Safe Electric Strike with Latchbolt and Locking Cam Monitor Satin Stainless Steel Finish

Attributes

Adjustability: Horizontal

Amp Draw: .51 @ 12V .25 @ 24V

Application: Rim Panic Device with Pullman Latch

Baa Qualified: Yes

Base Material: Stainless Steel

Commercial Residential: Commercial

Configuration: Centered

Country of origin: USA

Dynamic Strength (ft-lbs): 70

Endurance (cycles): 1,000,000

Faceplate Size: 9" x 1-1/2"

Fail Safe | Fail Secure: Fail Secure

Finish: 630 Satin stainless steel

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: No

For Use With: Rim Exit Devices

Frame Application: Metal or Wood

Function: Fail Safe

Grade: Grade 1

Holding Force: 1500 lbs.

Installation: Commercial

Keeper Size: PK Keeper

Keeper Style: 3/4" Pullman style latchbolts

Latchbolt Accommodation: 3/4"

Limited Warranty: 5 Years

Lock Type: Exit Device

Monitoring Installation: Factory Configured

Monitoring Options: Latchbolt and locking cam monitor with auxiliary switch

Operating Voltage: 24 VDC

Origin: USA

Pack Height: 2.5"

Pack Length: 12.25"

Pack Qty: 1

Pack Volume: 183.75 in³

Pack Width: 6"

Series: 310 Series

Ship Weight: 3.6 lbs.

Strike: 310-4 24D Fail Safe Electric Strike with Latchbolt and Locking Cam Monitor

Strike Body Depth (in): 1.71

Strike Body Height (in): 9

Strike Body Width (in): 1.75

Subtype: Electric Strikes

Switch Type: Latchbolt, Locking Cam Monitor with Auxiliary Switch

Tamper Resistant: Yes

Type: Electronics

Unit of Measure: Each

Upc: 740090047607

Voltage: 12|24

Warranty: SecuriCare five-year, no fault, no questions asked warranty
