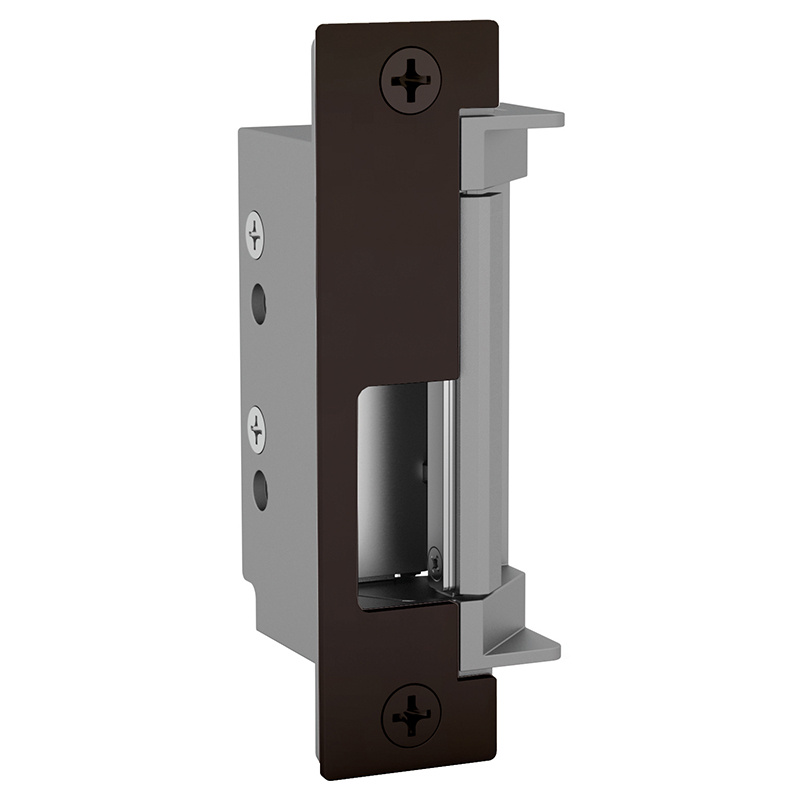

HES 4500C-613E-LBSM Fire-Rated Electric Strike KitHES 4500C-613E-LBSM Fire-Rated Electric Strike Kit delivers robust security with its Grade 1 construction and fail safe/fail secure operation. Designed for installation in 2" UL 10C fire-rated frames, this electric strike features a low-profile design at just 1-3/8" deep, making it ideal for tight spaces. Crafted from heavy-duty stainless steel, its unique keeper pin locking mechanism ensures reliability, exceeding the ratings of both the frame and locking hardware. With a striking strength of 3,000 lbs and an impressive endurance rating of 1 million cycles, this electric strike is built to stand the test of time. The 4500C kit includes two interchangeable faceplates, accommodating most cylindrical and mortise latchbolts without deadbolts, enhancing its versatility for various installations. Additional features include a latchbolt strike monitor, tamper-resistant design, and a plug-in connector for easy installation. The electric strike operates on 12/24 VDC and is suitable for both commercial and residential applications. Available in an elegant oil-rubbed bronze finish, the HES 4500C-613E-LBSM is a low-profile, heavy-duty solution for fire-rated door security, ensuring peace of mind in any environment.
Fire-Rated Electric Strike Kit
Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Low Profile, Fire Rated, Latchbolt Strike Monitor, Oil Rubbed Bronze
The 4500C series electric strike is designed for installation in 2" UL 10C fire-rated frames with 1/2" drywall penetration. The 4500C features a low profile 1-3/8" depth, heavy-duty stainless steel construction. Its strength is derived from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware. Each Complete Pac conveniently paris the reliabilty of an HES electric strike with the flexibility of multiple faceplates in a single simple package. The 4500C includes a 4500 strike body and two interchangeable faceplates to accommodate most cylindrical and mortise latchbolts (without deadbolts).
The low profile, heavy duty, fire-rated solution.
The 4500C features a low profile 1-3/8" depth, heavy-duty stainless steel construction. Its strength is derived from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware.
Standard Features
- Stainless steel construction
- Tamper-resistant
- Static strength: 1,500 lbs
- Dynamic strength: 100 ft-lbs
- Endurance: 1 million cycles
- Field selectable fail secure/fail safe
- Two faceplates provided to accommodate a variety of locksets
- Non-handed
- Internally mounted solenoid
- Accommodates up to a 3/4" latchbolt
- Strike body depth: 1-3/8"
- Plug-in connector
- Trim enhancer
- Full keeper shims for horizontal adjustment
Optional Features
- LBM Latchbolt monitor
- LBSM Latchbolt strike monitor
Finishes
- 605 Bright Brass
- 606 Satin Brass
- 612 Satin Bronze
- 613 Bronze Toned
- 629 Bright Stainless Steel
- 630 Satin Stainless Steel
Attributes
Amp Draw: .24 @ 12V .12 @ 24V
Application: 3/4" Latchbolt
Baa Qualified: Yes
Base Material: Bronze
Commercial Residential: Commercial
Configuration: Universal
Country of origin: USA
Faceplate Size: 4-7/8" x 1-1/4"
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Cylindrical Locks, Mortise Exit and Latch Locks
Frame Application: Metal or Wood
Function: Fail Safe/Fail Secure
Grade: Grade 1
Holding Force: 3000 lbs.
Installation: Commercial
Keeper Size: 3/4"
Limited Warranty: 5 Years
Operating Voltage: 12/24 VDC
Origin: USA
Pack Height: 2.25"
Pack Length: 10.5"
Pack Qty: 1
Pack Volume: 79.73 in³
Pack Width: 3.38"
Series: 4500C Series Electric Strikes
Ship Weight: 1.3 lbs.
Subtype: Electric Strikes
Switch Type: Latchbolt Strike Monitor
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
