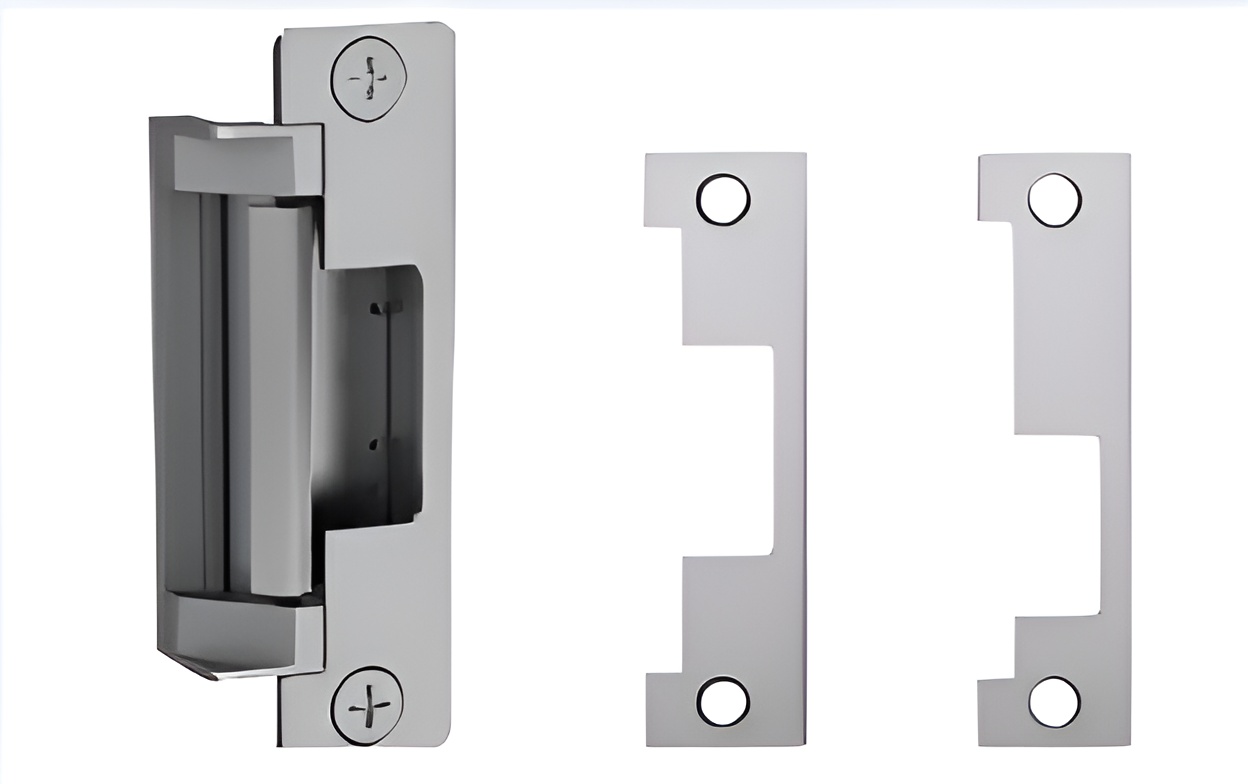

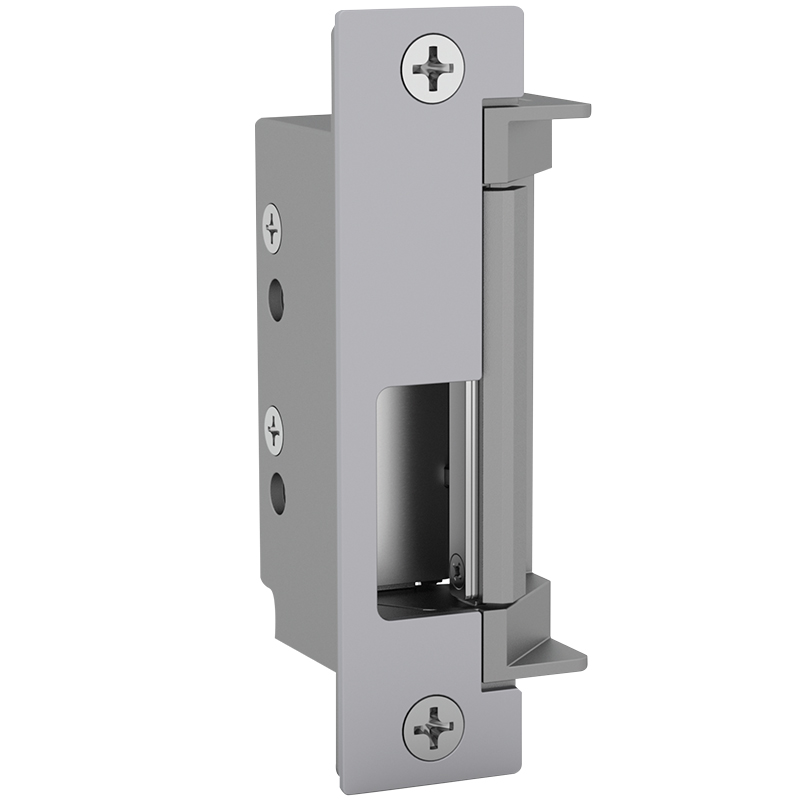

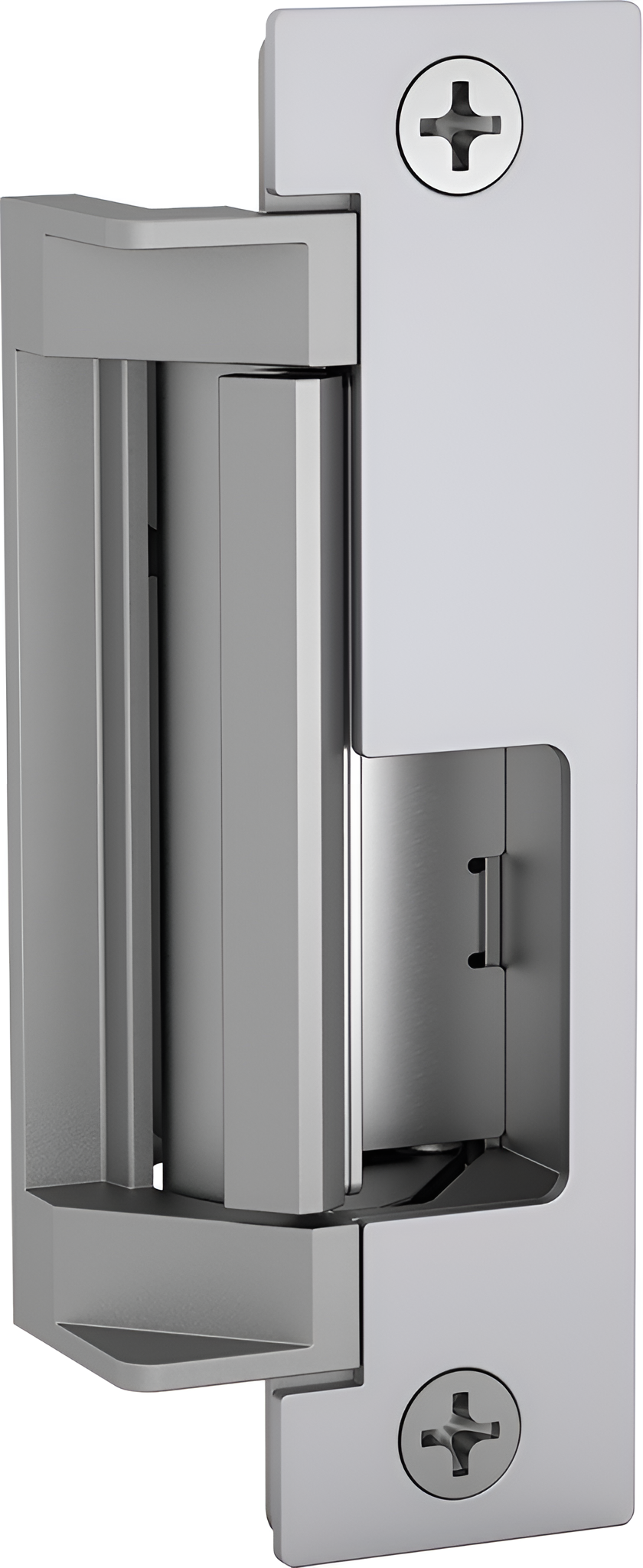

HES 4500C630LBM 12VDC / 24VDC Heavy Duty Electric Strike with Latchbolt Monitor Satin Stainless Steel Finish

Attributes

Access Type: Electric Strike

Adjustability: Horizontal

Alternate Codes: 4500C-630-LBM, 4500C630LBM, 4500C-LBM-630, 4500CLBM630, HES4500C-LBM-630

Amp Draw: .24 @ 12V .12 @ 24V

Application: 3/4" Latchbolt

Baa Qualified: Yes

Base Material: Stainless Steel

CAL FIRE, 3776-1654: 0100

Category: Access Control, Electric Strikes

Certified: Yes

Commercial Residential: Commercial

Configuration: Universal

Country of origin: USA

Door And Lock Sensor: Latch Monitor

Door Application: Electric Strikes

Dynamic Strength (ft-lbs): 100

Electric Strike Compatibility: 3/4in Latch, Cylindrical Deadlatch, Mortise Deadlatch

Electric Strike Faceplate Size: 1-1/4" x 4-7/8"

Electric Strike Faceplate Type: Complete One Box Solution, Cylindrical Locks, Mortise Locks With Deadlatch Only

Electric Strike Features: Body Depth 1-3/8", Horizontal Adjustment, Internally Mounted Solenoid, Low Profile, Tamper Resistant, Trim Enhancer Included

Electric Strike Series: 4500

Endurance (cycles): 1,000,000

Faceplate Size: 4-7/8" x 1-1/4"

Fail Safe | Fail Secure: Field selectable fail safe/fail secure

Finish: 630 Satin stainless steel

Finish Code: US32D

Finish Color: Satin, Satin Stainless Steel

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 3 Hours {A}

For Use With: Cylindrical Locks, Mortise Exit and Latch Locks

Frame Application: Metal or Wood

Frame Material: Metal|Wood

Function: Fail Safe/Fail Secure

Grade: Grade 1

Handing: Non-handed

Holding Force: 3000 lbs.

Installation: Commercial

Keeper Size: 3/4"

Latchbolt Accommodation: Up to 3/4"

Limited Warranty: 5 Years

Lock Type: Cylindrical Lock|Mortise Lock

Manufacturer: Hanchett Entry Systems HES

Monitoring Installation: Factory Configured

Monitoring Options: Latchbolt Monitoring|Latchbolt Strike Monitor

Operating Voltage: 12/24 VDC

Origin: USA

Pack Height: 2.25"

Pack Length: 10.5"

Pack Qty: 1

Pack Volume: 79.73 in³

Pack Width: 3.38"

Series: 4500 Series

Ship Weight: 1.3 lbs.

Static Strength (lbs): 1500

Strike: 12VDC / 24VDC Heavy Duty Electric Strike with Latchbolt Monitor

Subtype: Electric Strikes

Surface Mounting: Cutting required

Switch Type: Latchbolt Monitor

Tamper Resistant: Yes

Type: Electronics

Unit of Measure: Each

Voltage: 12/24

Voltage Type: Field Selectable, VDC - Direct
