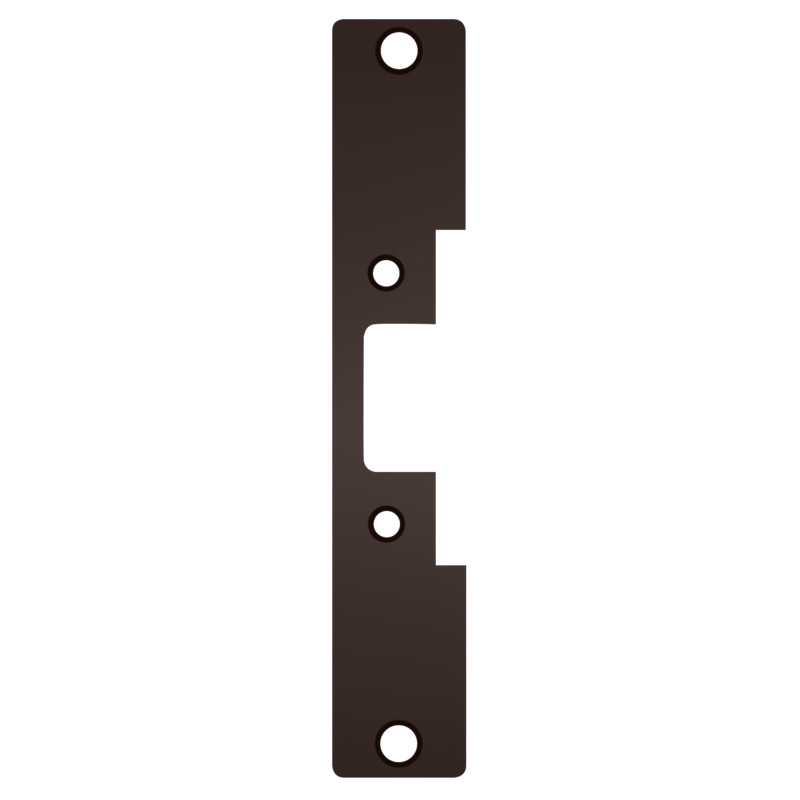

HES 502 613E 5000/5200 Series Faceplate is designed to enhance the performance and functionality of your cylindrical locksets. Measuring 7-15/16" x 1-7/16", this flat faceplate with radius corners is finished in a sophisticated Oil Rubbed Bronze, making it a perfect match for various architectural styles. The durable aluminum construction ensures long-lasting use, while the universal mounting tabs facilitate easy installation. This faceplate is part of the 5000 Series, known for its compact and high-performance electric strikes tailored for low-profile openings with limited space behind the jamb. The unique keeper pin locking design provides exceptional strength, exceeding the ratings of the door, frame, and locking hardware. It accommodates latchbolts up to 5/8" throw and features a field-selectable fail secure/fail safe option for versatile security applications. With a static strength of 1,500 lbs and dynamic strength of 70 ft-lbs, the HES 502 is built to withstand high traffic and potential tampering. Its non-handed design and dual voltage capabilities (12 or 24 VDC/VAC) make it adaptable for various installations. Backed by a five-year limited warranty, this faceplate represents a reliable choice for both commercial and residential settings.
5000/5200 Series Faceplate
Faceplate Only, 5000/5200 Series, 7-15/16" x 1-7/16", Flat with Radius Corners, Oil Rubbed Bronze
505 (7-15/16" x 1-7/16", radius corners & flat faceplate) For use with cylindrical locksets. Includes universal mounting tabs. Aluminum frames
The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb.
Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.
Frame application
Electrical
Standard Features
Optional Features
Finishes
Baa Qualified: Yes
Base Material: Bronze
Commercial Residential: Commercial
Country of origin: USA
Faceplate Size: 1-15/16" x 1-7/16"
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: No
Fire Rating: No
Frame Application: Aluminum
Grade: Grade 1
Installation: Commercial
Limited Warranty: 5 Years
Origin: USA
Pack Height: 0.5"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 9.5 in³
Pack Width: 2"
Series: 5000 Series Electric Strikes
Ship Weight: 0.1 lbs.
Subtype: Electric Strike Faceplates
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 7.40091E+11
