HES 504 BSP 5000/5200 Series Faceplate

HES 504 BSP 5000/5200 Series Faceplate offers a reliable solution for your door security needs with its robust design and versatile application. Measuring 10" x 1-3/8", this flat faceplate with radius corners is specifically engineered for use with cylindrical locksets, ensuring a seamless fit for your installations. Crafted from durable aluminum and steel, it is suitable for both metal and wood frame applications. This faceplate is part of the high-performance 5000 series electric strikes, designed for low-profile openings where space is limited. Its unique keeper pin locking design provides exceptional strength, allowing it to exceed the ratings of conventional frames and locking hardware. The field-selectable fail secure/fail safe feature enhances flexibility, accommodating latchbolts with up to 5/8" throw. With impressive static strength of 1,500 lbs and dynamic strength of 70 ft-lbs, the HES 504 ensures enduring performance, boasting an endurance rating of 500,000 cycles. The dual voltage capability (12 or 24 VDC/VAC) and non-handed installation make it user-friendly, while the included trim enhancer offers a polished finish. Backed by a five-year limited warranty, this faceplate is an excellent choice for commercial applications, delivering both security and reliability.

5000/5200 Series Faceplate

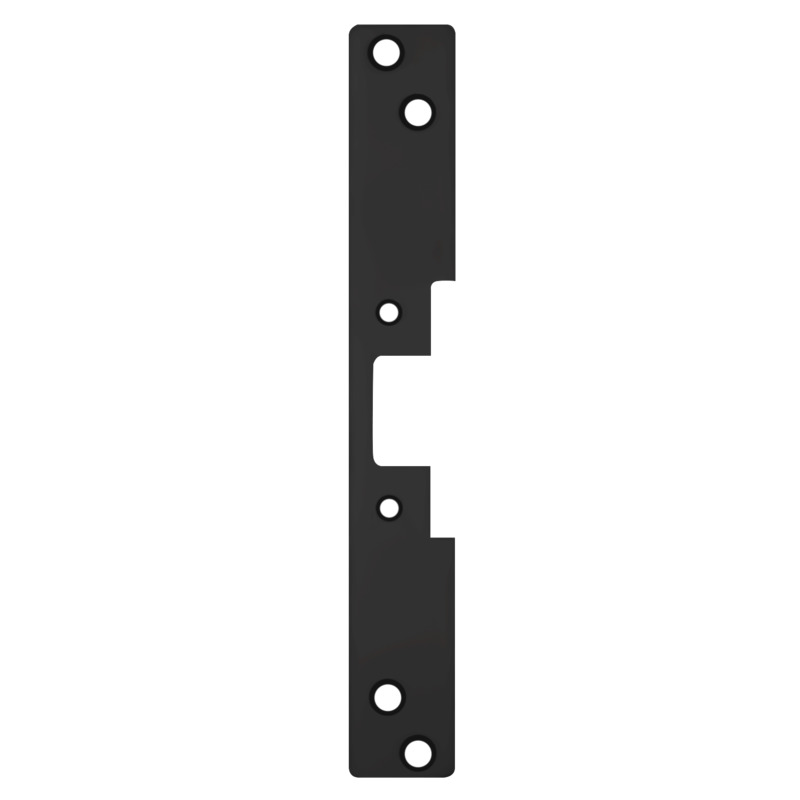

Faceplate Only, 5000/5200 Series, 10" x 1-3/8", Flat wit Radius Corners, Black Suede Powder Coat Finish

510 (10" x 1-3/8", radius corners & flat faceplate) For use with cylindrical locksets. Four point mounting for wood installations.

The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb.

Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.

Frame application

• Metal
• Wood

Electrical

• .24 Amps at 12 VDC/VAC
• .12 Amps at 24 VDC/VAC
• DC continuous duty/AC intermittent duty only

Standard Features

• Tamper resistant
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Endurance 500,000 cycles
• Field selectable fail secure/ fail safe
• Dual voltage 12 or 24 VDC/VAC
• Non-handed
• Internally mounted solenoid
• Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)
• Strike body depth 1-1/16"
• Plug-in connector
• Trim enhancer included
• Five year limited warranty

Optional Features

• LBM - Latchbolt monitor

Finishes

• 630 - Satin stainless steel
• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 613 - Bronze toned
• 629 - Bright stainless steel
• BLK - Black
• *Complete Pacs are only available in the 630 finish
