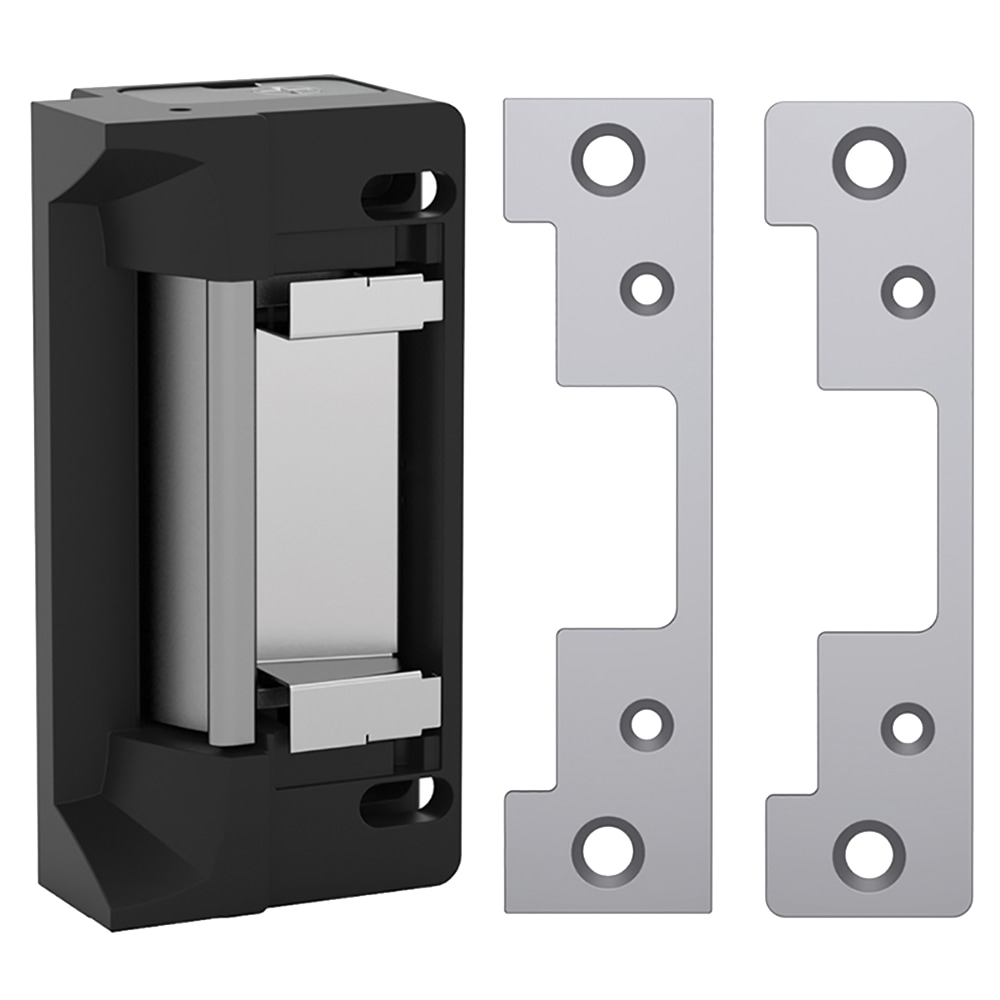

The 5200 series electric strike features an in-frame horizontal adjustable design to simplify the installation process. This feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after the strike has been installed. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to a 3/4" throw. The 5200 is also available in a Complete Pac which pairs the strike body with the faceplates and mounting hardware all in one simple convenient package.
Attributes
Manufacturer surcharge: $ 0.0
Access Type: Electric Strike
Adjustability: Horizontal
Alternate Codes: 5200C-LBM-630, 5200CLBM630, HES5200C-LBM-630
Amp Draw: .24 @ 12V .12 @ 24V
Baa Qualified: Yes
Base Material: Stainless Steel
Category: Access Control, Electric Strikes
Commercial Residential: Commercial
Complete Pack Options: C- includes 501 and 501A faceplates
Configuration: Centered
Country of origin: USA
Door And Lock Sensor: Latch Monitor
Door Application: Electric Strikes
Dynamic Strength (ft-lbs): 70
Electric Strike Compatibility: 3/4in Latch, Cylindrical Locks
Electric Strike Faceplate Size: 1-1/4" x 4-7/8"
Electric Strike Faceplate Type: Aluminum Jambs, Complete Latchbolt Faceplates Pac Includes 501 and 501A, Hollow Metal Jambs
Electric Strike Features: Body Depth 1-3/16", Low Profile, Plug-in Connector, Trim Enhancer Included
Electric Strike Series: 5200
Endurance (cycles): 1,000,000
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 630/US32D
Finish Code: US32D
Finish Color: Satin, Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
For Use With: Cylindrical Locks
Frame Application: Metal or Wood
Frame Material: Metal|Wood
Function: Fail Secure
Grade: Grade 1
Holding Force: 1500 lbs.
Installation: Commercial
Keeper Size: 3/4"
Latchbolt Accommodation: 5/8" - 3/4"
Limited Warranty: 5 Years
Lock Type: Cylindrical Lock
Manufacturer: Hanchett Entry Systems HES
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Monitoring|Latchbolt Strike Monitor
Operating Voltage: 12/24 VDC
Origin: USA
Pack Height: 2.25"
Pack Length: 10.5"
Pack Qty: 1
Pack Volume: 79.73 in³
Pack Width: 3.38"
Series: 5200 Series Electric Strikes
Ship Weight: 1.3 lbs.
Strike Body Depth (in): 1.1875
Strike Body Height (in): 4.87
Strike Body Width (in): 1.25
Subtype: Electric Strikes
Surface Mounting: Cutting required
Switch Type: Latchbolt Monitor
Tamper Resistant: Yes
Type: Electric Strikes
Unit of Measure: Each
Upc: 7.4009E+11
Voltage: 12/24
Voltage Type: Field Selectable, VDC - Direct
Warranty: SecuriCare five-year, no fault, no questions asked warranty
