Attributes

Access Type: Electric Strike

Adjustability: Horizontal

Alternate Codes: 5200C-LBSM-630, 5200CLBSM630, HES5200C-LBSM-630

Amp Draw: .24 @ 12V .12 @ 24V

Application: CM EL

Baa Qualified: Yes

Base Material: Stainless Steel

Category: Access Control, Electric Strikes

Clazz: HS

Color: Satin Stainless Steel

Commercial Residential: Commercial

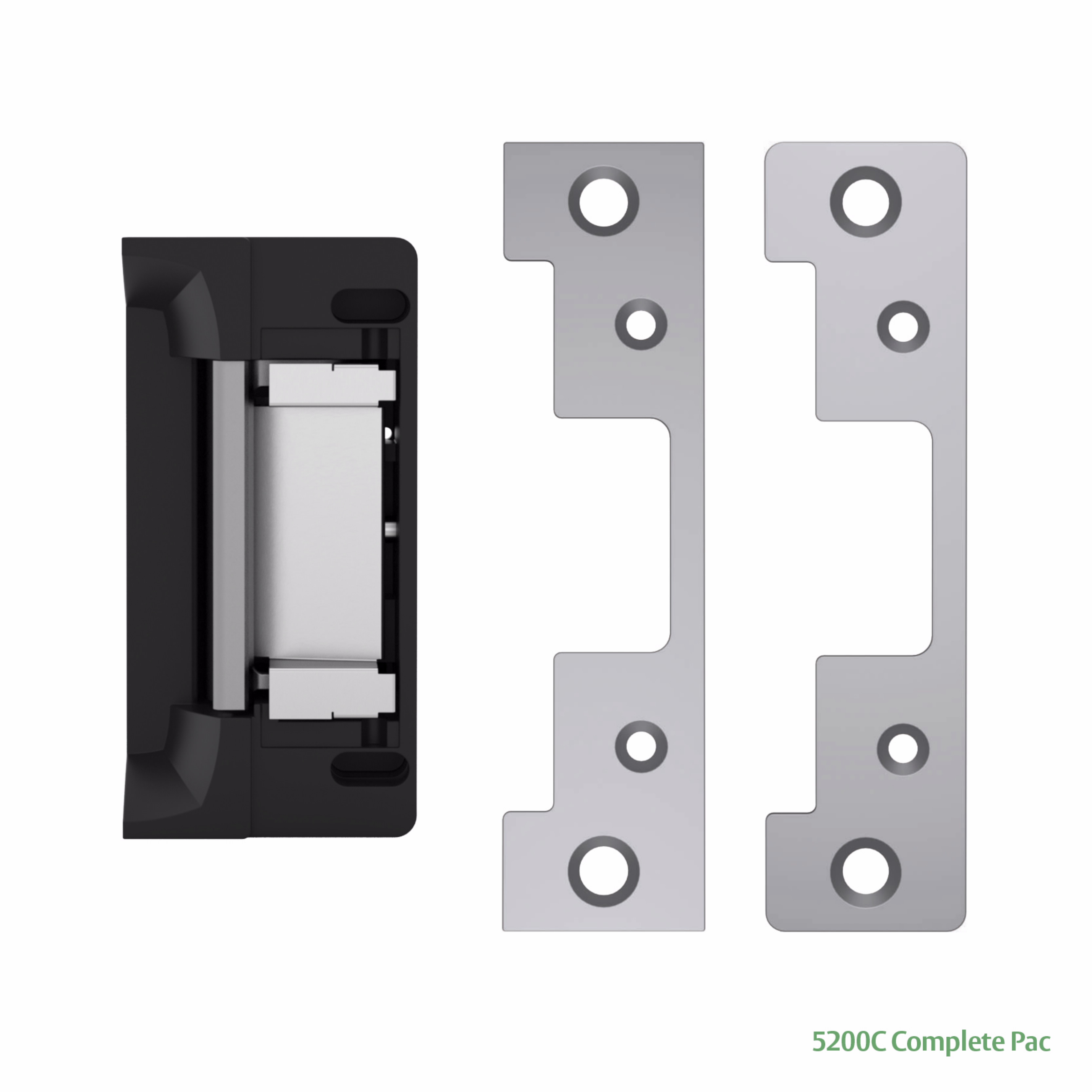

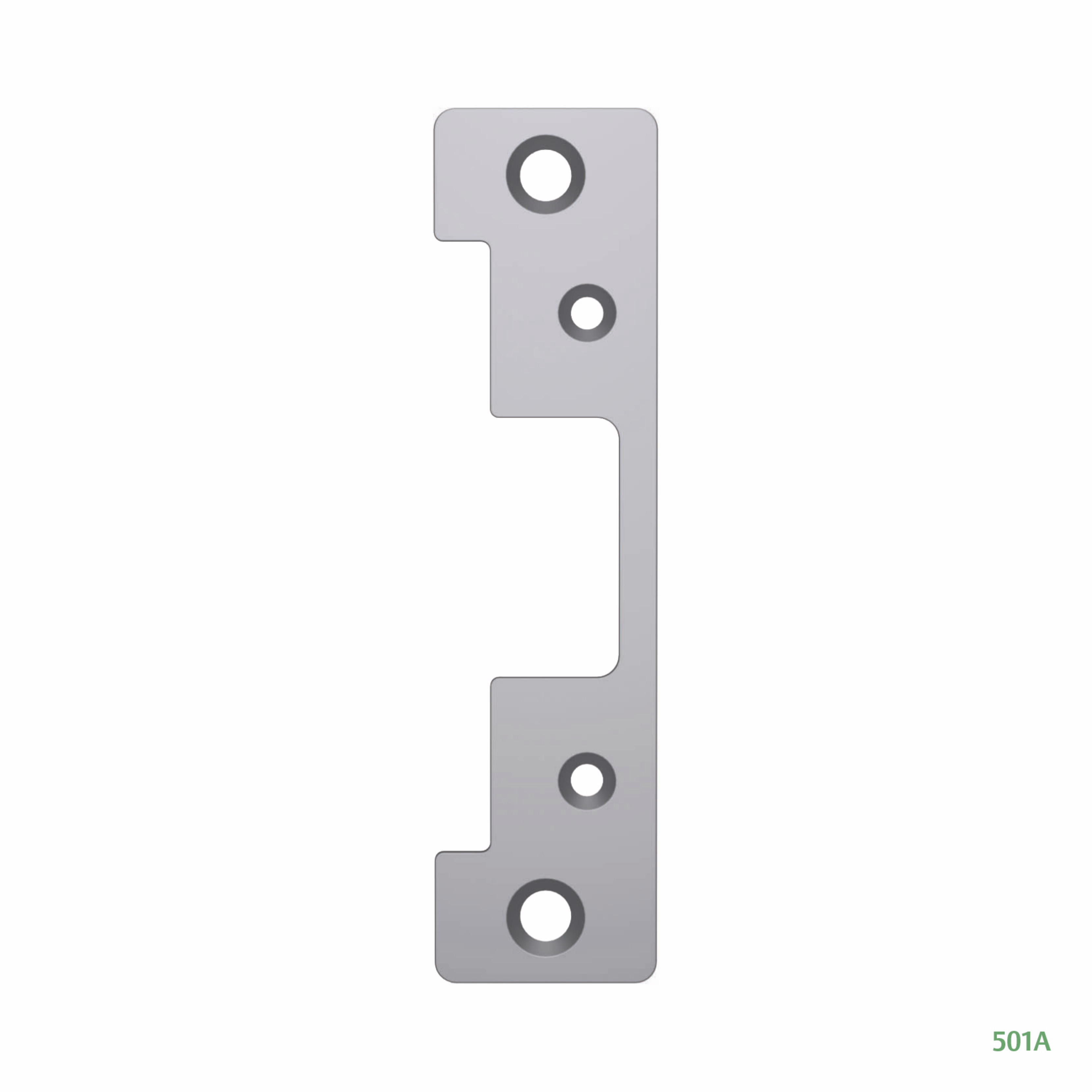

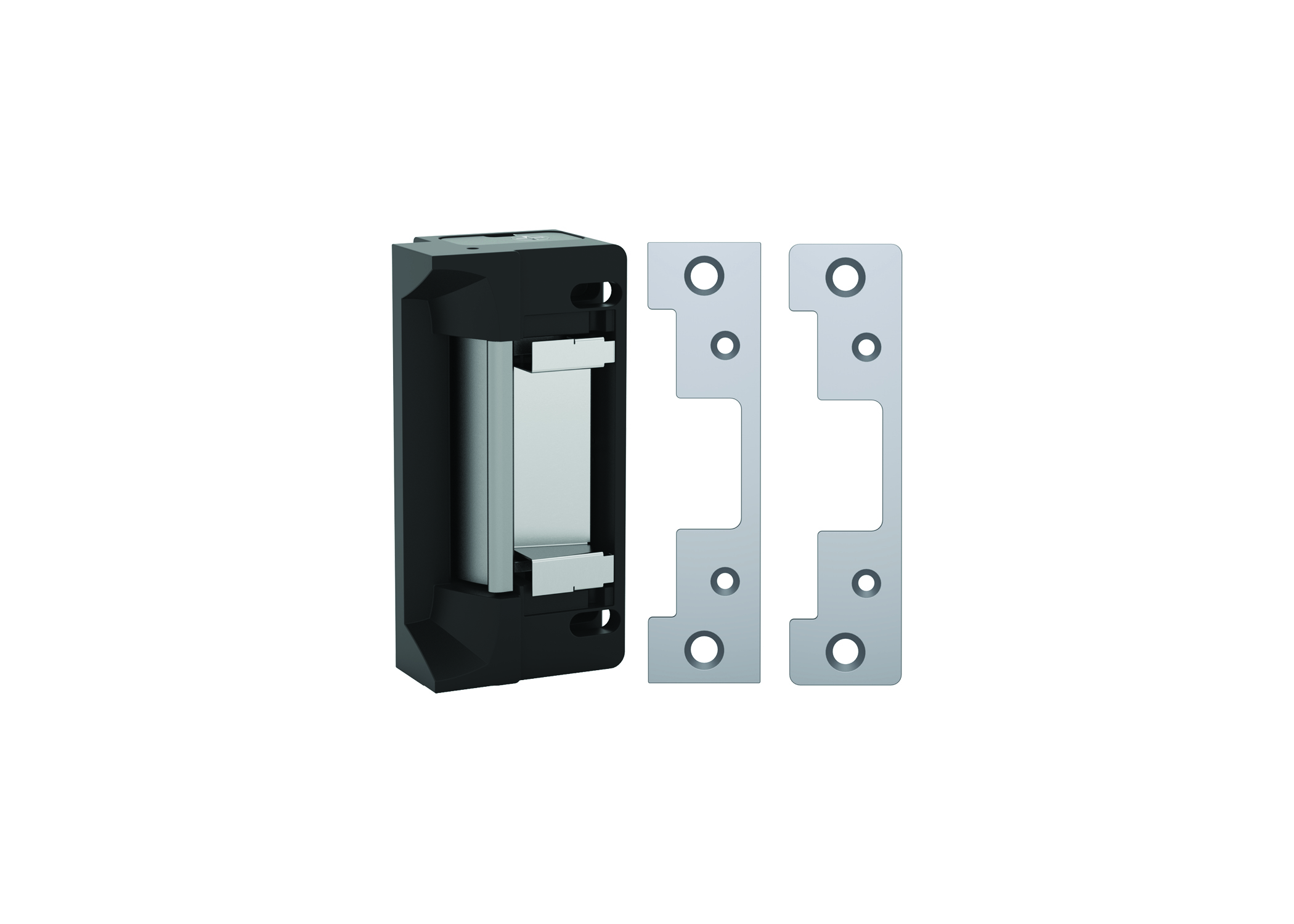

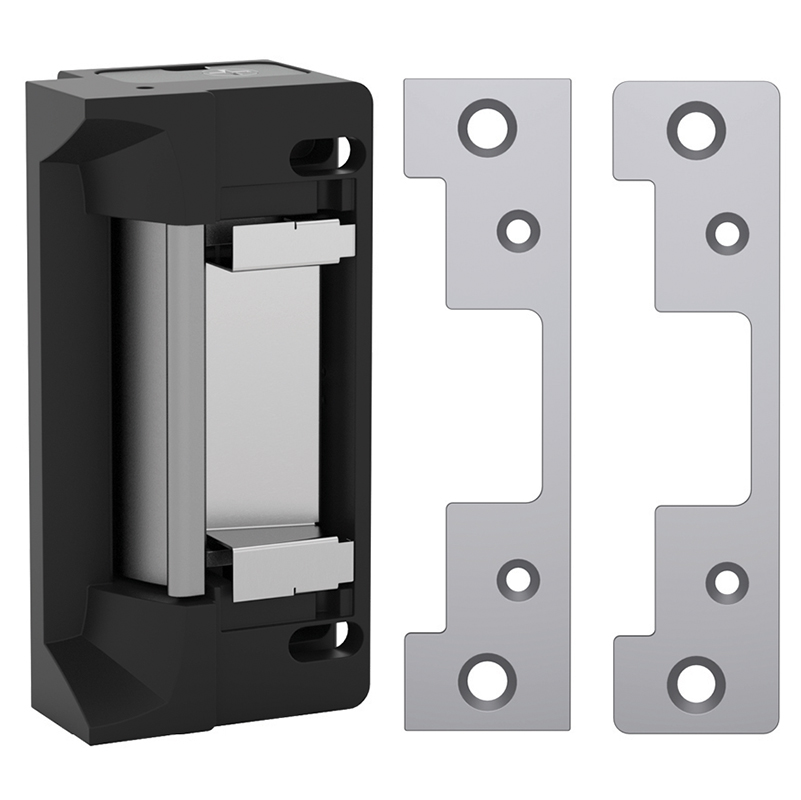

Complete Pack Options: C- includes 501 and 501A faceplates

Configuration: Centered

Country of Origin: Usa

Country of origin: USA

Door And Lock Sensor: Latch Monitor, Strike Monitor

Door Application: Electric Strikes

Dynamic Strength (ft-lbs): 70

Electric Strike Compatibility: 3/4in Latch, Cylindrical Locks

Electric Strike Faceplate Size: 1-1/4" x 4-7/8"

Electric Strike Faceplate Type: Aluminum Jambs, Complete Latchbolt Faceplates Pac Includes 501 and 501A, Hollow Metal Jambs

Electric Strike Features: Body Depth 1-3/16", Low Profile, Plug-in Connector, Trim Enhancer Included

Electric Strike Series: 5200

Endurance (cycles): 1,000,000

Fail Safe | Fail Secure: Field selectable fail safe/fail secure

Finish: Satin Stainless Steel

Finish Code: US32D

Finish Color: Satin, Satin Stainless Steel

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: No

For Use With: Cylindrical Locks

Frame Application: Metal or Wood

Frame Material: Metal|Wood

Function: Fail Secure

Grade: Grade 1

Holding Force: 1500 lbs.

Installation: Commercial

Item Class Description: 12VDC / 24VDC Electric Strike with 501 and 501A Faceplate and Latchbolt Strike Monitor

Item Type Keyword: Strike

Keeper Size: 3/4"

Latchbolt Accommodation: 5/8" - 3/4"

Limited Warranty: 5 Years

Lock Type: Cylindrical Lock

Manufacturer: Hanchett Entry Systems HES

Material: Stainless Steel

Monitoring Installation: Factory Configured

Monitoring Options: Latchbolt Monitoring|Latchbolt Strike Monitor

Number Of Inners: 1

Operating Voltage: 12/24 VDC

Origin: USA

Pack Height: 2.25"

Pack Length: 10.5"

Pack Qty: 1

Pack Volume: 79.73 in³

Pack Width: 3.38"

Product Dimension: 4-7/8" x 1-21/32" x 1-3/16"

Series: 5200 Series

Ship Weight: 1.3 lbs.

Strike: 12VDC / 24VDC Electric Strike with 501 and 501A Faceplate

Strike Body Depth (in): 1.1875

Strike Body Height (in): 4.87

Strike Body Width (in): 1.25

Subtype: Electric Strikes

Surface Mounting: Cutting required

Switch Type: Latchbolt Strike Monitor

Tamper Resistant: Yes

Type: Electronics

Unit of Measure: Each

Upc: 740090043517

Voltage: 12/24

Voltage Type: Field Selectable, VDC - Direct

Warranty: SecuriCare five-year, no fault, no questions asked warranty
