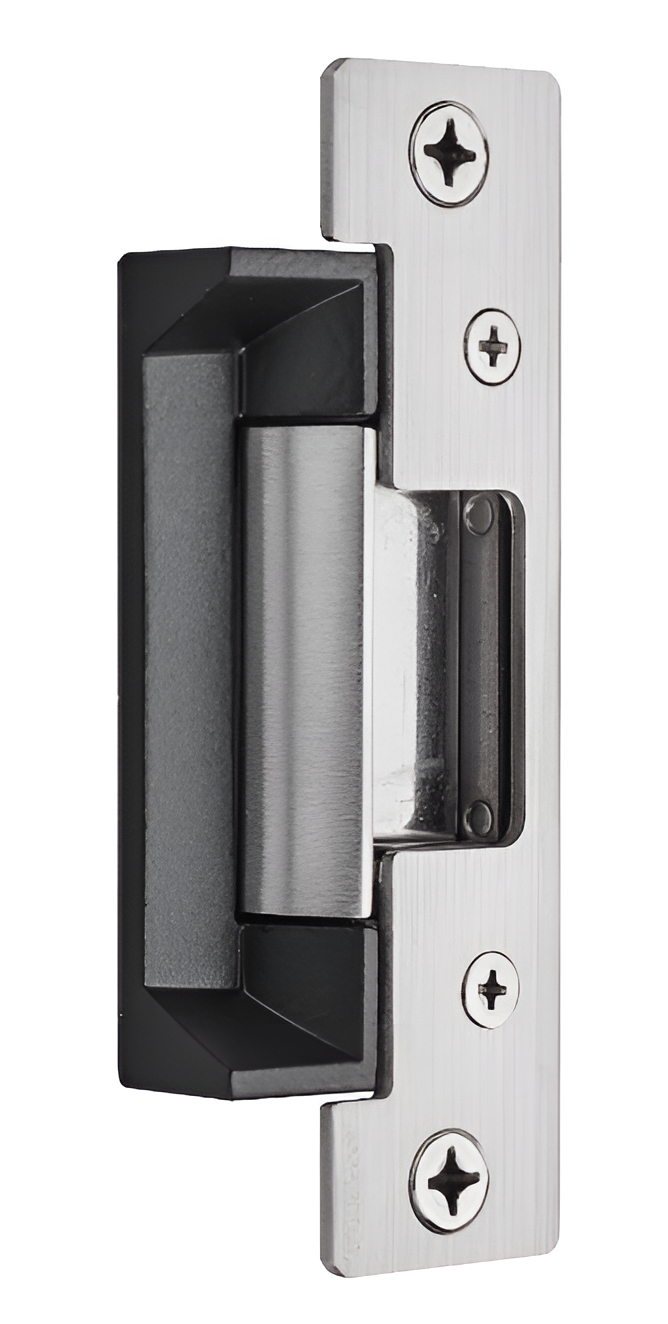

The 5300 Series Electric Strike is a fire-rated compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5300 to exceed the ratings of the frame, door and locking hardware. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 5/8" throw.
Attributes
Manufacturer surcharge: $ 0.0
Access Type: Electric Strike
Adjustability: None
Alternate Codes: 5300C-630, 5300C630
Amp Draw: 240 mA @12V 120 mA @ 24V
Ansi: A156.31
Burglar Rated: Yes
CAL FIRE, 3776-1654: 0502
Category: Access Control, Electric Strikes
Commercial Residential: Commercial
Complete Pack Options: C- includes 501 and 501A faceplates
Door Application: Electric Strikes
Dynamic Strength (ft-lbs): 70
Electric Strike Compatibility: 1/2 -5/8in Latch, Cylindrical Locks
Electric Strike Faceplate Size: 1-1/4" x 4-7/8"
Electric Strike Faceplate Type: Aluminum Jambs, Complete Latchbolt Faceplates Pac Includes 501 and 501A, Hollow Metal Jambs
Electric Strike Features: Body Depth 1-1/16", Low Profile, Plug-in Connector, Trim Enhancer Included, UL Fire Rated
Electric Strike Series: 5300
Endurance (cycles): 500,000
Faceplate Size: 4-7/8"x 1-1/4"
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: Satin Stainless Steel
Finish Code: US32D
Finish Color: Satin, Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: Yes {Variable}
For Use With: Cylindrical Locks
Frame Application: Metal or Wood
Frame Material: Metal|Wood
Function: Fail Safe/Fail Secure
Grade: Grade 1
Hazardous Material: NO
Holding Force: 1500 lbs.
Installation: Commercial
Latchbolt Accommodation: Up to 5/8 in
Limited Warranty: 5 Years
Lock Type: Cylindrical Lock
Manufacturer: Hanchett Entry Systems HES
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Monitoring
Operating Voltage: 12/24 VDC
Pack Qty: 1
Series: 5300 Series Electric Strikes
Strike Body Depth (in): 1.0625
Strike Body Height (in): 4.875
Subcategory: Electric Strikes
Subtype: Electric Strikes
Surface Mounting: Cutting required
Tamper Resistant: Yes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: 1034 & 294
Unit of Measure: Each
Voltage: 12/24
Voltage Type: Field Selectable, VDC - Direct
Warranty: SecuriCare five-year, no fault, no questions asked warranty
