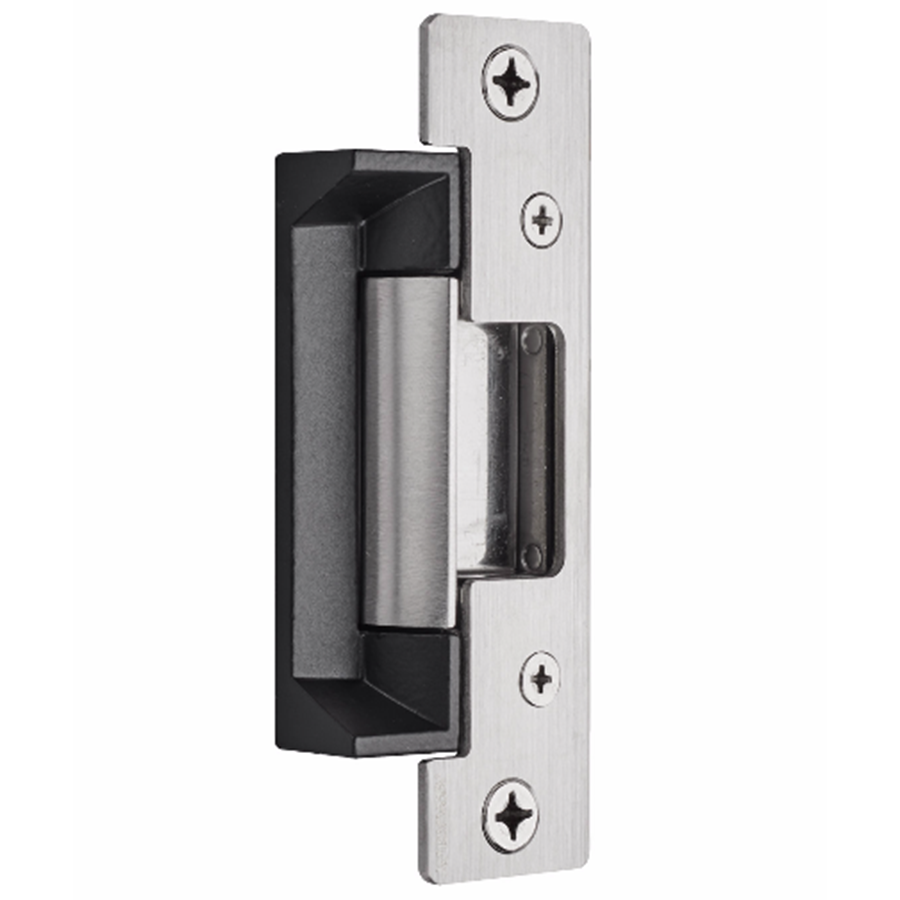

HES 5300C-630-LBM Electric Strike 12/24VDC, UL Fire Rated, 2 Faceplates, Latchbolt Monitor

HES 5300C-630-LBM Electric Strike is a compact, high-performance solution ideal for low-profile openings where space is limited. This UL fire-rated electric strike accommodates cylindrical locks with latchbolts up to 5/8" throw, making it versatile for various installations. Its robust design features a unique keeper pin locking mechanism, allowing it to exceed the strength ratings of the frame, door, and locking hardware. Designed for ease of installation, the 5300C is field selectable for fail safe or fail secure operation, catering to specific security needs. With a static strength of 1,500 lbs and a dynamic strength of 70 ft-lbs, this electric strike ensures reliable performance. It boasts an endurance rating of 1,000,000 cycles, promising longevity in high-traffic applications. The strike includes two faceplates (501 and 501A) and offers a satin stainless steel finish for a professional appearance. Its non-handed design and plug-in connector streamline installation, while the internally mounted solenoid enhances security. With optional features such as a latchbolt monitor, the HES 5300C-630-LBM Electric Strike is an excellent choice for those seeking reliable access control solutions tailored for both metal and wood frames.

Electric Strike 12/24VDC, UL Fire Rated, Cylindrical Latches Max 5/8in Throw, 2 Faceplates 501 501A (4-7/8in x 1-1/4in) with Latchbolt Monitor, 630/US32D Stainless Steel

The 5300 Series Electric Strike is a fire-rated compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5300 to exceed the ratings of the frame, door and locking hardware. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 5/8" throw.

Features:

• Tamper resistant
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs.
• Endurance 1,000,000 cycles
• Field selectable fail secure/ fail safe
• Non-handed
• Internally mounted solenoid
• Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)
• Strike body depth 1-1/16"
• Plug-in connector
• Trim enhancer included
• Dual voltage 12 or 24 VDC/VAC
• C - Complete Electric Strike; includes the 501 and 501A faceplates

Specifications:

• Surface Mounting: Cutting required
• Frame Material: Metal|Wood
• Fail Safe | Fail Secure : Field selectable fail safe/fail secure
• Grade: Grade 1
• Lock Type: Cylindrical Lock
• Strike Body Depth (in): 1.0625
• Strike Body Height (in): 4.875
• Certifications: ANSI/BHMA A156.31

Accessories:

• 150 - Strike latch guard
• HESCUT-MTK - Metal template kit
• 2001M - Plug-in bridge rectifier
• 2004M - ElectroLynx® adapter
• 2005M3 - SMART Pac® III
• 2006M - Plug-in buzzer
• 5104-1/2 1/2" - [12.7mm] stackable lip extension
• 5104-1 1" - [25.4mm] stackable lip extension
• 5104-1-1/4 - 1-1/4" [32mm] stackable lip extension

Optional Features:

• LBM - Latchbolt monitor
• LBSM - Latchbolt Strike Monitor

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 612 - Satin Bronze
• 613E - Dark Oxidized Satin Brass
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• BSP - Black Suede Powder
