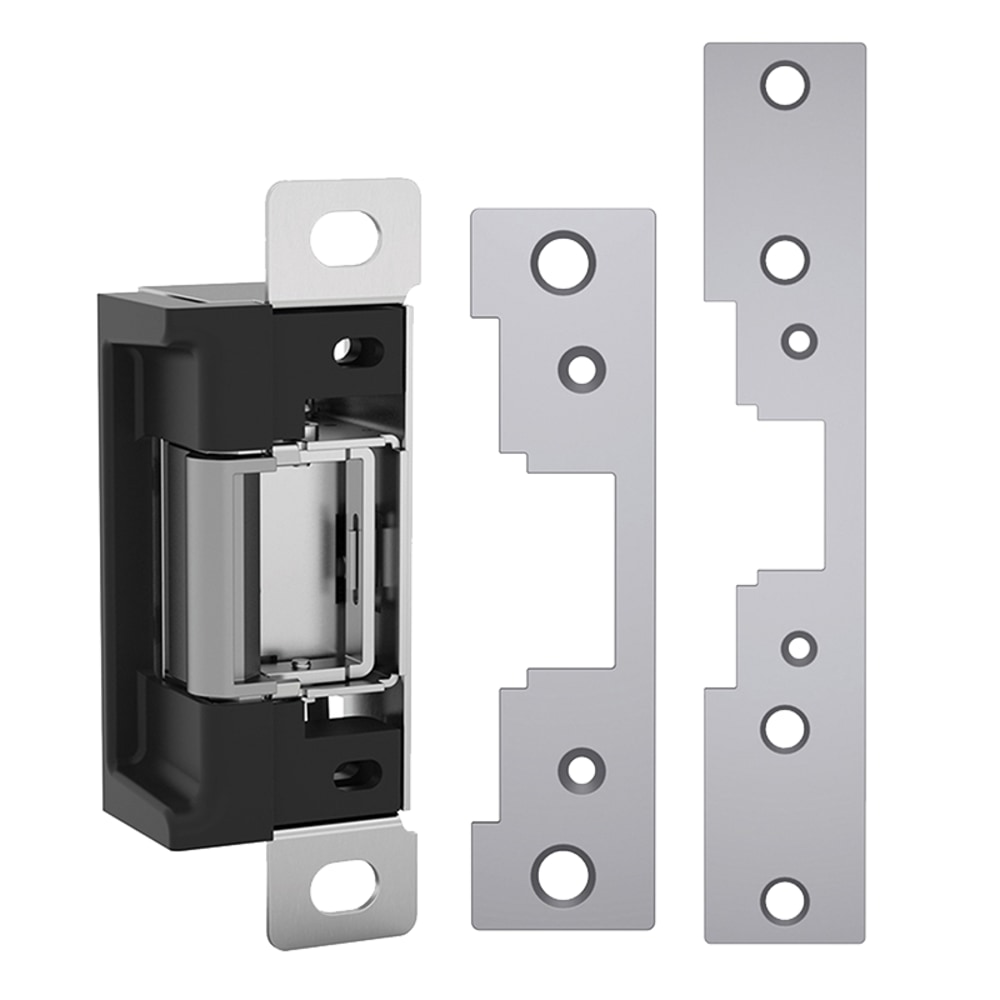

The 7000 Series offers two solutions to address preloaded doors. The in-frame adjustable feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after installation. The preload release function allows the electric strike to operate smoothly throughout the year under varying loads on the door caused by air-conditioning pressure, changes in the weather, warped doors or doors with weather stripping that often bind standard electric strikes. This unit accommodates cylindrical latchbolts up to 5/8" throw and rim exit latchbolts up to 3/4" throw.
Attributes
Ship via: Can Ship UPS
Access Type: Electric Strike
Adjustability: Horizontal
Alternate Codes: 7000C-LBM-630, 7000CLBM630, HES7000C-LBM-630
Amp Draw: .45 Amps @ 12VDC, .25 Amps @ 24VDC
Baa Qualified: Yes
Category: Access Control, Electric Strikes
Commercial Residential: Commercial
Complete Pack Options: C- includes 1LB faceplate kit for Latchbolts
Configuration: Centered
Country of origin: USA
Door And Lock Sensor: Latch Monitor
Door Application: Electric Strikes
Dynamic Strength (ft-lbs): 70
Electric Strike Compatibility: 1/2 -5/8in Latch, 3/4in Latch, Cylindrical Locks, Rim Exit (Pullman Latch)
Electric Strike Faceplate Size: 1-1/4" x 4-7/8"
Electric Strike Faceplate Type: Complete Latchbolt Faceplates Pac Includes 791 and 792
Electric Strike Features: Body Depth 1-11/16", Internally Mounted Solenoid, Plug-in Connector, Tamper Resistant
Electric Strike Series: 7000
Endurance (cycles): 1,000,000
Faceplate Shape: Flat Face, Square Corners
Faceplate Size: 4-7/8" x 1-1/4"
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 630/US32D
Finish Code: US32D
Finish Color: Satin, Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: No
For Use With: Cylindrical Locks
Frame Application: Metal or Wood
Frame Material: Metal|Wood
Function: Fail Safe/Fail Secure
Grade: Grade 1
Installation: Commercial
Keeper Size: 1/2"
Latchbolt Accommodation: Up to 5/8"
Limited Warranty: 3 Years
Lock Type: Exit Device|Cylindrical Lock
Manufacturer: Hanchett Entry Systems HES
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Monitoring
Operating Voltage: 12/24 VDC
Origin: USA
Pack Height: 2.25"
Pack Length: 10.5"
Pack Qty: 1
Pack Width: 3.25"
Pre Load: 15 lbs.
Series: 7000 Series Electric Strikes
Shim Type: NA
Ship Weight: 1 lbs.
Strike Body Depth (in): 1.6875
Strike Body Height (in): 4.87
Strike Body Width (in): 1.25
Subtype: Electric Strikes
Surface Mounting: Cutting required
Switch Type: Latchbolt Monitor
Tamper Resistant: Yes
Type: Electric Strikes
Unit of Measure: Each
Upc: 7.40E+11
Voltage: 12/24
Voltage Type: Field Selectable, VDC - Direct
Warranty: SecuriCare five-year, no fault, no questions asked warranty
