Attributes

Ship via: Can Ship UPS

Adjustability: Horizontal

Amp Draw: .15 Amps

Application: 3/4" Latchbolt

Baa Qualified: Yes

Base Material: Stainless Steel

Commercial Residential: Commercial

Complete Pack Options: Complete Pack for 3/4" throw latchbolt without deadbolt

Configuration: Centered

Country of origin: USA

Dynamic Strength (ft-lbs): 70

Endurance (cycles): 1,000,000

Faceplate Size: 4-7/8" x 1-1/4"

Fail Safe | Fail Secure: Fail Secure

Finish: 630 Satin stainless steel

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 3 Hours {A}

For Use With: Cylindrical Locks, Mortise Exit and Latch Locks

Frame Application: Wood

Frame Material: Metal|Wood

Function: Fail Secure

Grade: Grade 1

Holding Force: 1500 lbs.

Installation: Commercial

Keeper Size: 3/4"

Keeper Style: 3/4" PK keeper

Latchbolt Accommodation: 1/2" - 3/4"

Limited Warranty: 5 Years

Lock Type: Cylindrical Lock|Mortise Lock

Monitoring Installation: Factory Configured

Monitoring Options: Latchbolt Strike Monitor

Operating Voltage: 24 VDC

Origin: USA

Pack Height: 2.5"

Pack Length: 7.5"

Pack Qty: 1

Pack Volume: 112.5 in³

Pack Width: 6"

Series: 7000 Series

Shim Type: NA

Ship Weight: 2 lbs.

Solenoid Orientation: Horizontal for wood and concrete frames

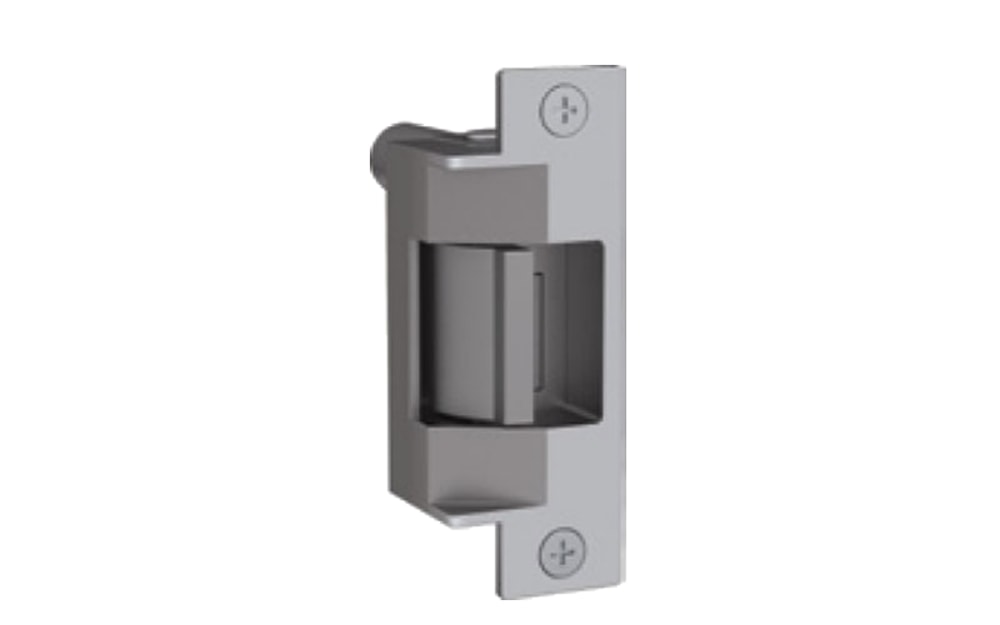

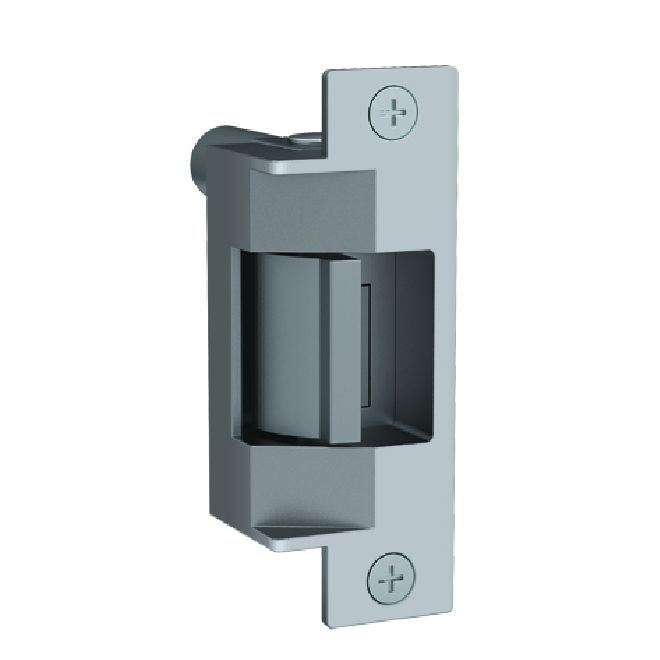

Strike: 75 24VDC Electric Strike

Strike Body Depth (in): NA

Strike Body Height (in): NA

Subtype: Electric Strikes

Surface Mounting: NA

Tamper Resistant: NA

Type: Electronics

Unit of Measure: Each

Upc: 740090054933

Voltage: 12|24

Warranty: SecuriCare five-year, no fault, no questions asked warranty
