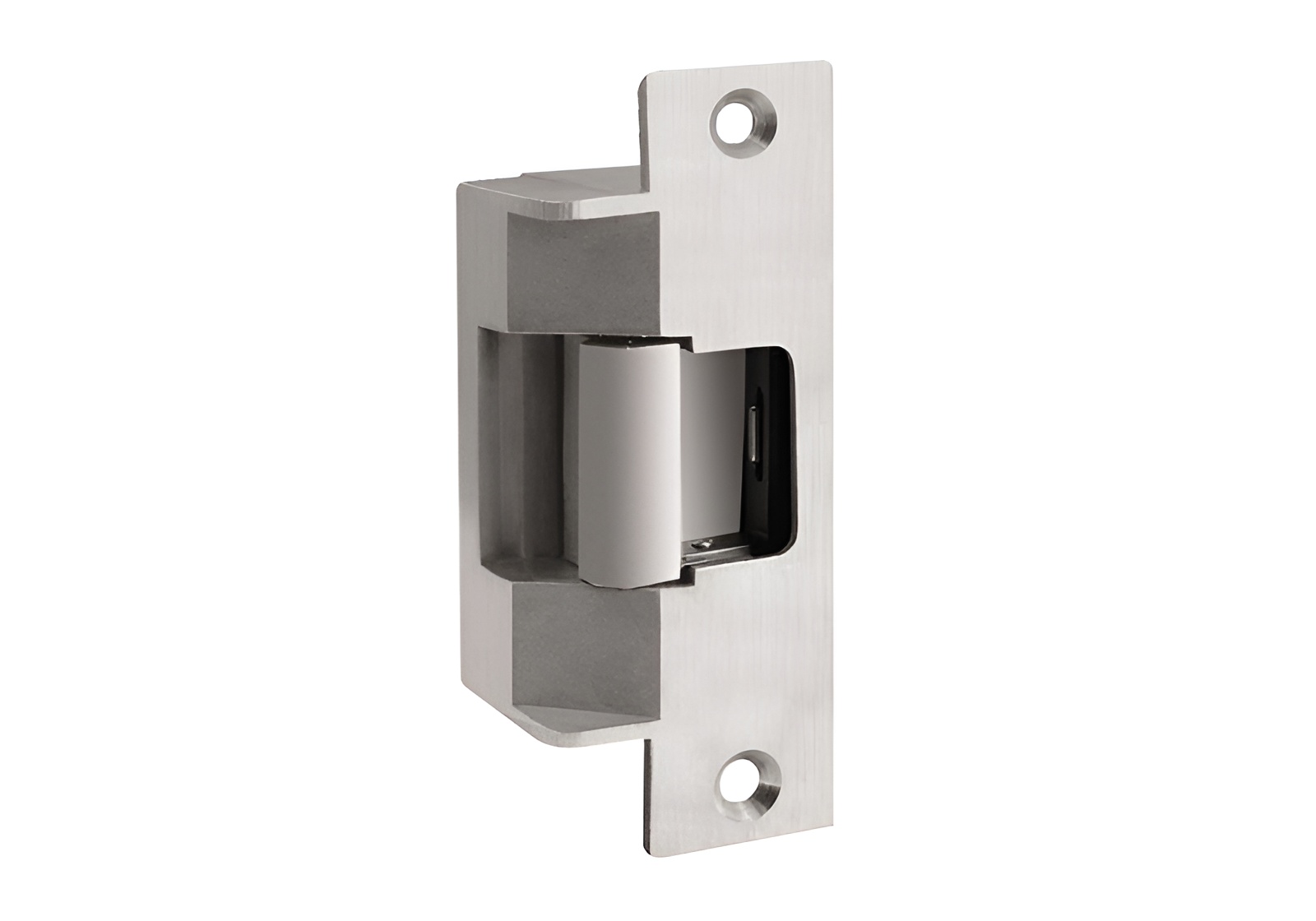

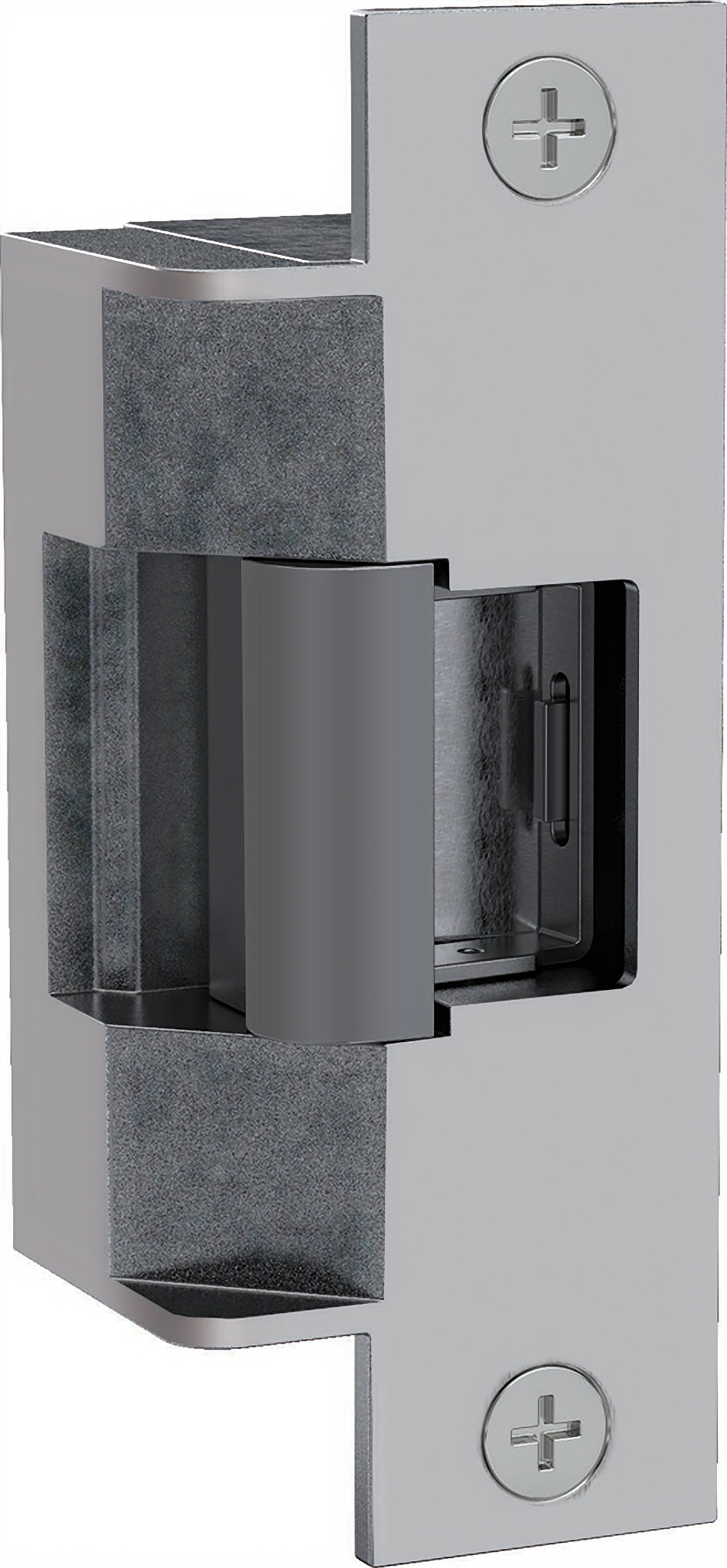

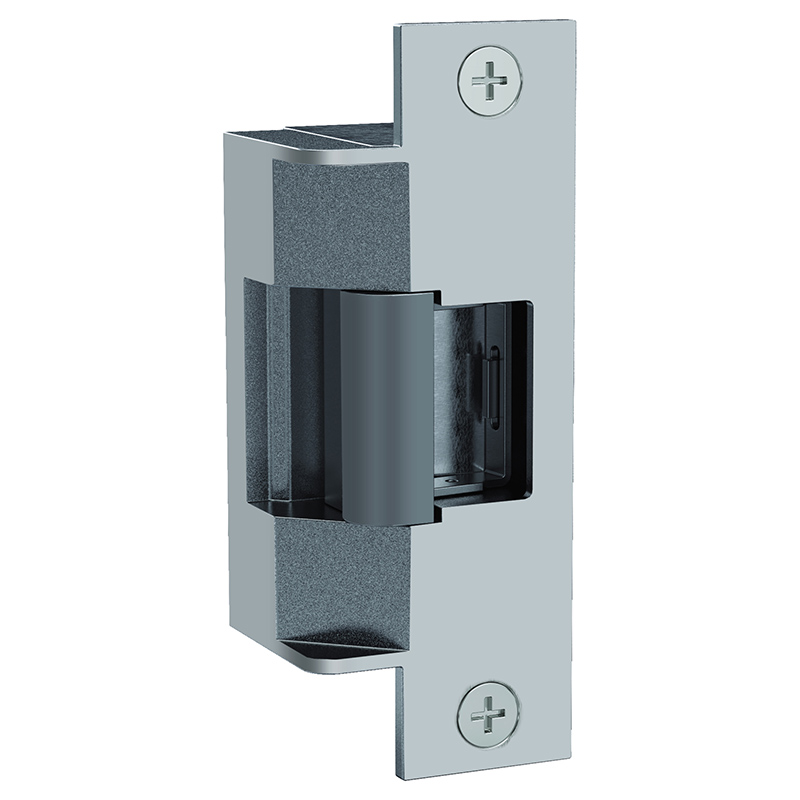

The 7501 series electric strike is ideal for fire-rated applications with pre-load conditions which may be caused by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause door bind. The heavy duty stainless steel construction provides the strength and durability required to accommodate fire-rated latchbolts up to 3/4" throw.
Attributes
Manufacturer surcharge: $ 0.0
Access Type: Electric Strike
Adjustability: Horizontal
Alternate Codes: 105403, 712-NFS-24V, 712NFS24V, 7501-24D-630, 750124D630, 7501-630, 7501630, F1114-08X32D, F111408X32D, HES7501-24D-630
Amp Draw: .45 Amps @ 12VDC, .25 Amps @ 24VDC
Baa Qualified: Yes
Category: Access Control, Electric Strikes
Commercial Residential: Commercial
Configuration: Centered
Country of Origin: Usa
Country of origin: USA
Door Application: Electric Strikes
Dynamic Strength (ft-lbs): 70
Electric Strike Compatibility: 3/4in Latch, Cylindrical Locks
Electric Strike Features: Body Depth 1-11/16", Internally Mounted Solenoid, Plug-in Connector, Tamper Resistant, Trim Enhancer Included, UL Fire Rated
Electric Strike Series: 7500
Endurance (cycles): 1,000,000
Face Shape: Flat Face, Square Corners
Faceplate Shape: Flat Face, Square Corners
Faceplate Size: 4-7/8 In. X 1-1/4 In.
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 630 Satin stainless steel
Finish Code: US32D
Finish Color: Satin, Satin Stainless Steel
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: Yes
For Use With: Cylindrical Locks
Frame Application: Metal or Wood
Frame Material: Metal|Wood
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Installation: Commercial
Keeper Size: 3/4 In.
Latchbolt Accommodation: Up to 3/4"
Limited Warranty: 5 Years
Lock Type: Cylindrical Lock
Manufacturer: Hanchett Entry Systems HES
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Monitoring
Operating Voltage: 12/24VDC
Origin: USA
Pack Qty: 1
Pre Load: 15 Lbs
Series: 7501 Series Electric Strikes
Shim Type: Field Adjustable
Strike Base Width (in): NA
Strike Body Depth (in): 1.6875
Strike Body Height (in): 4.87
Subtype: Electric Strike
Surface Mounting: Cutting required
Switch Type: None
Tamper Resistant: Yes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Use With: Cylindrical Locks
Voltage: 12/24
Voltage Type: Field Selectable, VDC - Direct
Warranty: SecuriCare five-year, no fault, no questions asked warranty
