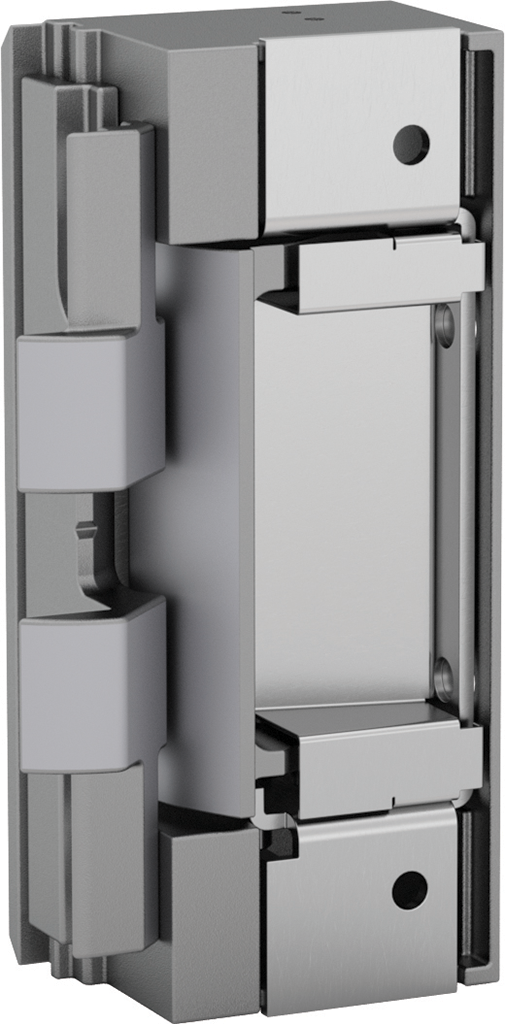

HES 8000-12/24D Electric Strike 12/24VDC/VAC, No Frame Cutting, Cylindrical Latches

HES 8000-12/24D Electric Strike offers a compact and high-performance solution for securing access points with cylindrical locksets. Designed for ease of installation, this electric strike requires no frame cutting-simply replace the existing strike plate, adjust for vertical alignment, and install. Its innovative keeper pin locking design provides exceptional strength, enabling it to surpass the ratings of the door, frame, and locking hardware. This unit features a field-selectable fail secure/fail safe option, making it versatile for various security needs. With the ability to accommodate latchbolts up to 5/8" throw, it ensures compatibility with most cylindrical latches. The 8000 series boasts impressive static strength ratings of 1,500 lbs and dynamic strength of 70 ft-lbs, along with an endurance rating of 1,000,000 cycles, ensuring long-lasting performance even in high-traffic areas. The electric strike is PoE friendly and operates on dual voltage (12/24 VDC/VAC) while providing options for various finishes, including satin stainless steel, bright brass, and black. This unit is suitable for metal, wood, and aluminum frame applications. Choose the HES 8000-12/24D for a reliable and efficient solution to enhance your security setup.

Electric Strike 12/24VDC/VAC, FS/FSE, No Frame Cutting, Cylindrical Latches Max 5/8in Throw, Body Only

The 8000 series is a compact, high-performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, and install. Its strength is derived from a unique keeper pin locking design, enabling the 8000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.

Features:

• No cutting on frame required
• Vertical adjustability to accommodate door sag and misalignment
• Tamper resistant
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs.
• Endurance 1,000,000 cycles
• Field selectable fail safe/fail secure
• Non-handed
• Internally mounted solenoid
• Accommodates 1/2"-5/8" cylindrical latchbolt (5/8"" with 1/8"" door gap)
• Strike body depth 1-1/16"
• Strike body width decreased to 1-7/16" to increase frame compatibility
• Dual voltage 12 or 24 VDC/VAC
• Certifications: ANSI/BHMA A156.31, Grade 1

Frame Application:

• Metal
• Wood
• Aluminum

Electrical:

• Dual voltage 12/24 VDC/VAC
• 240 mA at 12 VDC/120 mA at 24 VDC
• PoE friendly

Optional Features:

• LBM - Latchbolt monitor

Accessories:

• 2001M - Plug-in bridge rectifier
• 2004M - ElectroLynx® adapter
• 2005M3 - SMART Pac® III
• 2006M - Plug-in buzzer

Finishes:

• 630 - Satin stainless steel
• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 613 - Bronze toned
• 629 - Bright stainless steel
• BLK - Black

Resources

• Cut Sheet
