HES 8000C-613 KIT is a high-performance electric strike designed for seamless integration with cylindrical locksets without the need for frame modifications. This innovative product features a concealed design that enhances security while maintaining aesthetic appeal. Installation is straightforward; simply replace the existing strike plate and adjust the vertical alignment to match the latchbolt centerline. Engineered for strength, the 8000 series utilizes a unique keeper pin locking mechanism, achieving a static strength rating of 1,500 lbs and dynamic strength of 70 ft-lbs, ensuring durability across various applications. The strike accommodates latchbolts up to 5/8" throw and supports both fail secure and fail safe configurations, making it versatile for different security needs. With a depth of 1-1/16" and a reduced width of 1-7/16", the strike maximizes compatibility with a range of frame materials, including metal, wood, and aluminum. Its dual voltage capability (12/24 VDC/VAC) and PoE-friendly design make it a flexible choice for modern access control systems. Certified to ANSI/BHMA A156.31, grade 1 standards, the HES 8000C-613 KIT combines reliability with user-friendly installation, ensuring peace of mind for building professionals and homeowners alike.

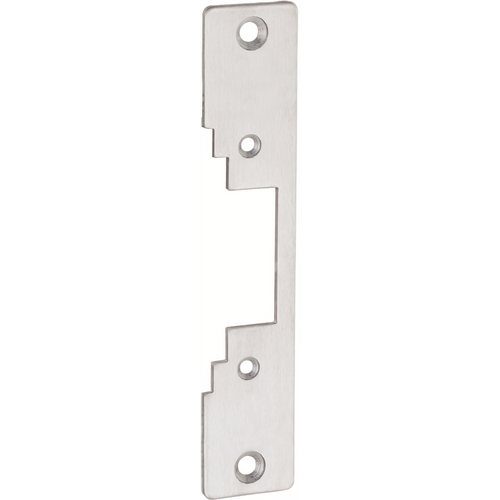

KIT - Electric Strike 12/24VDC/VAC, FS/FSE, No Frame Cutting, Complete for Cylindrical Latches Max 5/8in Throw, Includes the 801 Square and 801A Radius Faceplates, 613/US10B Dark Bronze Toned

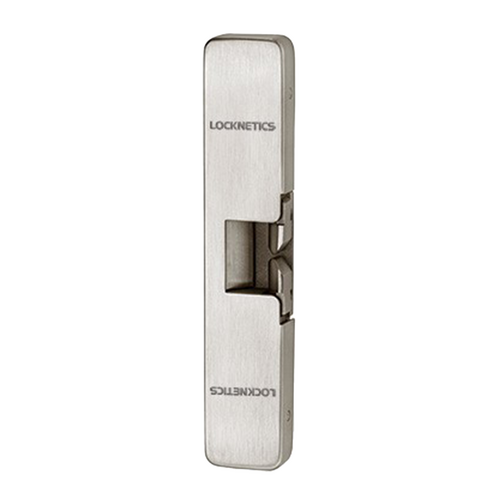

The 8000 series is a compact, high-performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, and install. Its strength is derived from a unique keeper pin locking design, enabling the 8000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.

Features:

• No cutting on frame required
• Vertical adjustability to accommodate door sag and misalignment
• Tamper resistant
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs.
• Endurance 1,000,000 cycles
• Field selectable fail safe/fail secure
• Non-handed
• Internally mounted solenoid
• Accommodates 1/2"-5/8" cylindrical latchbolt (5/8" with 1/8" door gap)
• Strike body depth 1-1/16"
• Strike body width decreased to 1-7/16" to increase frame compatibility
• Dual voltage 12 or 24 VDC/VAC
• Certifications: ANSI/BHMA A156.31, grade 1
• Optional: LBM - latchbolt monitor

Frame Application:

• Metal
• Wood
• Aluminum

Electrical:

• Dual voltage 12/24 VDC/VAC
• 240 mA at 12 VDC/120 mA at 24 VDC
• PoE friendly

Finishes:

• 630 - Satin stainless steel
• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 613 - Bronze toned
• 629 - Bright stainless steel
• BLK - Black
