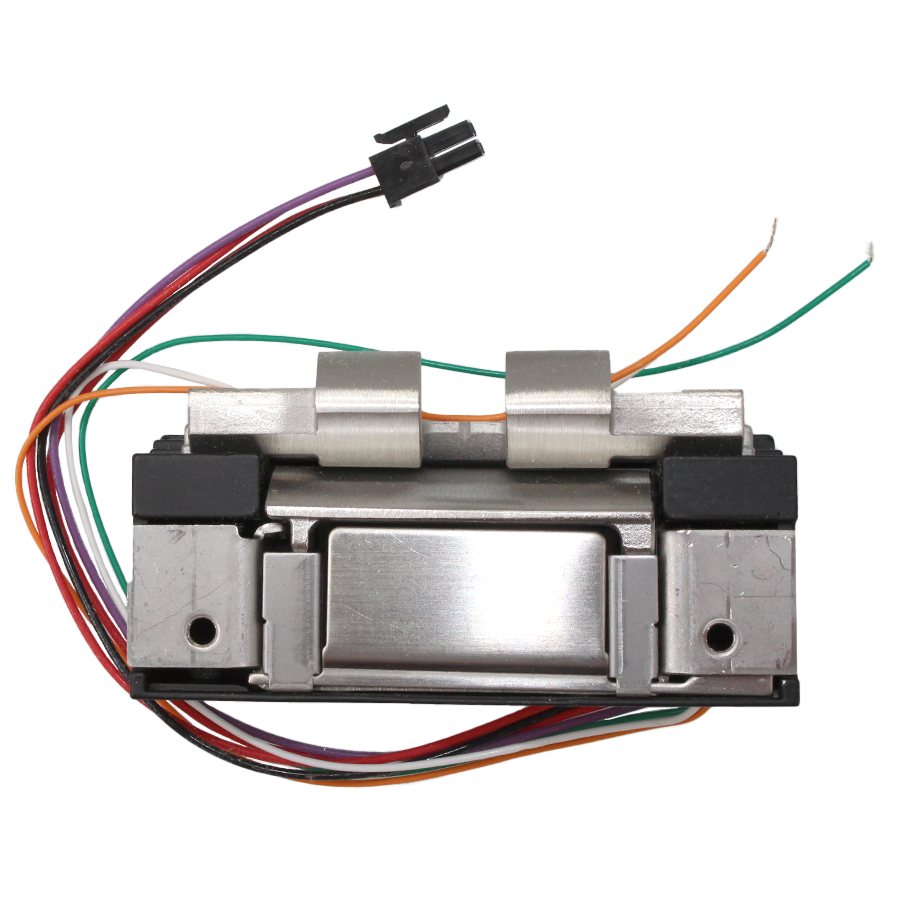

The 8000 series is a compact, high-performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, and install. Its strength is derived from a unique keeper pin locking design, enabling the 8000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.
Attributes
Manufacturer surcharge: $ 0.0
Access Type: Electric Strike
Adjustability: Vertical
Alternate Codes: 8000C-630 LBM, 8000C630LBM, 8000C-LBM-630, 8000CLBM630, HES8000C-630 LBM*, HES8000C-630-LBM, HES8000C-LBM 630
Amp Draw: .24 @ 12V .12 @ 24V
Baa Qualified: Yes
Base Material: Stainless Steel
Category: Access Control, Electric Strikes
Commercial Residential: Commercial
Complete Pack Options: C- includes 801 and 801A faceplates
Configuration: Centered
Country of origin: USA
Door And Lock Sensor: Latch Monitor
Door Application: Electric Strikes
Dynamic Strength (ft-lbs): 70
Electric Strike Compatibility: 1/2 -5/8in Latch, Cylindrical Deadlatch
Electric Strike Faceplate Size: 1-1/4" x 4-7/8"
Electric Strike Faceplate Type: Complete Latchbolt Faceplates Pac Includes 801 and 801A
Electric Strike Features: Body Depth 1-1/16", Internally Mounted Solenoid, Low Profile, Outdoor Use, Plug-in Connector, Tamper Resistant
Electric Strike Series: 8000
Endurance (cycles): 1,000,000
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
For Use With: Cylindrical Locks
Frame Application: Metal or Wood
Frame Material: Metal|Wood
Function: Fail Safe/Fail Secure
Grade: Grade 1
Holding Force: 1500 lbs.
Installation: Commercial
Keeper Size: 1/2"
Latchbolt Accommodation: 1/2" - 5/8"
Limited Warranty: 5 Years
Lock Type: Cylindrical Lock
Manufacturer: Hanchett Entry Systems HES
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Monitoring
Operating Voltage: 12/24 VDC
Origin: USA
Pack Height: 2.25"
Pack Length: 10.5"
Pack Qty: 1
Pack Volume: 79.73 in³
Pack Width: 3.38"
Series: 8000 Series Electric Strikes
Shim Type: NA
Ship Weight: 1.3 lbs.
Strike Body Depth (in): 1.0625
Strike Body Height (in): 4.875
Subtype: Electric Strikes
Surface Mounting: No cutting required
Switch Type: Latchbolt Monitor
Tamper Resistant: Yes
Type: Electric Strikes
Unit of Measure: Each
Upc: 7.40E+11
Voltage: 12/24
Voltage Type: Field Selectable, VDC - Direct
Warranty: SecuriCare five-year, no fault, no questions asked warranty
