HES 8300-12/24D Fire Rated Electric Strike is a compact, high-performance solution designed specifically for cylindrical locksets. This electric strike features a concealed design, allowing for easy installation without the need for frame cutting. Simply remove the existing strike plate, adjust for vertical alignment, and install-making it an ideal choice for retrofit applications. Compliant with NFPA 80-07 guidelines for fire-rated frames, the HES 8300 can handle latchbolts with a throw of up to 5/8 inches. Its robust keeper pin locking mechanism provides static strength of 1,500 lbs and dynamic strength of 70 ft-lbs, ensuring superior security. The strike has a remarkable endurance rating of 1 million cycles, proving its reliability over time. Electrical compatibility is versatile, supporting dual voltage of 12/24 VDC/VAC, and it is PoE friendly. This non-handed strike is also tamper-resistant, making it suitable for various environments, including metal, wood, and aluminum frames. Available finishes include Bright Brass, Satin Stainless Steel, and Black, allowing for a customized look to match your installation. With a SecuriCare five-year warranty, the HES 8300-12/24D is a dependable choice for enhancing security in both commercial and residential settings.

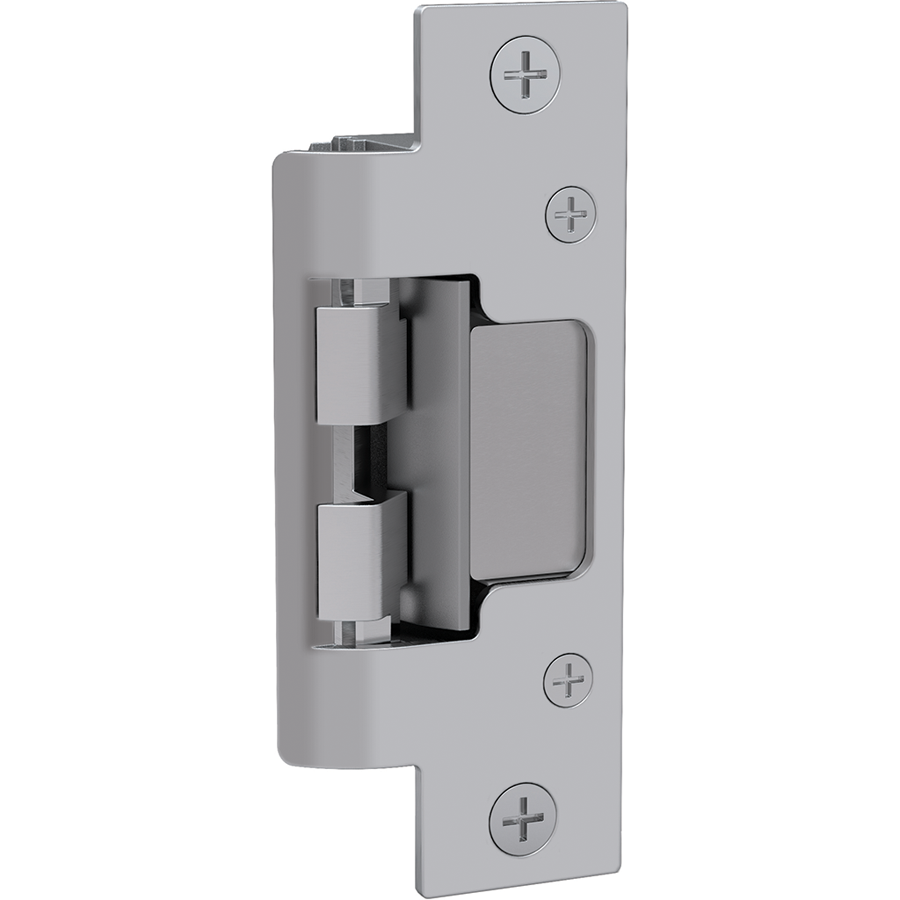

Fire Rated Electric Strike 12/24VDC/VAC, FS/FSE, No Frame Cutting, Cylindrical Latches Max 5/8in Throw, Body Only

The 8300 series is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline and install. Its strength is derived from a unique keeper pin locking design, enabling the 8300 to exceed the ratings of the frame, door and locking hardware. This unique electric strike is easy to install and complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The 8300 accommodates latchbolts up to 5/8" throw.

Features:

• Complies with the guidelines for retrofit into fire rated frames.
• No cutting on frame required for 4-7/8" ANSI prep.
• Vertical adjustability to accommodate door sag and misalignment.
• Tamper resistant.
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Endurance 1 million cycles.
• Field selectable fail safe/fail secure.
• Non-handed.
• Accommodates 1/2" – 5/8" [12.7mm – 15.9mm] cylindrical latchbolt. (5/8" [15.9mm] with 1/8" [3.175] door gap).
• Strike body depth 1-1/16" [27.3mm].
• Plug-in connector.
• SecuriCare five-year, no-fault, no questions asked warranty.
• LBM: Latchbolt Monitor (Optional)
• C - Complete Electric Strike; includes the 801 and 801A faceplates

Specifications:

• Certifications:
• ANSI/BHMA A156.31, Grade 1.
• UL 1034 burglary-resistant listed and suitable for outdoor use.
• UL 294 listed.
• RoHS compliant.
• UL 10C fire rated, 3-hour single door (fail secure only).
• CAN/ULC-S104 fire door conformant.
• NFPA-252 fire door compliant.
• ASTM-E152 fire door compliant.
• NFPA 80-07 compliant.
• Frame Application:
• Metal.
• Wood.
• Aluminum.
• Electrical: (DC Continuous Duty):
• Dual voltage 12/24 VDC/VAC.
• 240 mA at 12 VDC/120 mA at 24 VDC.
• PoE friendly.

Accessories:

• 2001M: Plug-in bridge rectifier.
• 2004M: ElectroLynx® adapter.
• 2005M3: SMART Pac® III.
• 2006M: Plug-in buzzer.

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 612 - Satin Bronze
• 613 - Bronze Toned
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• BLK - Black
