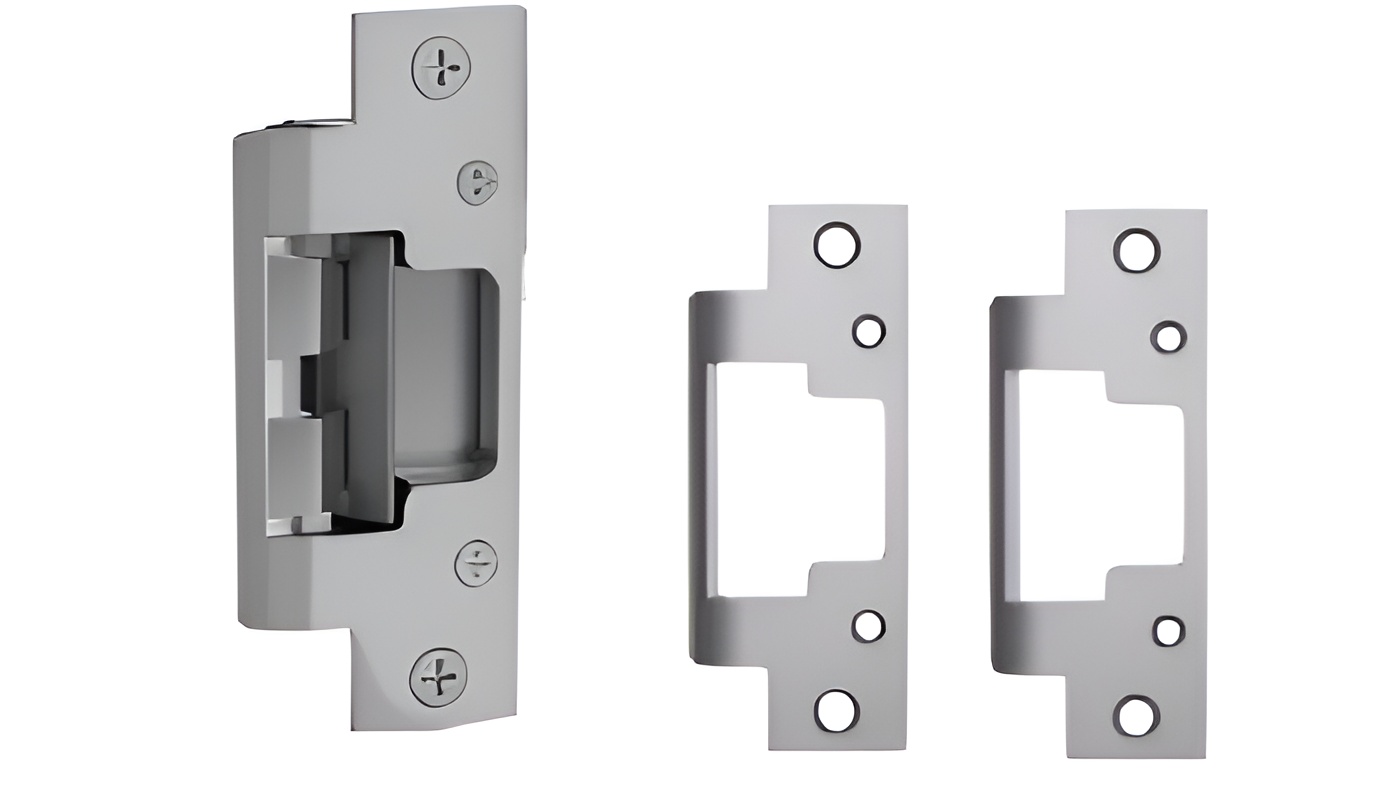

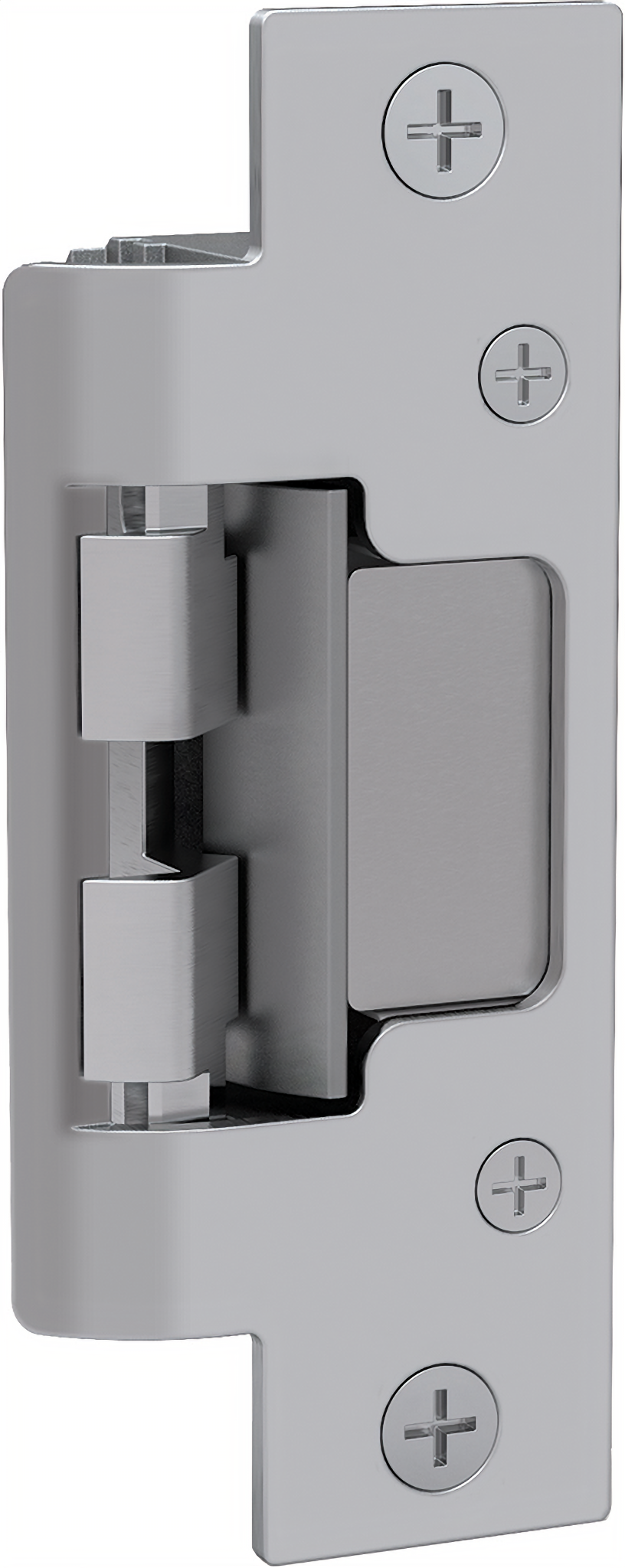

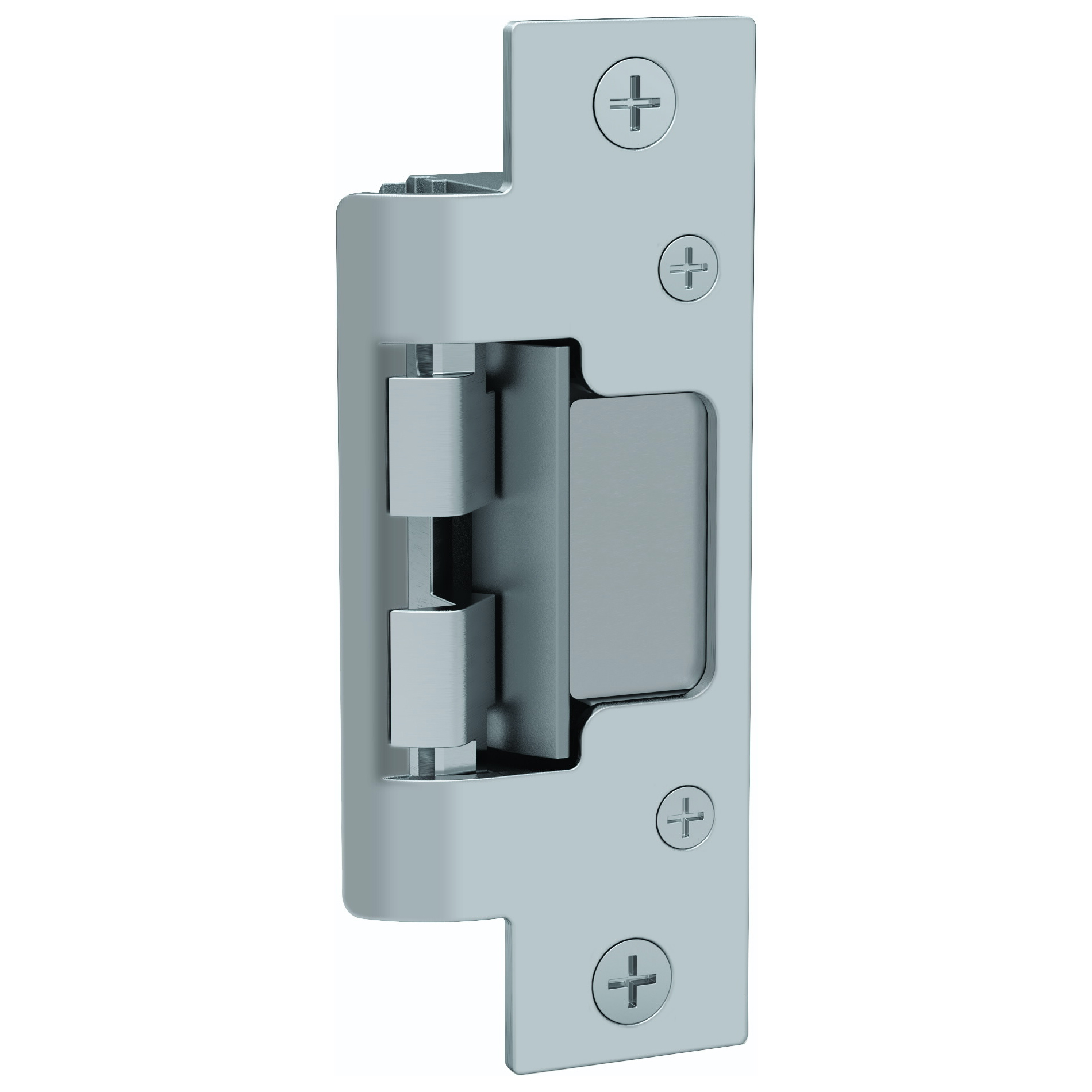

HES 8300C630 Hes 12VDC / 24VDC Electric Strike Kit in a satin stainless steel finish offers a robust solution for modern access control needs. Designed for use with cylindrical locksets, this electric strike kit boasts a dual voltage operation of 12/24 VDC, making it versatile for various applications. Built to withstand the test of time, the HES 8300C630 features a remarkable endurance rating of 500,000 cycles and is UL 10C fire-rated for up to three hours (fail secure only). Its non-handed design ensures easy installation on either left- or right-hand doors, providing flexibility in deployment. The internally mounted solenoid enhances security by minimizing vulnerability to tampering. Constructed from durable stainless steel, this electric strike not only meets ANSI/BHMA A156.31, Grade 1 standards but also blends seamlessly with contemporary architectural styles. Additional specifications include dimensions of 4-7/8" x 1-7/8" x 1-1/16", along with a manufacturer warranty that includes a 1-year hassle-free guarantee and a 5-year limited mechanical warranty. The HES 8300C630 is an excellent choice for commercial applications, combining strength and innovative technology to enhance building security.
HES is the leading manufacturer of electro-mechanical locking solutions for the access control industry. HES develops products that solve customers’ needs. First to market with cutting edge solutions like the versatile 1006 series and the completely windstorm rated, surface-mounted 9600 electric strike, HES has built a global reputation for innovation, strength, and service.
Attributes
Manufacturer surcharge: $ 0.0
Access Type: Electric Strike
Adjustability: Vertical
Alternate Codes: 8300C-630, 8300C630, HES8300
Amp Draw: .24 @ 12V .12 @ 24V
Application: CM EL
Baa Qualified: Yes
Base Material: Stainless Steel
Category: Commercial Electronic Devices
Clazz: HS
Color: Satin Stainless Steel
Commercial Residential: Commercial
Complete Pack Options: C- includes 801 and 801A faceplates
Configuration: Centered
Country of Origin: Usa
Country of origin: USA
Dimension: 4-7/8" x 1-7/8" x 1-1/16"
Door Application: Electric Strikes
Dynamic Strength (ft-lbs): 70
Electric Strike Compatibility: 1/2 -5/8in Latch, Cylindrical Deadlatch
Electric Strike Faceplate Size: 1-1/4" x 4-7/8"
Electric Strike Faceplate Type: Complete Latchbolt Faceplates Pac Includes 801 and 801A
Electric Strike Features: Body Depth 1-1/16", Internally Mounted Solenoid, Low Profile, Outdoor Use, Plug-in Connector, Tamper Resistant, UL Fire Rated
Electric Strike Series: 8300
Endurance (cycles): 1,000,000
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 630 Satin stainless steel
Finish Code: 630
Finish Color: Satin, Satin Stainless Steel
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Cylindrical Locks
Frame Application: Metal or Wood
Frame Material: Metal|Wood
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Hazardous Material: NO
Holding Force: 1500
Installation: Commercial
Item Class Description: Electric Strike Kit
Item Type Keyword: Strike
Keeper Size: 1/2 In.
Latchbolt Accommodation: 1/2" - 5/8"
Limited Warranty: 5 Years
Lock Type: Cylindrical Lock
Manufacturer: Hanchett Entry Systems HES
Manufacturer Warranty: 1 Year Hassle Free Guarantee, 5 Year Limited Mechanical Warranty, and 1 Year Limited Electrical Warranty
Material: Stainless Steel
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Monitoring
No Of Inners: 1
Number Of Inners: 1
Operating Voltage: 12VDC/24VDC
Order_ Qty: 1
Origin: USA
PO date: 2024-09-24
Pack Height: 2.25"
Pack Length: 10.5"
Pack Qty: 1
Pack Volume: 79.73 in³
Pack Width: 3.38"
Power Supply: Wired
Product Dimension: 4-7/8" x 1-7/8" x 1-1/16"
Product Type Used With: Cylindrical Locksets
Series: 8300 Series
Shim Type: NA
Ship Weight: 1.3 lbs.
Strike: Electric Strike Kit
Strike Body Depth (in): 1.0625
Strike Body Height (in): 4.875
Strike Dimension: 4-7/8"
Subcategory: Electric Strikes
Subtype: Electric Strikes
Surface Mounting: No cutting required
Switch Type: None
Tamper Resistant: Yes
Type: Electronics
Ul Listing Type: UL 1034, UL294, UL10C
Unit of Measure: Each
Upc: 740090043784
Use With: Cylindrical Locks
Voltage: 12/24
Warranty: SecuriCare five-year, no fault, no questions asked warranty
