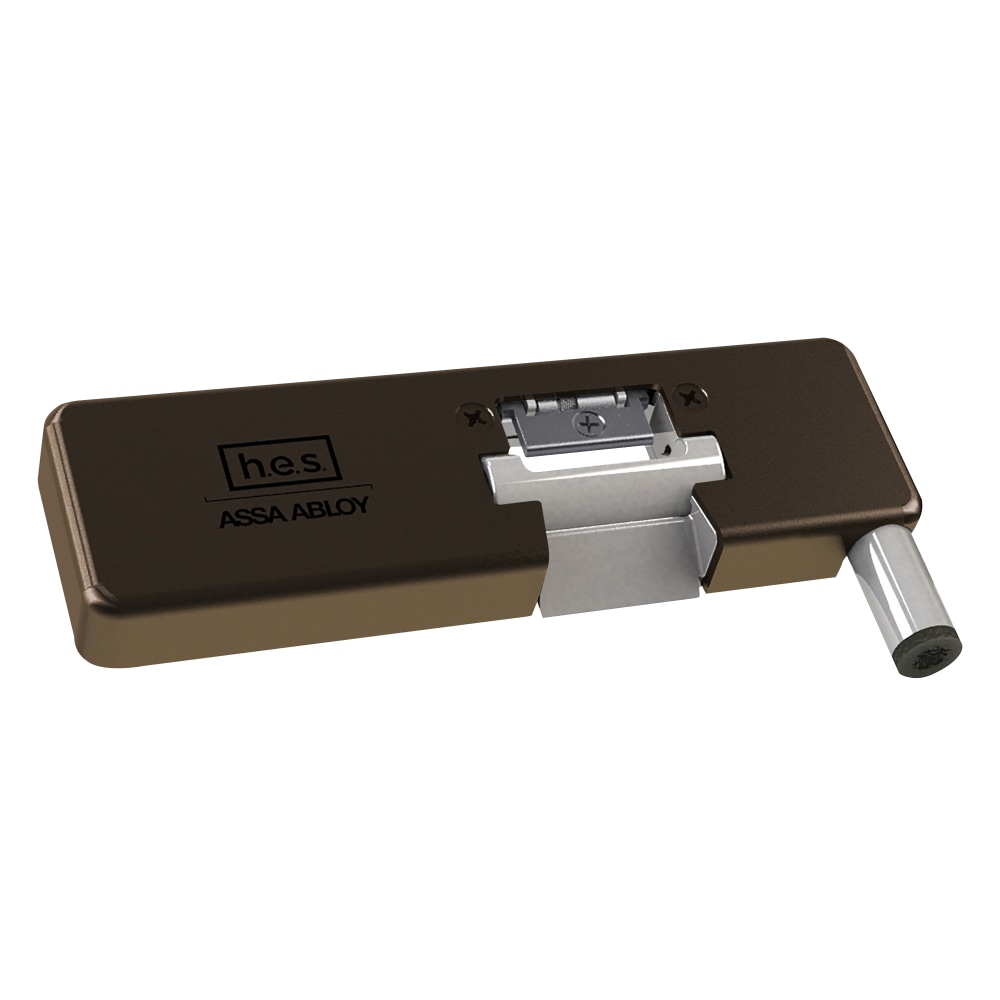

HES 9100L-613E-LMS Electric Strike for Tubular Vertical Rod, Left Hand, Satin Bronze

HES 9100L-613E-LMS Electric Strike for Tubular Vertical Rod Devices is a game-changer for access control in glass openings. This low-profile electric strike is designed for easy retrofitting into existing mechanical preparations, eliminating the need for frame cutting and ensuring swift installation. With fully adjustable components, it supports latchbolt accommodations of 5/8" to 3/4", making it versatile for various applications. Engineered with adaptable voltage sensing technology, the 9100L operates seamlessly across a range of 12 to 24 volts without requiring complex wiring selections. This electric strike also features selectable fail safe/fail secure functionality, providing significant flexibility to meet different security needs. Built to exceed Grade 1 standards, the robust stainless steel construction ensures durability, withstanding static strength of up to 1,500 lbs and dynamic strength up to 70 ft-lbs. The product's endurance rating of one million cycles highlights its reliability for high-traffic environments. Additionally, it offers quiet operation and factory-configured or field-installable monitoring options, including latchbolt monitoring. Finished in dark oxidized satin bronze (613E), the HES 9100L is not only functional but also aesthetically pleasing, ensuring it complements various architectural styles.

Electric Strike for Tubular Vertical Rod Devices, Latchbolt and Strike Monitoring, Left Hand, Single Door Application, 613E/US10BE Dark Oxidized Satin Bronze

The innovative 9100 electric strike sets a new industry standard for glass openings with tubular, vertical rod exit devices. The low-profile 9100 offers simplified retro-mounted installation within the existing mechanical prep to provide fast and easy installation without the need to cut the frame. Integrated adjustability provides optimal latch positioning to accommodate demanding installations. The 9100 has adaptable voltage sensing technology which allows the product to function in ranges from 12 through 24 volts with no required wiring selection. Available with field selectable fail safe/ fail secure functionality and monitoring options for maximized versatility. The 9100 exceeds Grade 1 standards and is designed with the strength and durability to meet UL outdoor rating requirements.

Features:

• Retro-mount using existing header prep
• No cutting required
• Integrated adjustability
• Adaptable voltage sensing technology (12-24 VDC)
• Factory configured or field installable monitoring
• Static strength 1,500 lbs
• Dynamic strength to 70 ft-lbs
• Endurance 1 million cycles
• Field selectable fail secure/fail safe
• Quiet operation
• Stainless steel construction
• SecuriCare five-year, no-fault, no questions asked warranty

Specifications:

• Application:
• Adjustability : Fully Adjustable
• Surface Mounting : Yes
• Frame Material : Aluminum|Hollow Metal|Wood
• Shim Type : Field Adjustable
• Latchbolt Accommodation (in) : 5/8 - 3/4
• Lock Type : Exit Device
• Weights & Dimensions:
• Strike Body Depth : 0 5/8e
• Strike Body Height : 6e
• Strike Body Width : 1 7/8e
• Electrical:
• Voltage : 12/24
• Monitoring Installation : Factory Configured|Field Installable
• Monitoring Options : Latchbolt Monitoring
• Current 12v DC (mA) : 240
• Current 24v DC (mA) : 120
• Strength & Durability:
• Endurance : 1000000
• Dynamic Strength (lbs) : 70
• Tamper Resistant : Yes
• Fail Safe | Fail Secure : Field selectable fail safe/fail secure
• Static Strength : 1500
• Certifications: ANSI/BHMA A156.31, Grade 1

Finishes:

• 606 - Satin Brass, clear coated
• BSP - Black suede powder coat
• 629 - Bright stainless steel
• 613E - Dark oxidized satin bronze-equivalent
• 605 - Bright Brass, clear coated
• 630 - Satin stainless steel
• 612 - Satin bronze, clear coated

Resources

• 9100 Series Electric Strikes Cut Sheet
• 9100 Series Electric Strikes Installation Instructions
• 9100 Series Electric Strikes Sell Sheet
