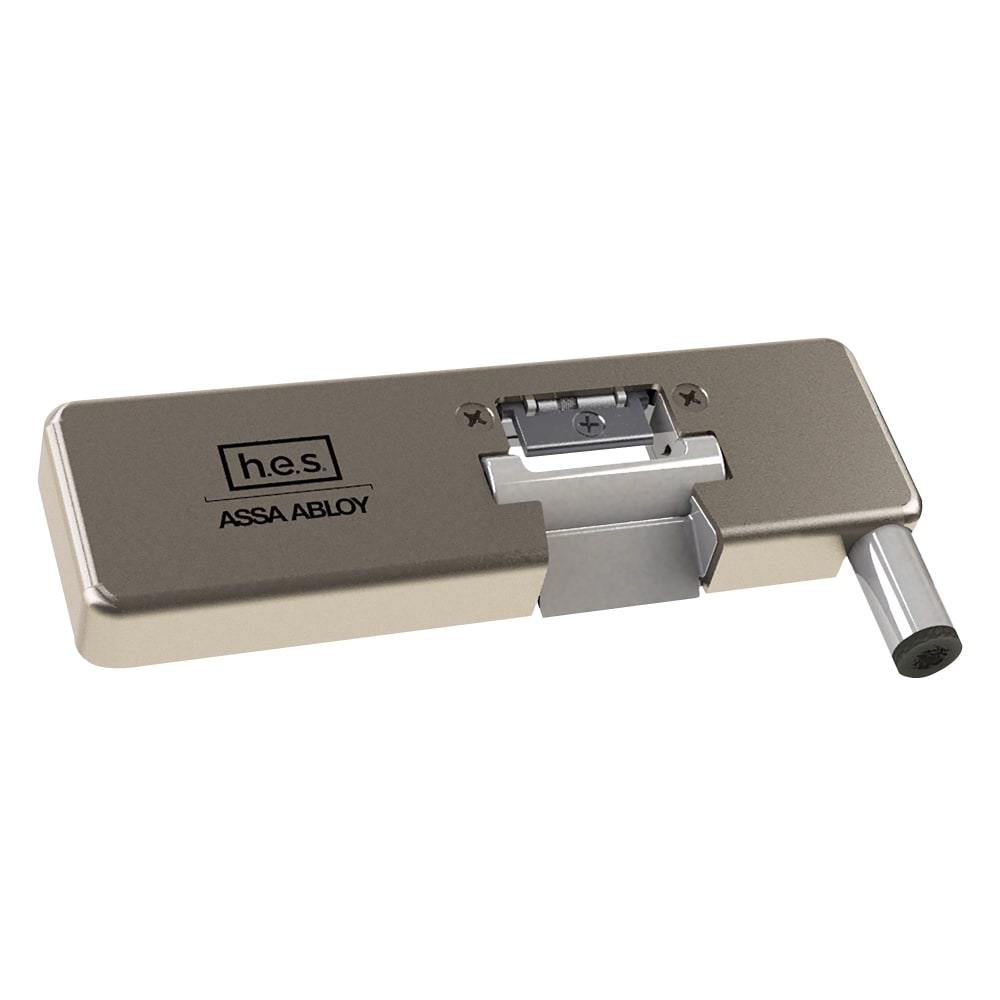

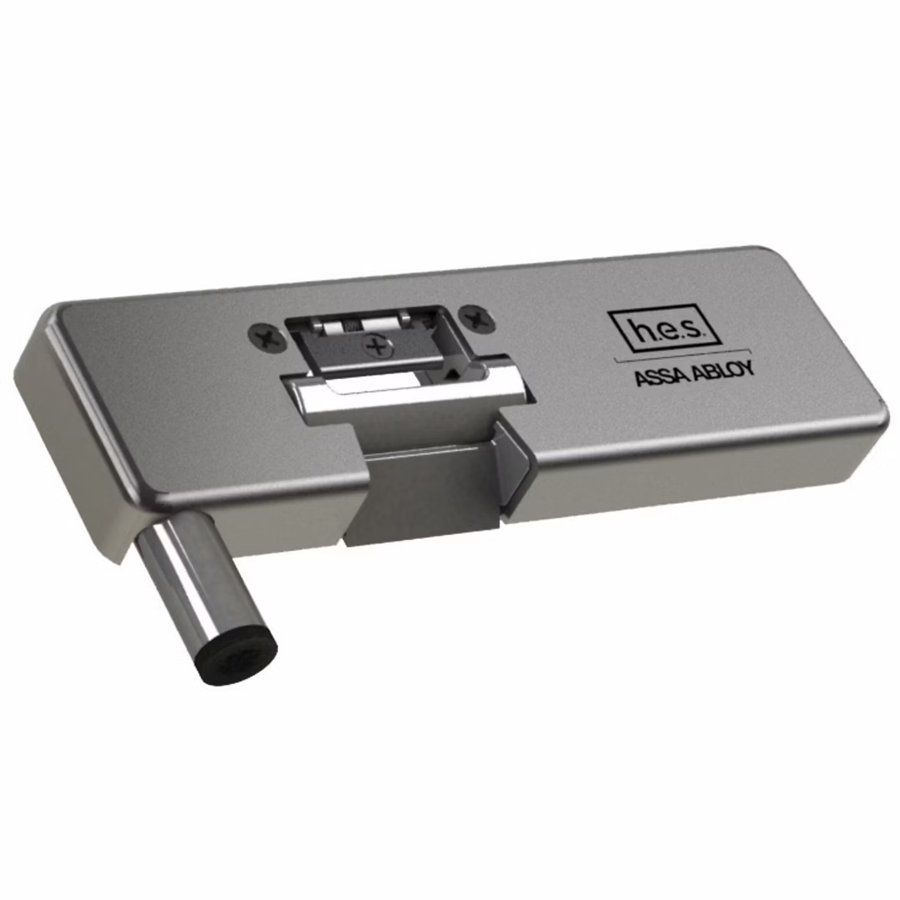

HES 9100L-630 Electric Strike for Left-Hand Tubular Vertical Rod, Single Door, Stainless Steel

HES 9100L-630 Electric Strike for Tubular Vertical Rod Devices is engineered to redefine security solutions for single door applications. This low-profile electric strike features a seamless retro-mount design, allowing for installation using existing mechanical preparations without frame modification. Its integrated adjustability ensures optimal latch positioning, accommodating various installation needs. The 9100L-630 operates on adaptable voltage sensing technology, compatible with 12 to 24 volts, eliminating the hassle of wiring selection. Users can easily configure fail safe or fail secure functionality, enhancing the strike's versatility for different environments. With a remarkable static strength of 1,500 lbs and dynamic strength of 70 ft-lbs, this electric strike is built to withstand significant force, meeting rigorous UL outdoor rating standards. Additional benefits include a quiet operation and durable construction from stainless steel, ensuring longevity and reliability. The endurance rating of one million cycles highlights its robustness. Field-adjustable shim types and monitoring options, including latchbolt monitoring, further enhance its functionality. With a five-year, no-fault warranty through SecuriCare, the HES 9100L-630 Electric Strike stands as a dependable choice for building professionals and discerning homeowners seeking top-tier security.

Electric Strike for Tubular Vertical Rod Devices, Left Hand, Single Door Application, 630/US32D Stainless Steel

The innovative 9100 electric strike sets a new industry standard for glass openings with tubular, vertical rod exit devices. The low-profile 9100 offers simplified retro-mounted installation within the existing mechanical prep to provide fast and easy installation without the need to cut the frame. Integrated adjustability provides optimal latch positioning to accommodate demanding installations. The 9100 has adaptable voltage sensing technology which allows the product to function in ranges from 12 through 24 volts with no required wiring selection. Available with field selectable fail safe/ fail secure functionality and monitoring options for maximized versatility. The 9100 exceeds grade 1 standards and is designed with the strength and durability to meet UL outdoor rating requirements.

Features:

• Retro-mount using existing header prep
• No cutting required
• Integrated adjustability
• Adaptable voltage sensing technology (12-24 VDC)
• Factory configured or field installable monitoring
• Static strength 1,500 lbs
• Dynamic strength to 70 ft-lbs
• Endurance 1 million cycles
• Field selectable fail secure/fail safe
• Quiet operation
• Stainless steel construction
• SecuriCare five-year, no-fault, no questions asked warranty

Specifications:

• Application:
• Adjustability : Fully adjustable
• Surface Mounting : Yes
• Frame Material : Aluminum/hollow metal/wood
• Shim Type : Field adjustable
• Latchbolt Accommodation (in) : 5/8 - 3/4
• Lock Type : Exit device
• Weights & Dimensions:
• Strike Body Depth : 0 5/8e
• Strike Body Height : 6e
• Strike Body Width : 1 7/8e
• Electrical:
• Voltage : 12/24
• Monitoring Installation : Factory configured/field installable
• Monitoring Options : Latchbolt monitoring
• Current 12v DC (mA) : 240
• Current 24v DC (mA) : 120
• Strength & Durability:
• Endurance : 1000000
• Dynamic Strength (lbs) : 70
• Tamper Resistant : Yes
• Fail Safe | Fail Secure : Field selectable fail safe/fail secure
• Static Strength : 1500
• Certifications: ANSI/BHMA A156.31, grade 1

Finishes:

• 606 - Satin Brass, clear coated
• BSP - Black suede powder coat
• 629 - Bright stainless steel
• 613E - Dark oxidized satin bronze-equivalent
• 605 - Bright Brass, clear coated
• 630 - Satin stainless steel
• 612 - Satin bronze, clear coated
