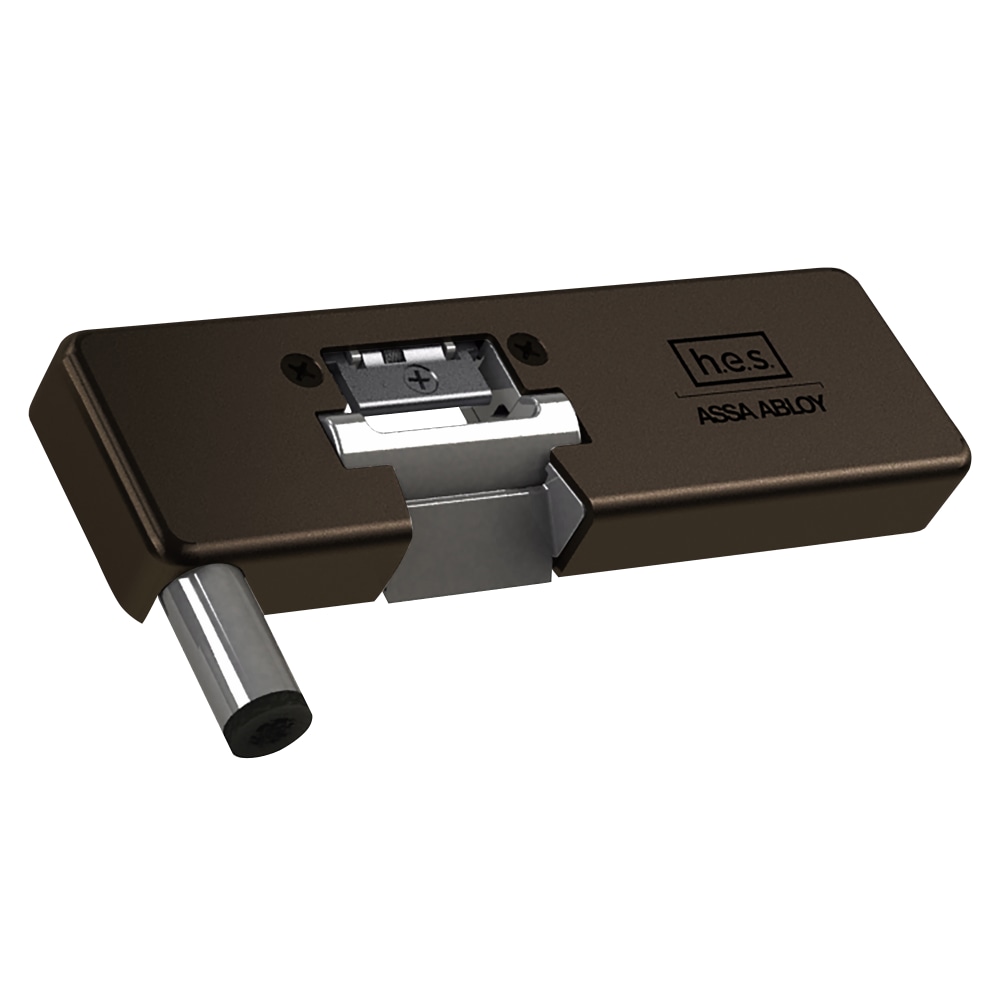

HES 9100R-613E Electric Strike for Right Hand Tubular Vertical Rod, Dark Oxidized Bronze

HES 9100R-613E Electric Strike for Tubular Vertical Rod Devices is engineered to redefine access control solutions for single door applications. Designed specifically for right-hand configurations, this electric strike is a versatile choice for various door materials, including aluminum, hollow metal, and wood. Its low-profile design allows for seamless retrofitting into existing mechanical preparations without the need for frame alterations, making installation fast and straightforward. The 9100 features integrated adjustability for optimal latch positioning, ensuring compatibility with demanding installations. It operates on adaptable voltage sensing technology, allowing it to function within a range of 12 to 24 volts, with no complicated wiring selections required. Additionally, users can enjoy the flexibility of field-selectable fail safe or fail secure functionality. Built for durability, the 9100 exceeds Grade 1 standards, exhibiting a static strength of 1,500 lbs and dynamic strength of 70 ft-lbs, alongside an impressive endurance rating of 1 million cycles. With stainless steel construction and a quiet operation, this electric strike is designed to withstand the rigors of daily use. Backed by a SecuriCare five-year warranty, the HES 9100R-613E is an exceptional choice for those seeking reliability and performance in their security hardware.

Electric Strike for Tubular Vertical Rod Devices, Right Hand, Single Door Application, 613E/US10BE Dark Oxidized Satin Bronze

The innovative 9100 electric strike sets a new industry standard for glass openings with tubular, vertical rod exit devices. The low-profile 9100 offers simplified retro-mounted installation within the existing mechanical prep to provide fast and easy installation without the need to cut the frame. Integrated adjustability provides optimal latch positioning to accommodate demanding installations. The 9100 has adaptable voltage sensing technology which allows the product to function in ranges from 12 through 24 volts with no required wiring selection. Available with field selectable fail safe/ fail secure functionality and monitoring options for maximized versatility. The 9100 exceeds Grade 1 standards and is designed with the strength and durability to meet UL outdoor rating requirements.

Features:

• Retro-mount using existing header prep
• No cutting required
• Integrated adjustability
• Adaptable voltage sensing technology (12-24 VDC)
• Factory configured or field installable monitoring
• Static strength 1,500 lbs
• Dynamic strength to 70 ft-lbs
• Endurance 1 million cycles
• Field selectable fail secure/fail safe
• Quiet operation
• Stainless steel construction
• SecuriCare five-year, no-fault, no questions asked warranty

Specifications:

• Application:
• Adjustability : Fully Adjustable
• Surface Mounting : Yes
• Frame Material : Aluminum|Hollow Metal|Wood
• Shim Type : Field Adjustable
• Latchbolt Accommodation (in) : 5/8 - 3/4
• Lock Type : Exit Device
• Weights & Dimensions:
• Strike Body Depth : 0 5/8e
• Strike Body Height : 6e
• Strike Body Width : 1 7/8e
• Electrical:
• Voltage : 12/24
• Monitoring Installation : Factory Configured|Field Installable
• Monitoring Options : Latchbolt Monitoring
• Current 12v DC (mA) : 240
• Current 24v DC (mA) : 120
• Strength & Durability:
• Endurance : 1000000
• Dynamic Strength (lbs) : 70
• Tamper Resistant : Yes
• Fail Safe | Fail Secure : Field selectable fail safe/fail secure
• Static Strength : 1500
• Certifications: ANSI/BHMA A156.31, Grade 1

Finishes:

• 606 - Satin Brass, clear coated
• BSP - Black suede powder coat
• 629 - Bright stainless steel
• 613E - Dark oxidized satin bronze-equivalent
• 605 - Bright Brass, clear coated
• 630 - Satin stainless steel
• 612 - Satin bronze, clear coated

Resources

• 9100 Series Electric Strikes Cut Sheet
• 9100 Series Electric Strikes Installation Instructions
• 9100 Series Electric Strikes Sell Sheet
