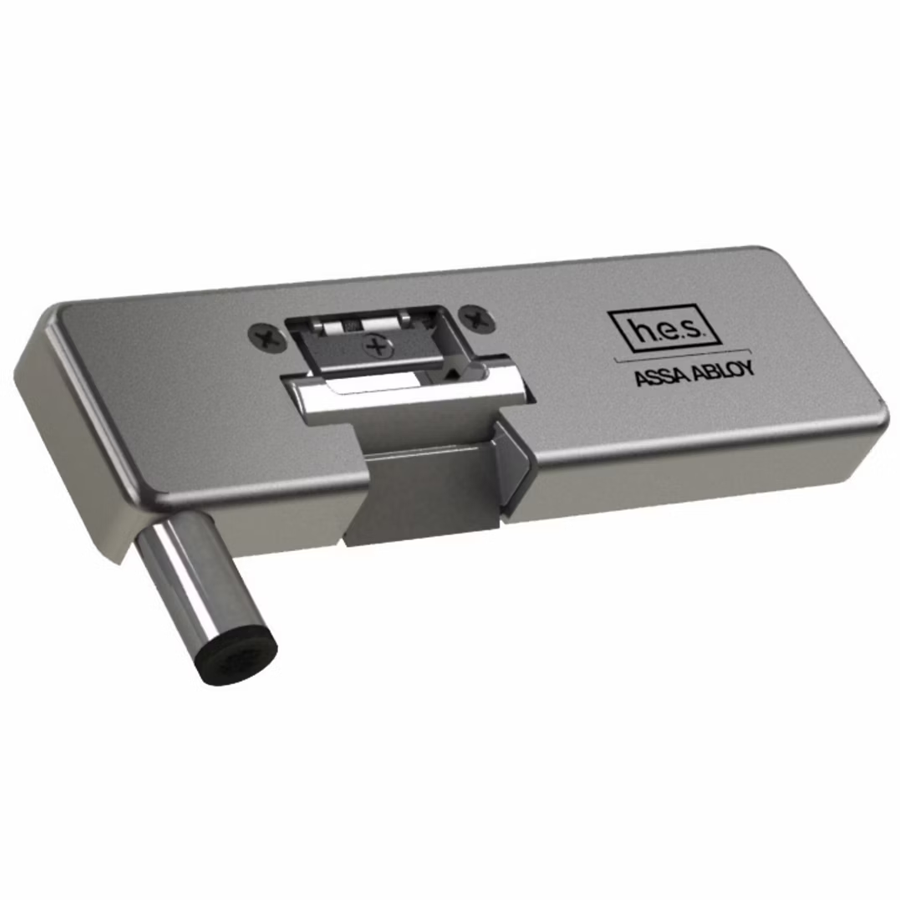

HES 9100R-630 Electric Strike for Right-Hand Tubular Vertical Rod, Single Door, Stainless Steel

HES 9100R-630 Electric Strike for Tubular Vertical Rod Devices is engineered to elevate security in single door applications. This innovative electric strike sets a new standard, particularly for glass openings, by allowing for retro-mounted installation directly within existing mechanical preparations-no cutting of the frame is necessary. The low-profile design facilitates swift and straightforward installation, making it ideal for professionals seeking efficiency. With integrated adjustability, the 9100R-630 accommodates complex installations, ensuring optimal latch positioning. It features adaptable voltage sensing technology, functioning seamlessly across a range of 12 to 24 volts, with no need for wiring selection. This electric strike also offers field-selectable fail safe or fail secure options, maximizing versatility in various security setups. Constructed from durable stainless steel, the 9100R-630 boasts impressive static strength of up to 1,500 lbs and dynamic strength rated at 70 ft-lbs. With a remarkable endurance rating of 1 million cycles, it stands ready for the demands of high-traffic environments. Additionally, it features tamper resistance and quiet operation, making it a reliable choice for both residential and commercial applications. Certified to ANSI/BHMA A156.31, grade 1, the HES 9100R-630 is backed by a SecuriCare five-year warranty, ensuring peace of mind in your investment.

Electric Strike for Tubular Vertical Rod Devices, Right Hand, Single Door Application, 630/US32D Stainless Steel

The innovative 9100 electric strike sets a new industry standard for glass openings with tubular, vertical rod exit devices. The low-profile 9100 offers simplified retro-mounted installation within the existing mechanical prep to provide fast and easy installation without the need to cut the frame. Integrated adjustability provides optimal latch positioning to accommodate demanding installations. The 9100 has adaptable voltage sensing technology which allows the product to function in ranges from 12 through 24 volts with no required wiring selection. Available with field selectable fail safe/ fail secure functionality and monitoring options for maximized versatility. The 9100 exceeds grade 1 standards and is designed with the strength and durability to meet UL outdoor rating requirements.

Features:

• Retro-mount using existing header prep
• No cutting required
• Integrated adjustability
• Adaptable voltage sensing technology (12-24 VDC)
• Factory configured or field installable monitoring
• Static strength 1,500 lbs
• Dynamic strength to 70 ft-lbs
• Endurance 1 million cycles
• Field selectable fail secure/fail safe
• Quiet operation
• Stainless steel construction
• SecuriCare five-year, no-fault, no questions asked warranty

Specifications:

• Application:
• Adjustability : Fully adjustable
• Surface Mounting : Yes
• Frame Material : Aluminum/hollow metal/wood
• Shim Type : Field adjustable
• Latchbolt Accommodation (in) : 5/8 - 3/4
• Lock Type : Exit device
• Weights & Dimensions:
• Strike Body Depth : 0 5/8e
• Strike Body Height : 6e
• Strike Body Width : 1 7/8e
• Electrical:
• Voltage : 12/24
• Monitoring Installation : Factory configured/field installable
• Monitoring Options : Latchbolt monitoring
• Current 12v DC (mA) : 240
• Current 24v DC (mA) : 120
• Strength & Durability:
• Endurance : 1000000
• Dynamic Strength (lbs) : 70
• Tamper Resistant : Yes
• Fail Safe | Fail Secure : Field selectable fail safe/fail secure
• Static Strength : 1500
• Certifications: ANSI/BHMA A156.31, grade 1

Finishes:

• 606 - Satin Brass, clear coated
• BSP - Black suede powder coat
• 629 - Bright stainless steel
• 613E - Dark oxidized satin bronze-equivalent
• 605 - Bright Brass, clear coated
• 630 - Satin stainless steel
• 612 - Satin bronze, clear coated
