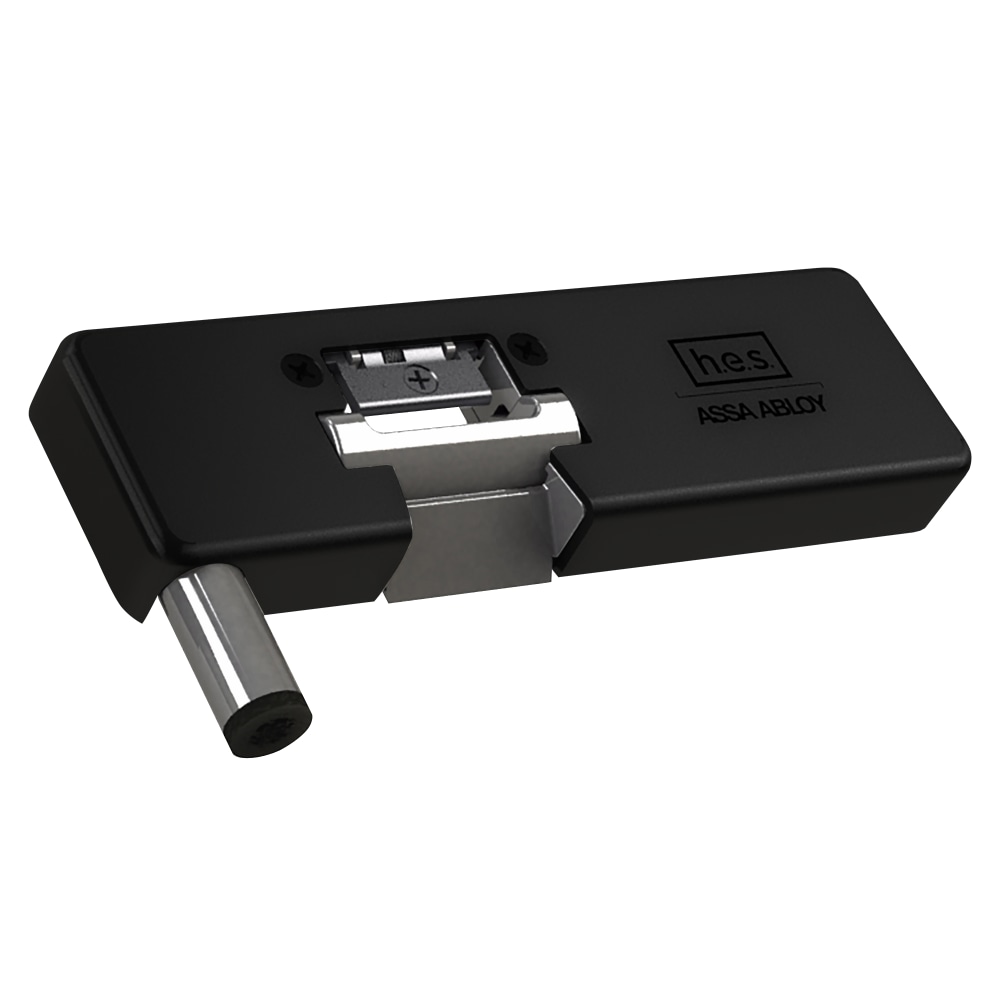

HES 9100R-BSP Electric Strike for Right Hand Tubular Vertical Rod, BSP Black Suede

HES 9100R-BSP Electric Strike for Tubular Vertical Rod Devices is engineered to redefine access control for glass openings. This low-profile electric strike simplifies retro-mounted installations within existing mechanical preparations, eliminating the need for frame modifications. Its innovative design allows for quick and effortless setup, making it a preferred choice for building professionals. The 9100R-BSP features integrated adjustability to ensure optimal latch positioning, accommodating the demands of various installations. With adaptable voltage sensing technology, it operates seamlessly within a range of 12 to 24 volts, requiring no specific wiring selection. This electric strike also offers field-selectable fail safe/fail secure functionality, enhancing its versatility for different security needs. Constructed from durable stainless steel, the 9100R-BSP exceeds grade 1 standards and is built to withstand significant force, boasting a static strength of 1,500 lbs and a dynamic strength of 70 ft-lbs. It features a quiet operation and is tamper-resistant, ensuring peace of mind. Additionally, the strike has an impressive endurance rating of 1 million cycles, backed by a SecuriCare five-year warranty. Available in a sleek BSP black suede powder coat finish, the HES 9100R-BSP is the perfect solution for enhancing both security and aesthetics in single door applications.

Electric Strike for Tubular Vertical Rod Devices, Right Hand, Single Door Application, BSP Black Suede Powder Coat

The innovative 9100 electric strike sets a new industry standard for glass openings with tubular, vertical rod exit devices. The low-profile 9100 offers simplified retro-mounted installation within the existing mechanical prep to provide fast and easy installation without the need to cut the frame. Integrated adjustability provides optimal latch positioning to accommodate demanding installations. The 9100 has adaptable voltage sensing technology which allows the product to function in ranges from 12 through 24 volts with no required wiring selection. Available with field selectable fail safe/ fail secure functionality and monitoring options for maximized versatility. The 9100 exceeds grade 1 standards and is designed with the strength and durability to meet UL outdoor rating requirements.

Features:

• Retro-mount using existing header prep
• No cutting required
• Integrated adjustability
• Adaptable voltage sensing technology (12-24 VDC)
• Factory configured or field installable monitoring
• Static strength 1,500 lbs
• Dynamic strength to 70 ft-lbs
• Endurance 1 million cycles
• Field selectable fail secure/fail safe
• Quiet operation
• Stainless steel construction
• SecuriCare five-year, no-fault, no questions asked warranty

Specifications:

• Application:
• Adjustability : Fully adjustable
• Surface Mounting : Yes
• Frame Material : Aluminum/hollow metal/wood
• Shim Type : Field adjustable
• Latchbolt Accommodation (in) : 5/8 - 3/4
• Lock Type : Exit device
• Weights & Dimensions:
• Strike Body Depth : 0 5/8e
• Strike Body Height : 6e
• Strike Body Width : 1 7/8e
• Electrical:
• Voltage : 12/24
• Monitoring Installation : Factory configured/field installable
• Monitoring Options : Latchbolt monitoring
• Current 12v DC (mA) : 240
• Current 24v DC (mA) : 120
• Strength & Durability:
• Endurance : 1000000
• Dynamic Strength (lbs) : 70
• Tamper Resistant : Yes
• Fail Safe | Fail Secure : Field selectable fail safe/fail secure
• Static Strength : 1500
• Certifications: ANSI/BHMA A156.31, grade 1

Finishes:

• 606 - Satin Brass, clear coated
• BSP - Black suede powder coat
• 629 - Bright stainless steel
• 613E - Dark oxidized satin bronze-equivalent
• 605 - Bright Brass, clear coated
• 630 - Satin stainless steel
• 612 - Satin bronze, clear coated
