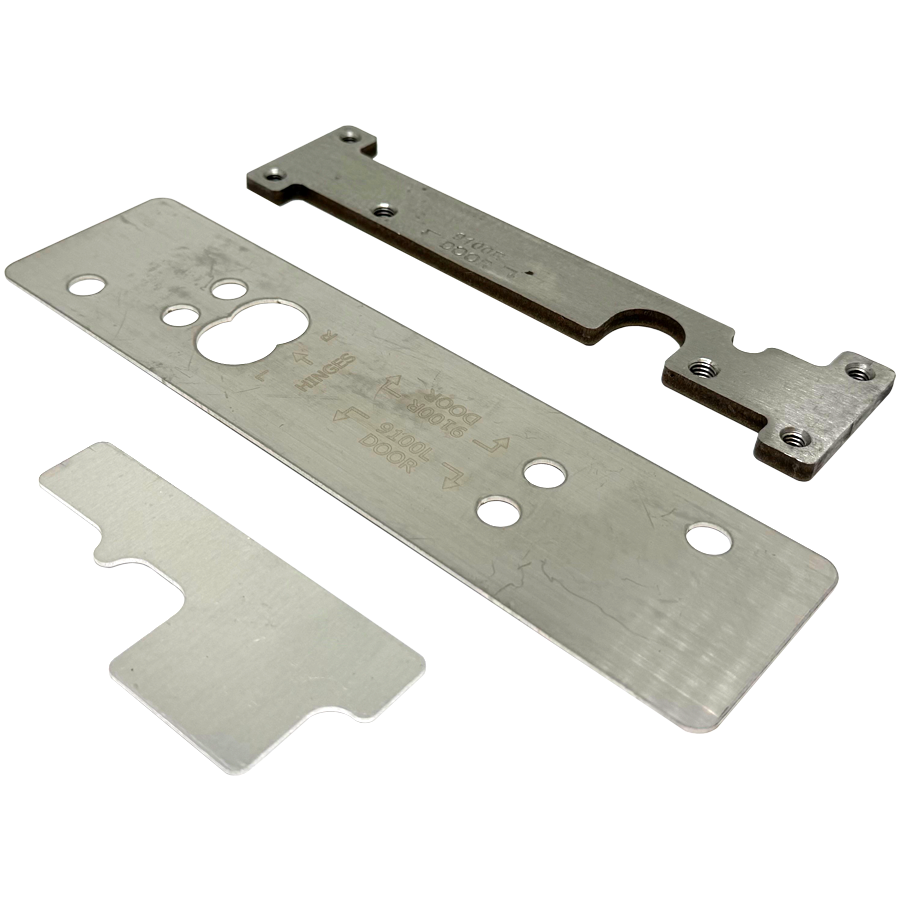

HES 9100RK-ESK1 9100 Retrofit Kit for Single Doors

HES 9100RK-ESK1 9100 Retrofit Kit for Single Doors is a cutting-edge solution designed to enhance the security of glass openings equipped with tubular and vertical rod exit devices. This low-profile electric strike offers a straightforward retro-mount installation, allowing for quick setup without the need for frame modifications. With its integrated adjustability, the 9100RK-ESK1 caters to various latch positions, making it perfect for demanding installations. Equipped with adaptable voltage sensing technology, this product operates seamlessly within a range of 12 to 24 volts, eliminating the hassle of wiring selection. Its field-selectable fail safe/fail secure functionality and monitoring options provide added versatility for any security system. Built to exceed Grade 1 standards, the 9100RK-ESK1 boasts a static strength of 1,500 lbs and dynamic strength up to 70 ft-lbs, ensuring robust performance. Constructed from durable stainless steel, this strike is designed for quiet operation and long-lasting endurance, capable of withstanding up to 1 million cycles. It is compatible with various frame materials, including aluminum, hollow metal, and wood. With multiple finishes available, including satin brass and bright stainless steel, the HES 9100RK-ESK1 is a practical choice for both professionals and discerning homeowners looking for reliability and style in access control solutions.

9100 Retrofit Kit for Single Doors

The innovative 9100 electric strike sets a new industry standard for glass openings with tubular, vertical rod exit devices. The low-profile 9100 offers simplified retro-mounted installation within the existing mechanical prep to provide fast and easy installation without the need to cut the frame. Integrated adjustability provides optimal latch positioning to accommodate demanding installations. The 9100 has adaptable voltage sensing technology which allows the product to function in ranges from 12 through 24 volts with no required wiring selection. Available with field selectable fail safe/ fail secure functionality and monitoring options for maximized versatility. The 9100 exceeds Grade 1 standards and is designed with the strength and durability to meet UL outdoor rating requirements.

Features:

• Retro-mount using existing header prep
• No cutting required
• Integrated adjustability
• Adaptable voltage sensing technology (12-24 VDC)
• Factory configured or field installable monitoring
• Static strength 1,500 lbs
• Dynamic strength to 70 ft-lbs
• Endurance 1 million cycles
• Field selectable fail secure/fail safe
• Quiet operation
• Stainless steel construction
• SecuriCare five-year, no-fault, no questions asked warranty

Specifications:

• Application:
• Adjustability : Fully Adjustable
• Surface Mounting : Yes
• Frame Material : Aluminum|Hollow Metal|Wood
• Shim Type : Field Adjustable
• Latchbolt Accommodation (in) : 5/8 - 3/4
• Lock Type : Exit Device
• Weights & Dimensions:
• Strike Body Depth : 0 5/8e
• Strike Body Height : 6e
• Strike Body Width : 1 7/8e
• Electrical:
• Voltage : 12/24
• Monitoring Installation : Factory Configured|Field Installable
• Monitoring Options : Latchbolt Monitoring
• Current 12v DC (mA) : 240
• Current 24v DC (mA) : 120
• Strength & Durability:
• Endurance : 1000000
• Dynamic Strength (lbs) : 70
• Tamper Resistant : Yes
• Fail Safe | Fail Secure : Field selectable fail safe/fail secure
• Static Strength : 1500
• Certifications: ANSI/BHMA A156.31, Grade 1

Finishes:

• 606 - Satin Brass, clear coated
• BSP - Black suede powder coat
• 629 - Bright stainless steel
• 613E - Dark oxidized satin bronze-equivalent
• 605 - Bright Brass, clear coated
• 630 - Satin stainless steel
• 612 - Satin bronze, clear coated
