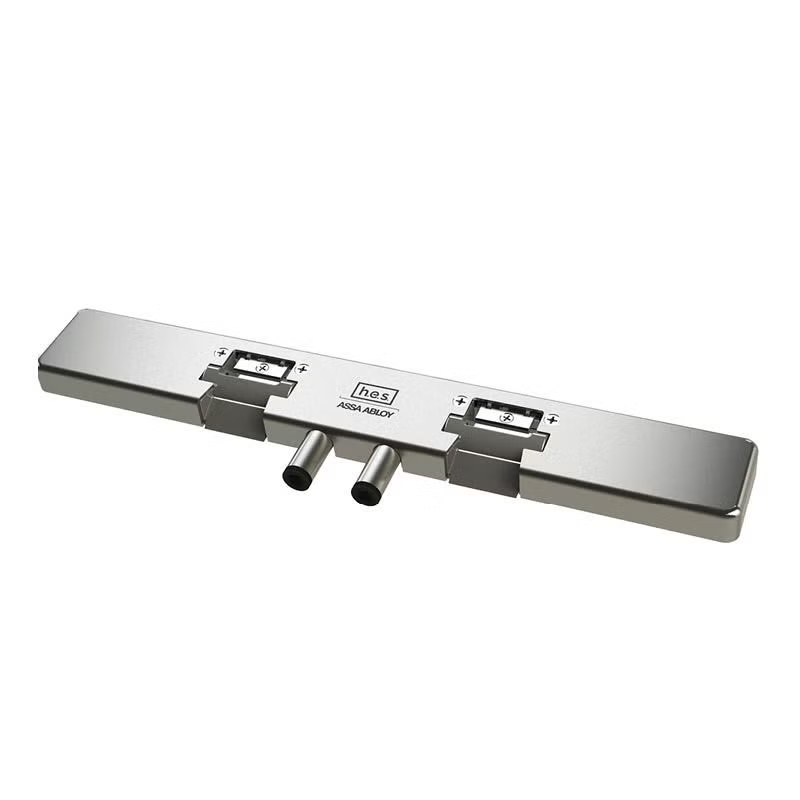

HES 9200N-630-LMS Surface Mounted Electric Strike, 4-5/8" spacing, Latchbolt Strike Monitor, Satin stainless

The innovative 9200 electric strike sets a new industry standard for glass openings with a tubular, vertical rod exit device. The 9200 offers simplified retro-mounted installation within the existing mechanical prep to provide fast and easy installation. Integrated adjustability provides optimal latch positioning to accommodate demanding installations and the low-profile design eliminates the need to add to or modify the frame. With adaptable voltage sensing technology, no wiring selection is required, allowing the product to function in ranges from 12 through 24 volts. Additionally, field selectable fail safe/fail secure functionality and monitoring options provide maximized versatility. The 9200 exceeds Grade 1 standards and is designed with the strength and durability to meet UL outdoor rating requirements.

Resources

• HES 9200 Catalog Page
• HES 9200 Sell Sheet
• HES 9200 Installation Instructions
• HES Electric Strike Overview Brochure
• HES Electric Strikes BHMA Grade 1 Certification
