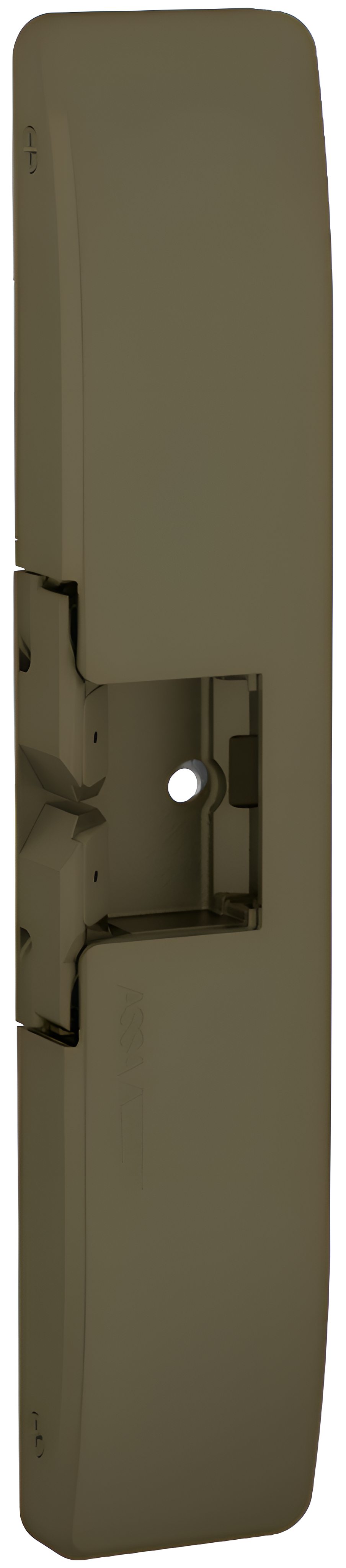

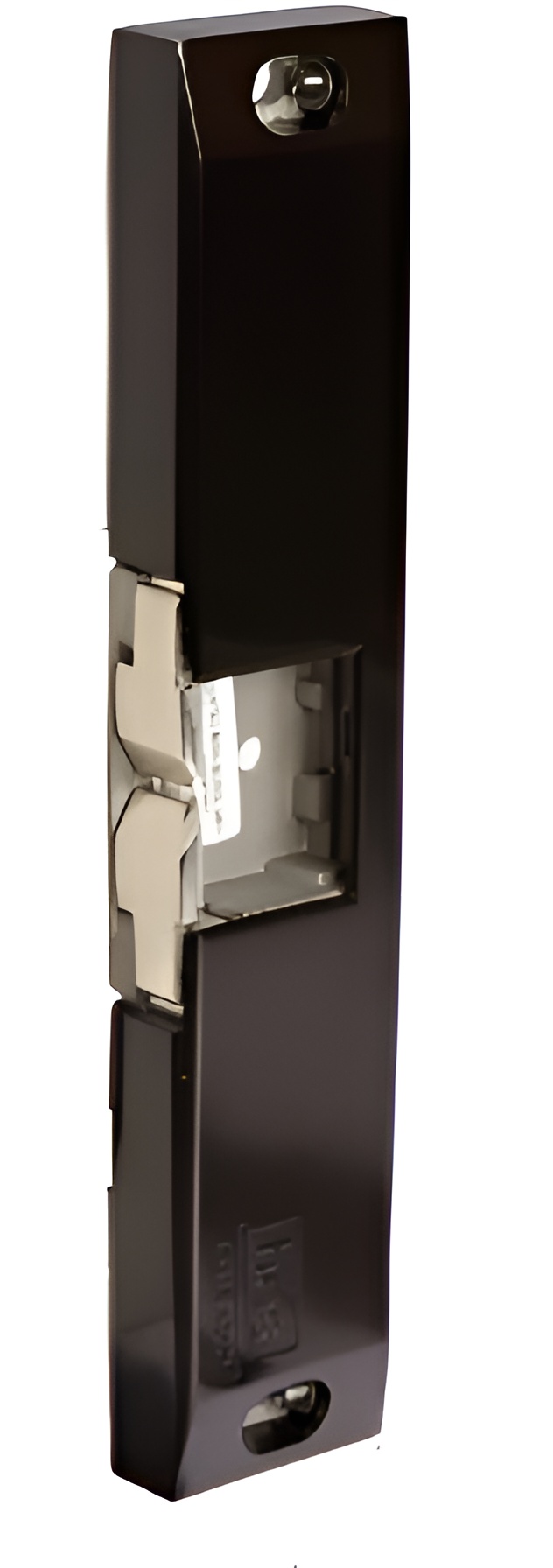

The 9500 Series is a 3 hour fire rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" Pullman latch. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. The 9500 exceeds grade-1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.
Attributes
Access Type: Electric Strike
Adjustability: Horizontal
Alternate Codes: 136760, 9500-613, 9500613, HES9500613, HES9500-613 LEGACY
Amp Draw: .45 @ 12V .25 @ 24V
Baa Qualified: Yes
CAL FIRE, 3776-1654: 0101
Category: Access Control, Electric Strikes
Configuration: Centered
Country of Origin: Usa
Door Application: Electric Strikes
Dynamic Strength (ft-lbs): 70
Electric Strike Compatibility: 3/4in Latch, Rim Exit (Pullman Latch)
Electric Strike Faceplate Size: 1-3/4" x 9" x 3/4"
Electric Strike Features: Horizontal Adjustment, Internally Mounted Solenoid, Outdoor Use, Surface Mount, Tamper Resistant
Electric Strike Series: 9500
Endurance (cycles): 1,000,000
Faceplate Size: 9 In. X 1-3/4 In.
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 613 Dark oxidized satin bronze, oil rubbed
Finish Code: US10B
Finish Color: Dark Bronze/Clear Coat, Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated: Yes
Frame Application: Metal or Wood
Frame Material: Metal|Wood
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Holding Force: 1500
Keeper Size: PK
Latchbolt Accommodation: Up to 3/4"
Limited Warranty: 5 Years
Lock Type: Exit Device
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Monitoring|Latchbolt Strike Monitor
Operating Voltage: 12VDC/24VDC
Series: 9500 Series Electric Strikes
Shim Type: NA
Strike: 12VDC / 24VDC New Style Electric Strike Body
Strike Body Depth (in): 0.75
Strike Body Height (in): 9
Subtype: Electric Strike
Surface Mounting: No cutting required
Switch Type: None
Tamper Resistant: Yes
Type: Electric Strikes, Bolts, Magnets
Upc: 740090043265
Use With: Rim Exit Devices
Voltage: 12/24
Voltage Type: Field Selectable, VDC - Direct
Warranty: SecuriCare five-year, no fault, no questions asked warranty
