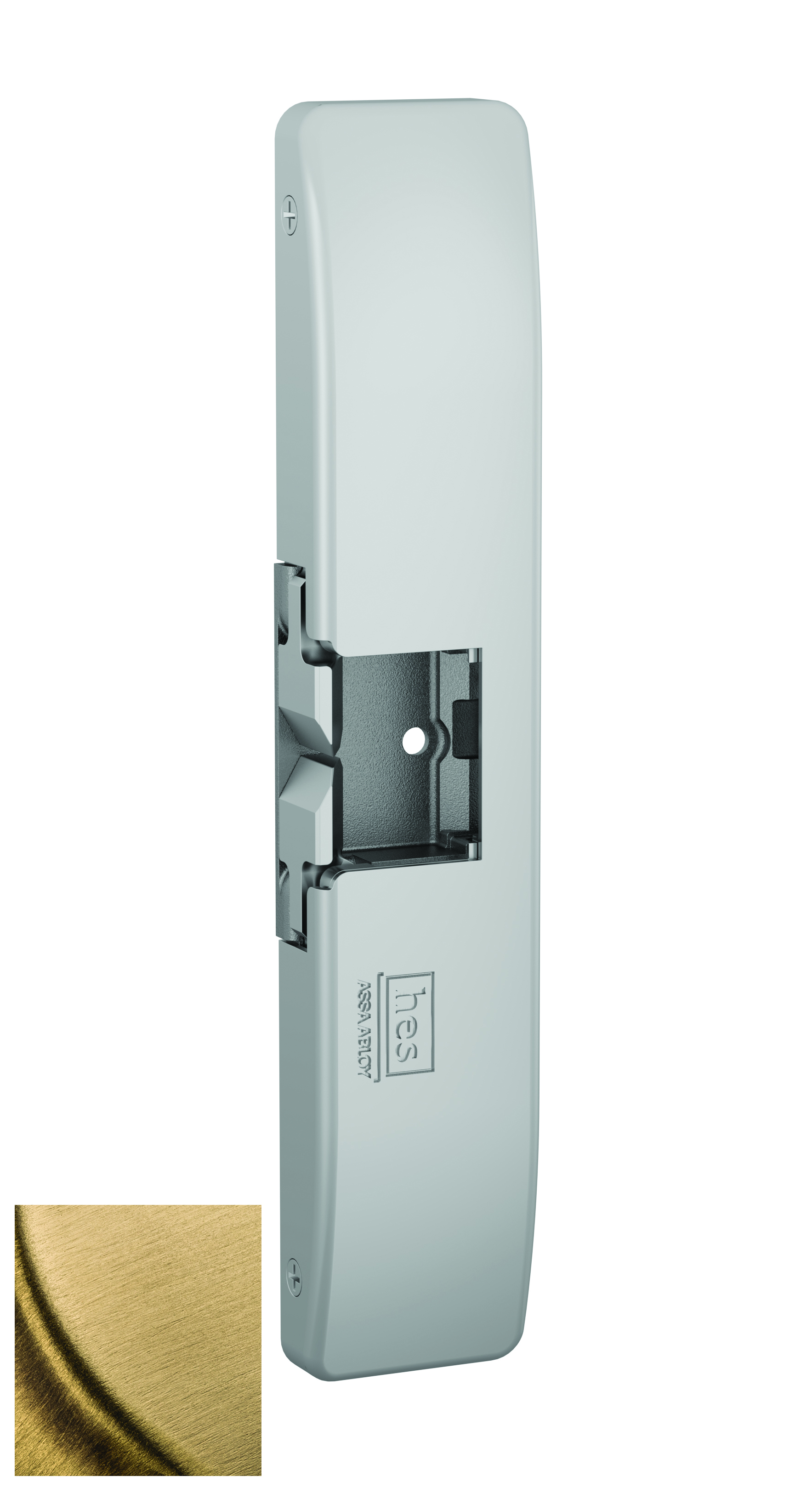

Assa Abloy Electronic Security Hardware - Hes 9600606LBM 12VDC / 24VDC Electric Strike Body with Latchbolt Monitor Satin Brass Finish
Attributes
Adjustability: Horizontal
Amp Draw: .45 @ 12V .25 @ 24V
Application: Rim Panic Device with Pullman Latch
Baa Qualified: Yes
Base Material: Brass
Commercial Residential: Commercial
Configuration: Centered
Country of Origin: Usa
Country of origin: USA
Dynamic Strength (ft-lbs): 120
Endurance (cycles): 1,000,000
Faceplate Size: 9 In. X 1-3/4 In.
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 606 Satin Brass, clear coated
Finish Description: Satin Brass
Finish Family: Matte Brass
Fire Rated: No
Fire Rating: No
For Use With: Rim Exit Devices
Frame Application: Metal or Wood
Frame Material: Metal|Wood
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Holding Force: 2000
Installation: Commercial
Keeper Size: PK
Latchbolt Accommodation: Up to 3/4"
Limited Warranty: 5 Years
Lock Type: Exit Device
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Monitoring|Latchbolt Strike Monitor
Operating Voltage: 12VDC/24VDC
Origin: USA
Pack Height: 2.25"
Pack Length: 10.5"
Pack Qty: 1
Pack Volume: 79.73 in³
Pack Width: 3.38"
Series: 9600 Series
Shim Type: NA
Ship Weight: 1.7 lbs.
Strike: 12VDC / 24VDC Electric Strike Body with Latchbolt Monitor
Strike Body Depth (in): 0.75
Strike Body Height (in): 9
Subtype: Electric Strikes
Surface Mounting: No cutting required
Switch Type: LBM
Tamper Resistant: Yes
Type: Electronics
Unit of Measure: Each
Upc: 740090040899
Use With: Rim Exit Devices
Voltage: 12/24
Warranty: SecuriCare five-year, no fault, no questions asked warranty
