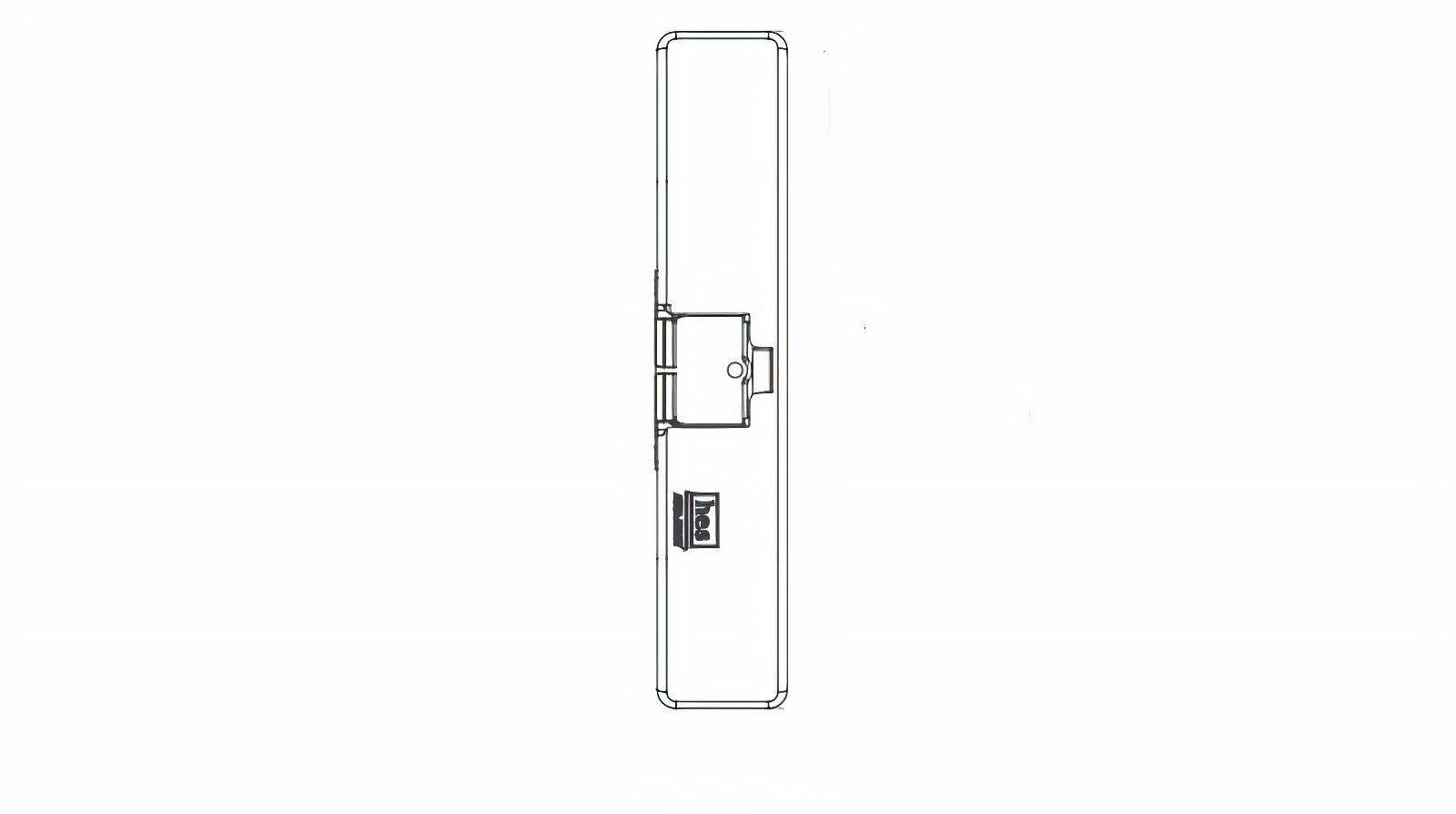

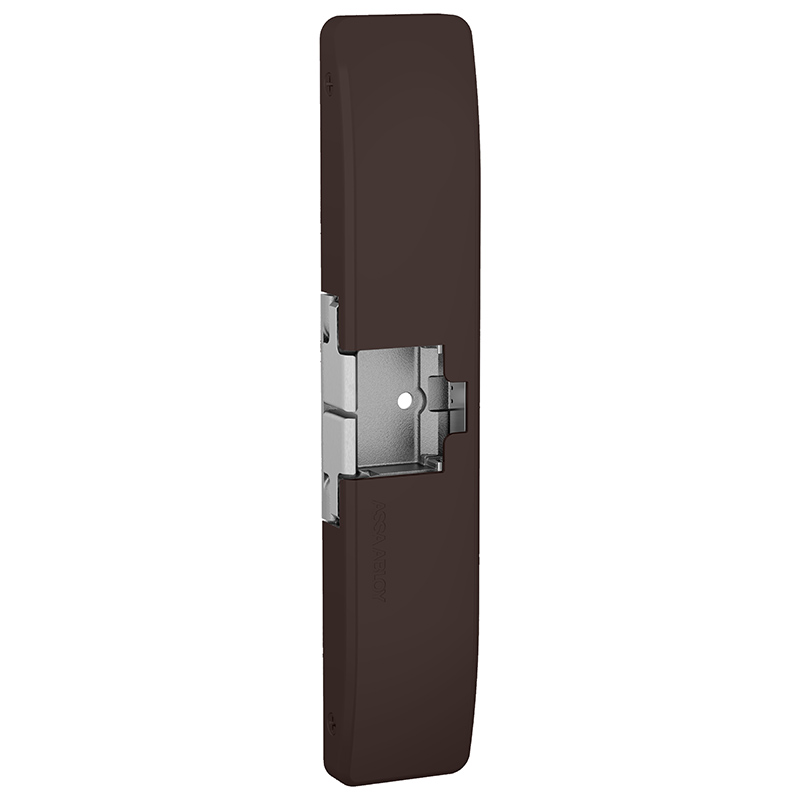

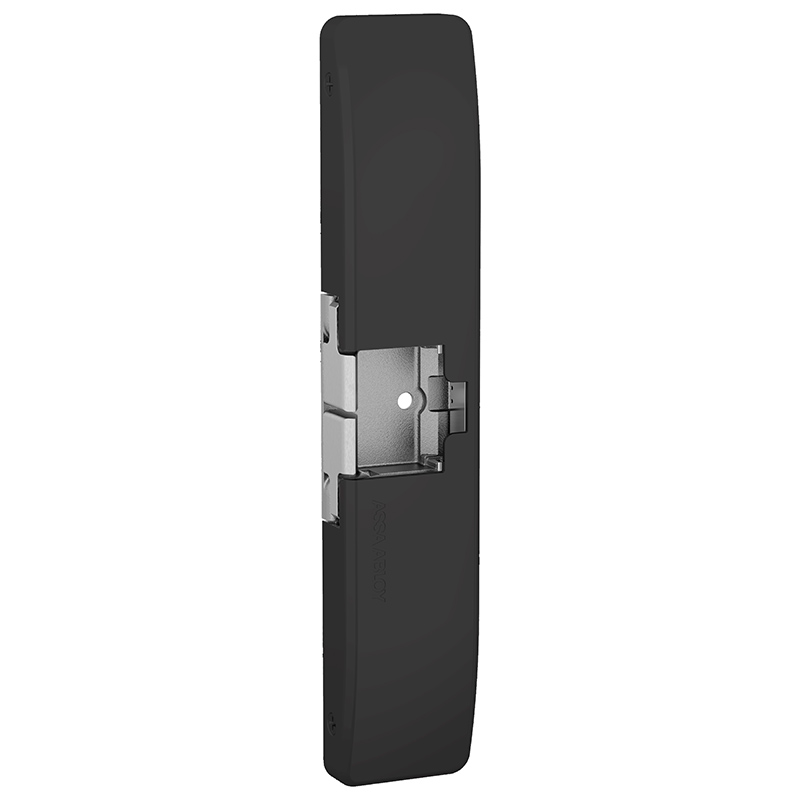

The 9700 Series is a heavy duty, surface mounted electric strike designed to accommodate Corbin Russwin SecureBolt and Yale SquareBolt exit devices. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.
Attributes
Adjustability: Horizontal
Amp Draw: .45 @ 12V .25 @ 24V
Application: Squarebolt Rim Panic Device
Baa Qualified: Yes
Base Material: Bronze
Commercial Residential: Commercial
Configuration: Centered
Country of Origin: Usa
Country of origin: USA
Dynamic Strength (ft-lbs): 120
Endurance (cycles): 1,000,000
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 613E Dark oxidized satin bronze-equivalent
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Rim Exit Devices
Frame Application: Metal or Wood
Frame Material: Metal|Wood
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Holding Force: 2000
Installation: Commercial
Keeper Size: SK
Latchbolt Accommodation: 3/4"
Limited Warranty: 5 Years
Lock Type: Exit Device
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Monitoring|Latchbolt Strike Monitor
Operating Voltage: 12VDC/24VDC
Origin: USA
Pack Height: 2.25"
Pack Length: 10.5"
Pack Qty: 1
Pack Volume: 79.73 in³
Pack Width: 3.38"
Series: 9700 Series Electric Strikes
Shim Type: NA
Ship Weight: 1.8 lbs.
Strike Body Depth (in): 0.75
Strike Body Height (in): 9
Subtype: Electric Strike
Surface Mounting: No cutting required
Switch Type: None
Tamper Resistant: Yes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 740090040790
Use With: Rim Exit Devices
Voltage: 12/24
Warranty: SecuriCare five-year, no fault, no questions asked warranty
