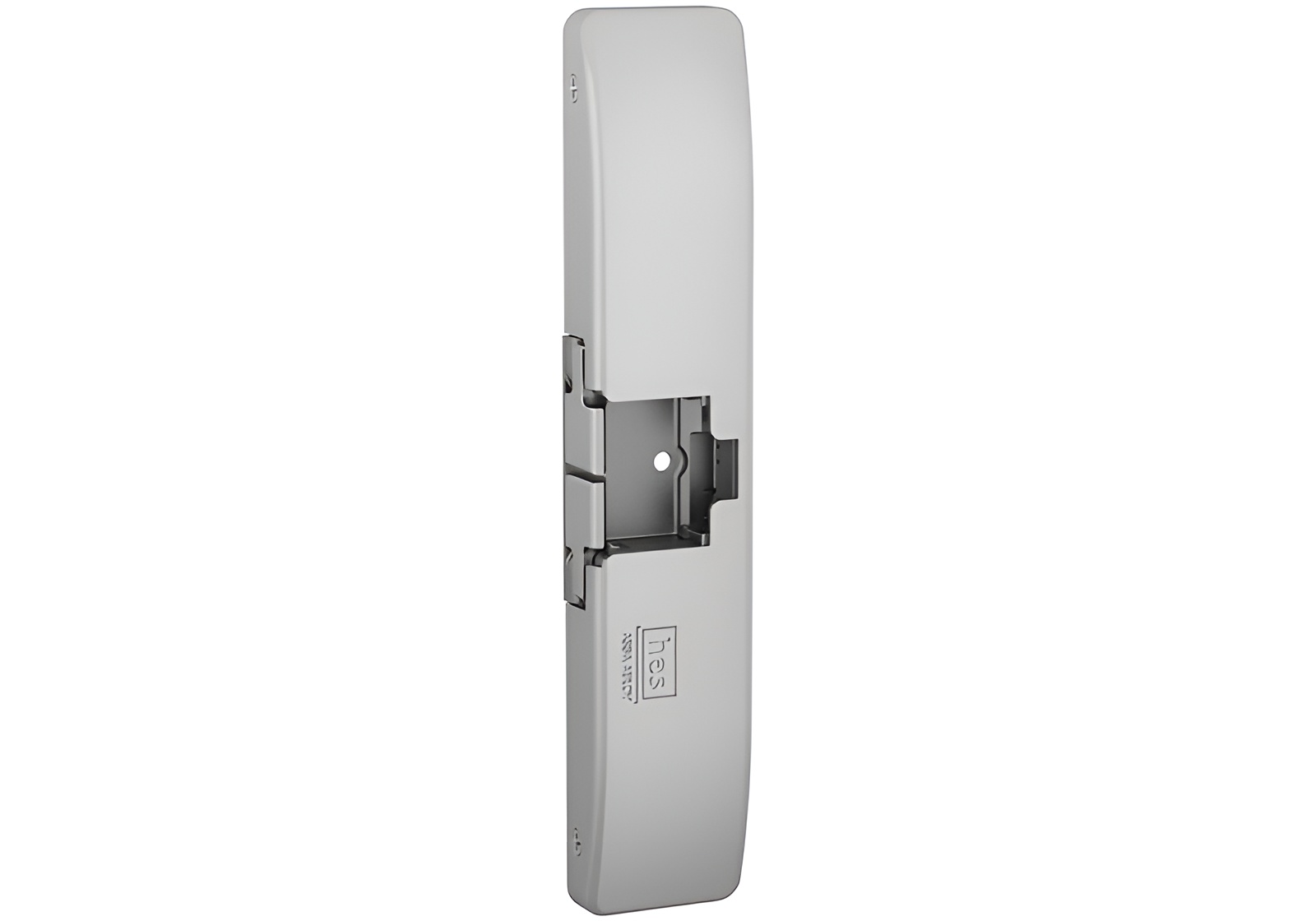

The 9700 Series is a heavy duty, surface mounted electric strike designed to accommodate Corbin Russwin SecureBolt and Yale SquareBolt exit devices. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.
Attributes
Access Type: Electric Strike
Adjustability: Horizontal
Alternate Codes: 9700-630-LBM, 9700630LBM
Amp Draw: .45 @ 12V .25 @ 24V
Application: Squarebolt Rim Panic Device
Baa Qualified: Yes
Base Material: Stainless Steel
Category: Access Control, Electric Strikes
Commercial Residential: Commercial
Configuration: Centered
Country of Origin: Usa
Country of origin: USA
Door And Lock Sensor: Latch Monitor
Door Application: Electric Strikes
Dynamic Strength (ft-lbs): 120
Electric Strike Compatibility: Corbin Russwin SecureBolt® Rim Exit, Yale SquareBolt® Rim Exit
Electric Strike Faceplate Size: 1-3/4" x 9" x 3/4"
Electric Strike Series: 9700
Endurance (cycles): 1,000,000
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 630 Satin stainless steel
Finish Code: US32D
Finish Color: Satin, Satin Stainless Steel
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Rim Exit Devices
Frame Application: Metal or Wood
Frame Material: Metal|Wood
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Holding Force: 2000
Installation: Commercial
Keeper Size: SK
Latchbolt Accommodation: 3/4"
Limited Warranty: 5 Years
Lock Type: Exit Device
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Monitoring|Latchbolt Strike Monitor
Operating Voltage: 12VDC/24VDC
Origin: USA
Pack Height: 2.25"
Pack Length: 10.5"
Pack Qty: 1
Pack Volume: 79.73 in³
Pack Width: 3.38"
Series: 9700 Series Electric Strikes
Shim Type: NA
Ship Weight: 1.8 lbs.
Strike Body Depth (in): 0.75
Strike Body Height (in): 9
Subtype: Electric Strike
Surface Mounting: No cutting required
Switch Type: LBM
Tamper Resistant: Yes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 740090040790
Use With: Rim Exit Devices
Voltage: 12/24
Voltage Type: Field Selectable, VDC - Direct
Warranty: SecuriCare five-year, no fault, no questions asked warranty
