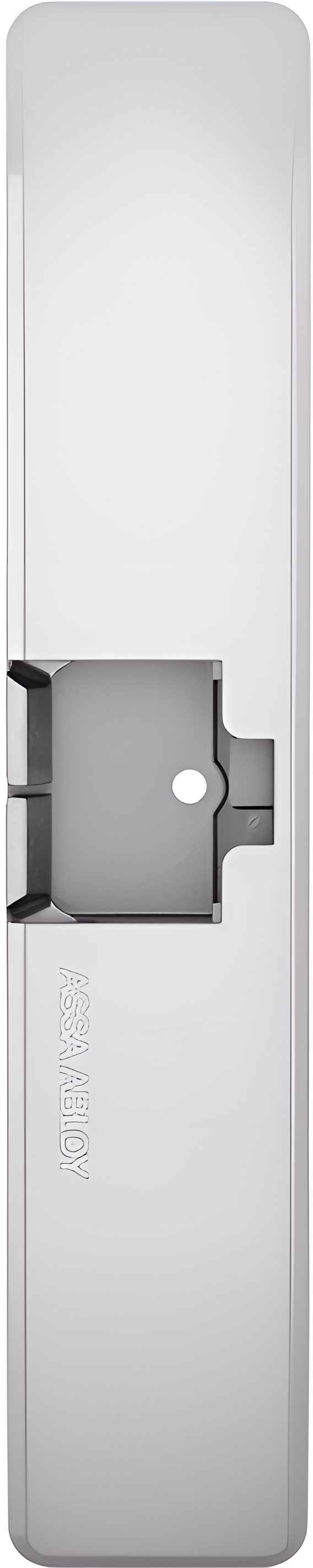

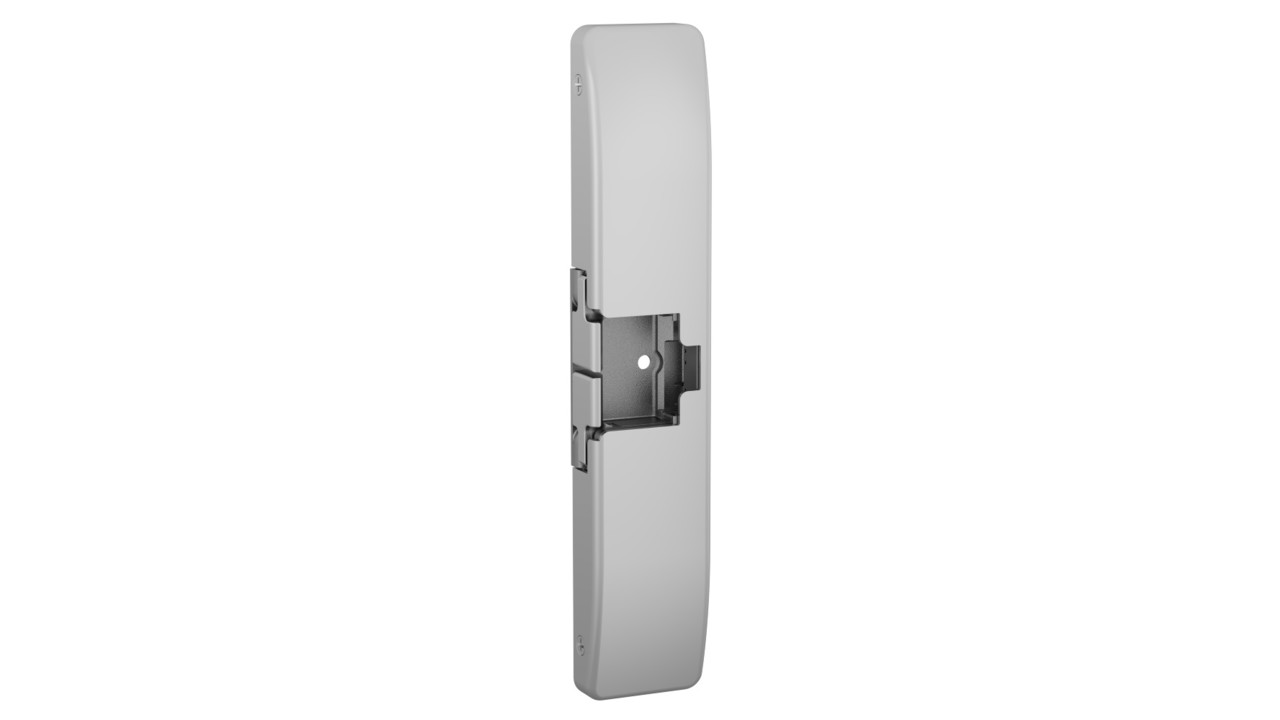

Assa Abloy Electronic Security Hardware - Hes 9700630 12VDC / 24VDC Electric Strike Body with Field Selectable Fail Safe or Fail Secure Satin Stainless Steel Finish
Attributes
Manufacturer surcharge: $ 0.0
Access Type: Electric Strike
Adjustability: Horizontal
Alternate Codes: 9700-630, 9700630
Amp Draw: .45 @ 12V .25 @ 24V
Application: Squarebolt Rim Panic Device
Baa Qualified: Yes
Base Material: Stainless Steel
Category: Access Control, Electric Strikes
Clazz: HS
Color: Satin Stainless Steel
Commercial Residential: Commercial
Configuration: Centered
Country of Origin: Usa
Country of origin: USA
Door Application: Electric Strikes
Dynamic Strength (ft-lbs): 120
Electric Strike Compatibility: Corbin Russwin SecureBolt® Rim Exit, Yale SquareBolt® Rim Exit
Electric Strike Faceplate Size: 1-3/4" x 9" x 3/4"
Electric Strike Series: 9700
Endurance (cycles): 1,000,000
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 630 Satin stainless steel
Finish Code: US32D
Finish Color: Satin, Satin Stainless Steel
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: Rim Exit Devices
Frame Application: Metal or Wood
Frame Material: Metal|Wood
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Holding Force: 2000
Installation: Commercial
Item Class Description: 12VDC / 24VDC Electric Strike Body with Field Selectable Fail Safe or Fail Secure
Item Type Keyword: Body
Keeper Size: SK
Latchbolt Accommodation: 3/4"
Limited Warranty: 5 Years
Lock Type: Exit Device
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Monitoring|Latchbolt Strike Monitor
Number Of Inners: 1
Operating Voltage: 12VDC/24VDC
Origin: USA
Pack Height: 2.25"
Pack Length: 10.5"
Pack Qty: 1
Pack Volume: 79.73 in³
Pack Width: 3.38"
Series: 9700 Series
Shim Type: NA
Ship Weight: 1.8 lbs.
Strike Body Depth (in): 0.75
Strike Body Height (in): 9
Subtype: Electric Strikes
Surface Mounting: No cutting required
Switch Type: None
Tamper Resistant: Yes
Type: Electronics
Unit of Measure: Each
Upc: 740090016283
Use With: Rim Exit Devices
Voltage: 12/24
Voltage Type: Field Selectable, VDC - Direct
Warranty: SecuriCare five-year, no fault, no questions asked warranty
