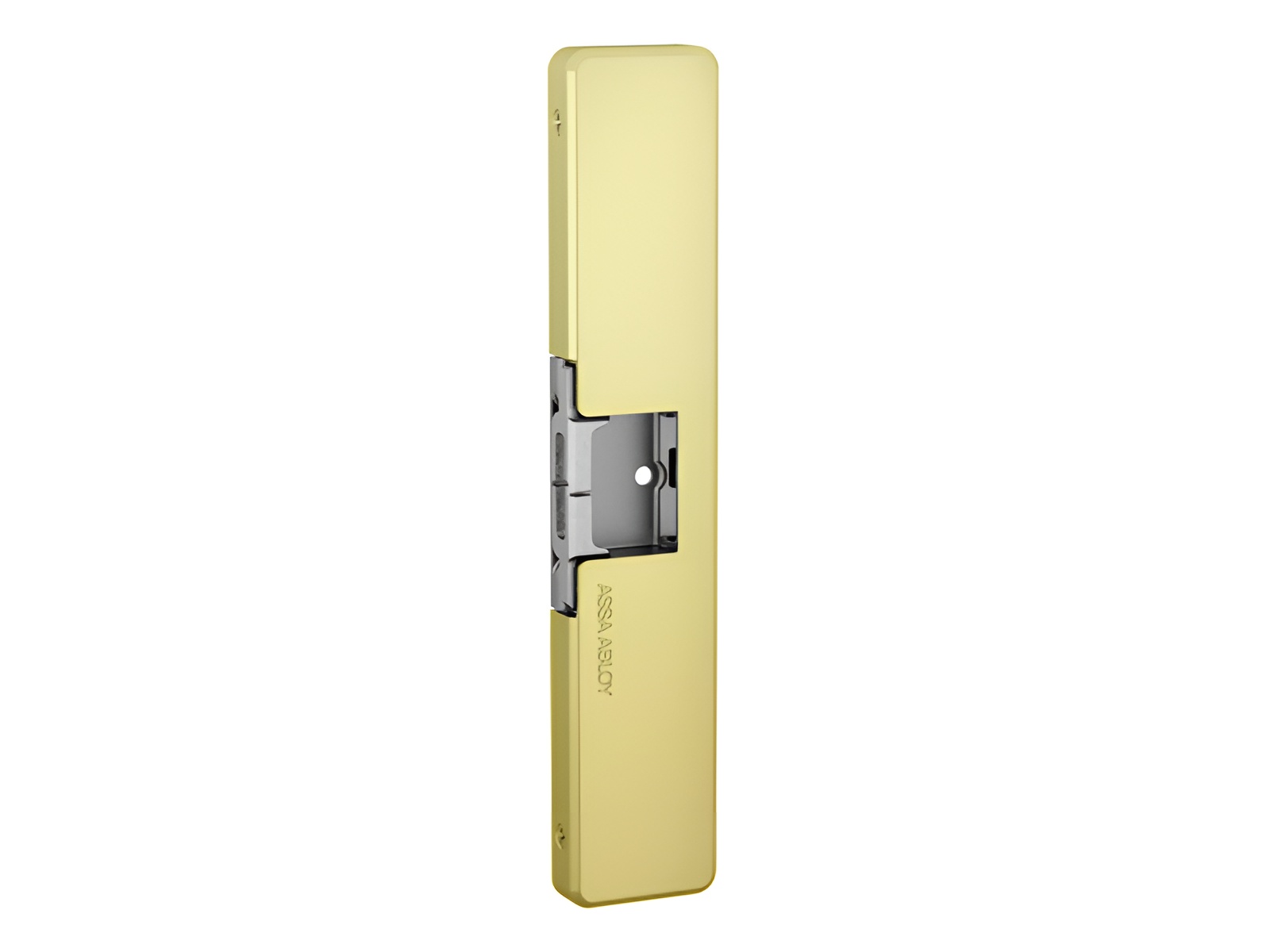

The HES 9800 Series Electric Strike exceeds Grade 1 standards for strength and performance. All functions are performed within the 1/2" thick strike body, which is protected by a sleek stainless steel cover to conceal the mounting screws and provide the most aesthetic appearance. All while being field selectable for fail secure or fail safe operation, and dual voltage, 12 or 24 VDC. 1/16" and 1/8" spacer plates are provided to accommodate varying door gaps. Simply place the electric strike on the surface of the frame, align it with the Starwheel or Interlocking latchbolt, and install.
Attributes
Adjustability: Horizontal
Amp Draw: .45 @ 12V .25 @ 24V
Commercial Residential: Commercial
Dynamic Strength (ft-lbs): 70
Endurance (cycles): 1,000,000
Faceplate Depth: 1/2 In.
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 605 Bright Brass, clear coated
Finish Description: Bright Brass
Finish Family: Polished Brass
For Use With: Rim Exit Devices
Frame Application: Metal or Wood
Frame Material: Aluminum|Metal|Wood
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Holding Force: 1500
Installation: Commercial
Keeper Size: Starwheel Keeper
Latchbolt Accommodation: Starwheel/Interlock
Limited Warranty: 5 Years
Lock Type: Exit Device
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Monitoring|Latchbolt Strike Monitor
Operating Voltage: 12VDC/24VDC
Pack Height: 2.25"
Pack Length: 10.5"
Pack Qty: 1
Pack Volume: 79.73 in³
Pack Width: 3.38"
Series: 9800 Series Electric Strikes
Shim Type: NA
Ship Weight: 1.8 lbs.
Strike Body Depth (in): 0.5625
Strike Body Height (in): 9
Subtype: Electric Strike
Surface Mounting: No cutting required
Tamper Resistant: Yes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Use With: Rim Exit Devices
Voltage: 12/24
Warranty: SecuriCare five-year, no fault, no questions asked warranty
